GOODMAN ACB-48 Goodman ACB-48 Wall Mount Bracket for Condensers

Product Description

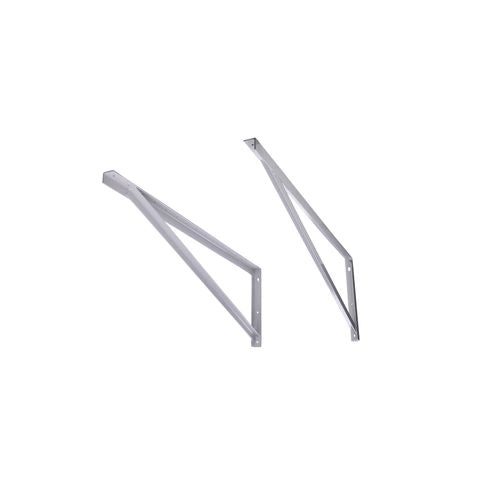

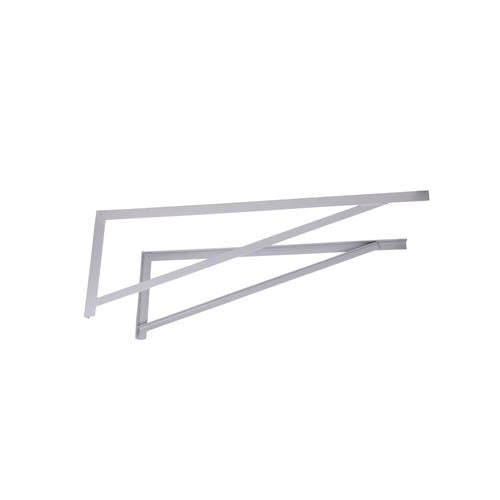

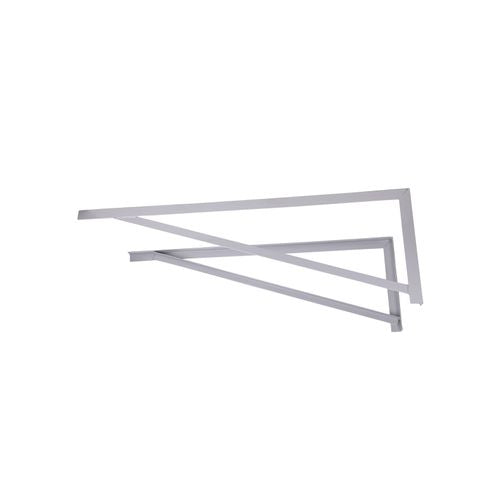

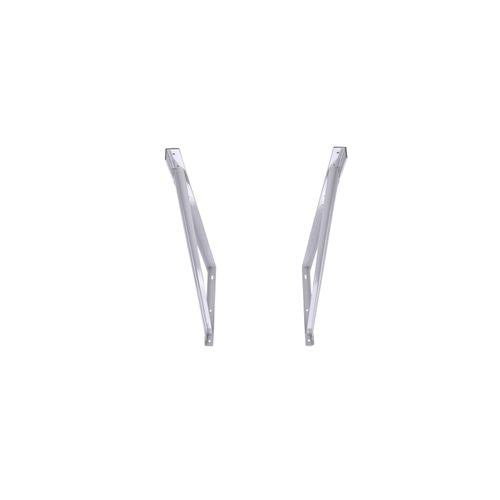

The Goodman ACB-48 is a wall mount bracket designed for outdoor condensers and heat pumps. This product is made from ten gauge powder-coated steel, ensuring durability. It is suitable for installation on various wall types such as concrete, siding, block, brick, or stucco. The bracket includes pre-punched holes for straightforward installation and equipment mounting. The ACB line has received approval from the Florida Building Commission and is appropriate for use in High Velocity Hurricane Zones.

• Constructed from ten gauge steel with a powder-coated finish
• Features pre-punched holes for easy mounting
• Approved by the Florida Building Commission and HVHZ approved

Product Highlights

The Goodman ACB-48 provides reliable support for outdoor units, ensuring they are securely mounted.

Product Information

Standard Information

• Application: Standard Condensers
• Base / Mount: Wall

Technical Specifications

• Load Capacity: 600 lb. per pair
• Number of Arms: 2
• Arm or Shelf Length: 48 inches
• Mounting Method: Concrete, Siding, Block, Brick, Stucco
• Ducted or Ductless: Ducted
• Material: Steel, 10 GA
• Finish: Powder-coated grey
• Weight: 9.2 lbs
• Dimensions: 30 x 16 x 2 inches
