Goodman ac9s960804cn furnace 80mbh 4t

Product Description

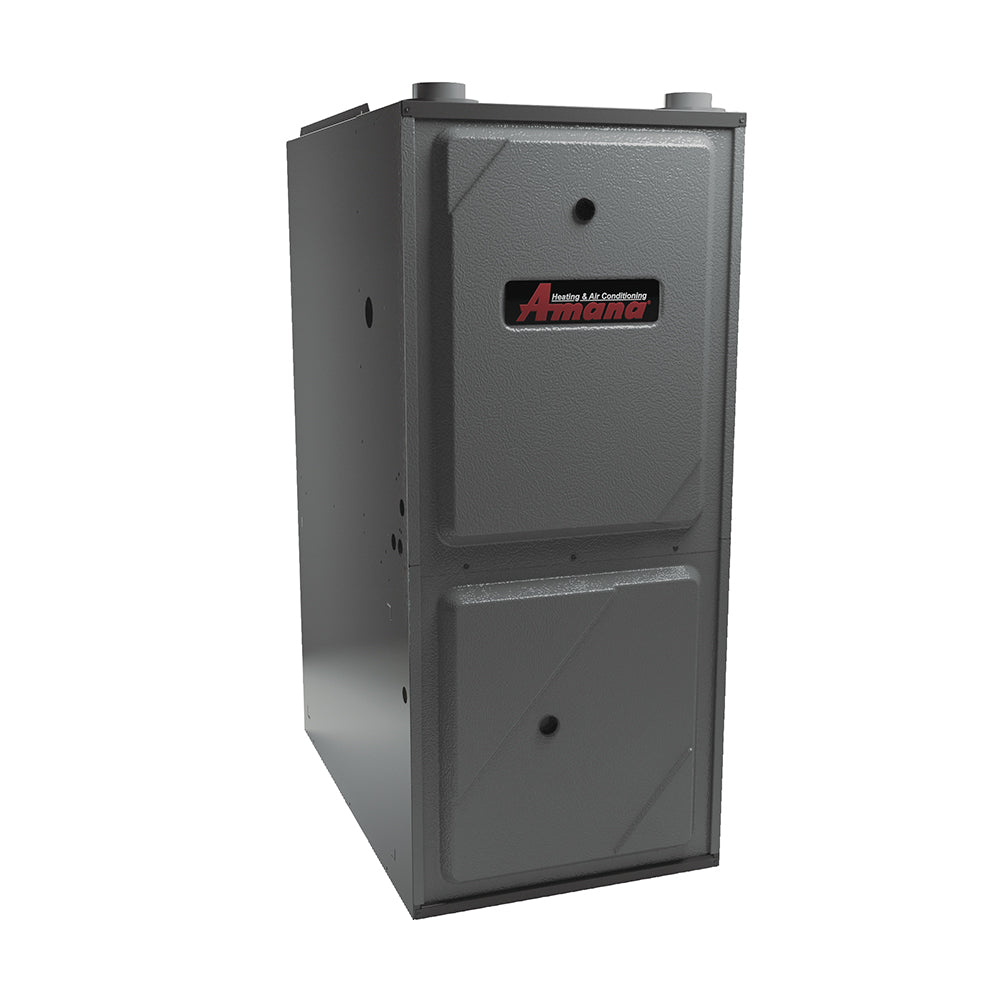

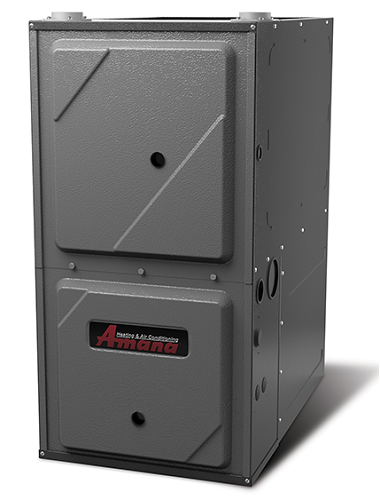

The GOODMAN AC9S960804CN is an Amana AC9S96 Series Gas Furnace with 96% AFUE. This single-stage, multi-speed ECM gas furnace features a heavy-duty stainless-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. It operates with a single-speed inducer draft blower.

• Heavy-duty stainless-steel tubular heat exchanger
• Stainless-steel sloped secondary heat exchanger
• Silicon Nitride igniter
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor with continuous fan speed

Product Highlights

This furnace provides energy-efficient and quiet circulation, with a self-diagnostic control board and provisions for electronic air cleaner and humidifier.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: AC9S960804CN

Technical Specifications

• AFUE: Up to 96%
• BTUH/H: 80,000
• Type: Gas Furnace
• Stages: Single-Stage
• Blower Motor: Multi-Speed ECM
• NOx: Non-NOx
• Flow: Downflow/Horizontal
