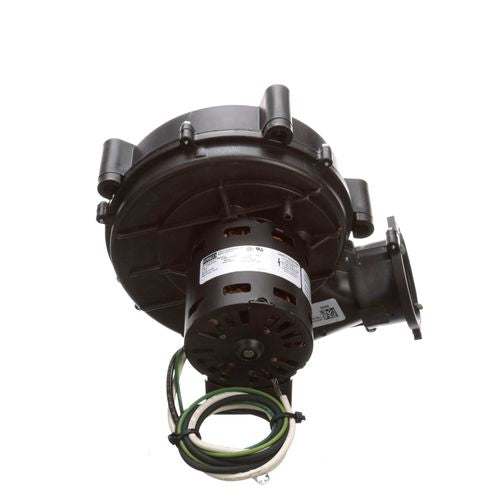

Goodman a158 Draft Inducer Motor 1/25 Hp 115V Psc

Product Description

The GOODMAN a158 is a draft inducer motor rated at 1/25 horsepower and designed to move combustion gases through the heat exchanger and flue system of a gas-fired furnace. Running on 115 volts at 60 hertz, this single-speed PSC motor spins at 3450 RPM and draws 0.7 amps. The sleeve bearing construction and open enclosure make it a straightforward OEM-style replacement for technicians servicing residential forced-air heating equipment. Installation is typically performed by a licensed HVAC technician as part of a furnace inducer assembly swap or combustion system repair.

This motor is suited for residential gas furnace applications where the draft inducer assembly requires a motor replacement. It is commonly installed in induced-draft furnace configurations where negative pressure is created ahead of the burner to ensure proper combustion airflow and venting. The 3450 RPM operating speed and low amp draw make it appropriate for the inducer blower wheel loads typical in residential heating systems.

Key Features

• 1/25 HP output for low-load inducer blower wheel applications
• 115-volt, 60-hertz single-phase PSC motor type
• 3450 RPM operating speed for consistent draft performance
• 0.7-amp current draw for low electrical load on furnace control circuit
• Sleeve bearing construction for quiet, low-maintenance operation
• UL Listed for compliance with standard safety requirements

Compatibility

Designed as an OEM-style replacement draft inducer motor for residential gas furnace inducer assemblies requiring a 115-volt, 1/25 HP PSC motor.

Installation Notes

This motor should be installed by a licensed HVAC technician. Shut off power to the furnace at the disconnect and breaker before beginning any work on the inducer assembly. Verify that gas supply is off and the system has cooled before handling flue-side components. Follow all applicable local codes and the furnace manufacturer service instructions when reassembling the inducer housing and making electrical connections.

Technical Specifications

• Horsepower: 1/25 HP
• Voltage: 115 volts
• Amperage: 0.7 amps
• Frequency: 60 hertz
• RPM: 3450
• Motor Type: PSC
• Bearing Type: Sleeve
• Enclosure: Open
• Insulation Class: B
• UL Listed: Yes

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: a158
