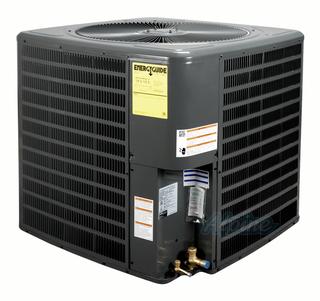

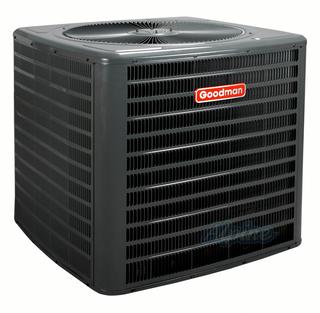

GOODMAN 6016 Heat Pump 5 Ton 16 SEER

Product Description

The Goodman 6016 is a heat pump designed for residential use. This unit features a single-speed PSC condenser fan motor and a high-efficiency scroll compressor for optimal cooling and heating performance. It comes with a bi-flow liquid-line filter drier and a suction-line accumulator to enhance reliability and efficiency.

• Features a high-efficiency scroll compressor.
• Includes factory-installed filter drier and suction-line accumulator.
• Constructed with a copper tube and enhanced aluminum fin coil.

Product Highlights

This heat pump is suitable for various climates and is designed to deliver reliable heating and cooling performance.

Product Information

Standard Information

• Product Type: Heat Pump Unit
• Country of Origin: United States

Technical Specifications

• Refrigerant Compatibility: R-410A
• Compressor Stages: Single Stage
• SEER: 14.5 - 16.0 SEER
• Energy Efficiency Ratio: 11.3 - 12.5 EER
• Heating Seasonal Performance Factor: 8.5 - 9.0 HSPF
• Base Heating Capacity: 60000 BTU
• Total Cooling Capacity: 5 Ton(s)
• Maximum Heating Capacity: 60000 BTU
• Maximum Overcurrent Protection (Breaker): 60 Amps
• Liquid Line Size (OD): 3/8 Inches
• Suction Line Size (OD): 7/8 Inches
• Width: 35.5 Inches
• Depth: 35.5 Inches
• Height: 40 Inches
• Product Weight: 306 lbs
• Shipping Weight: 326 lbs
• Compressor Warranty: 10 Years With Online Registration
• Parts Warranty: 10 Years With Online Registration
• TXV Required: Yes
• Low Pressure Safety Switch: Yes
