Goodman - 5.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

Features

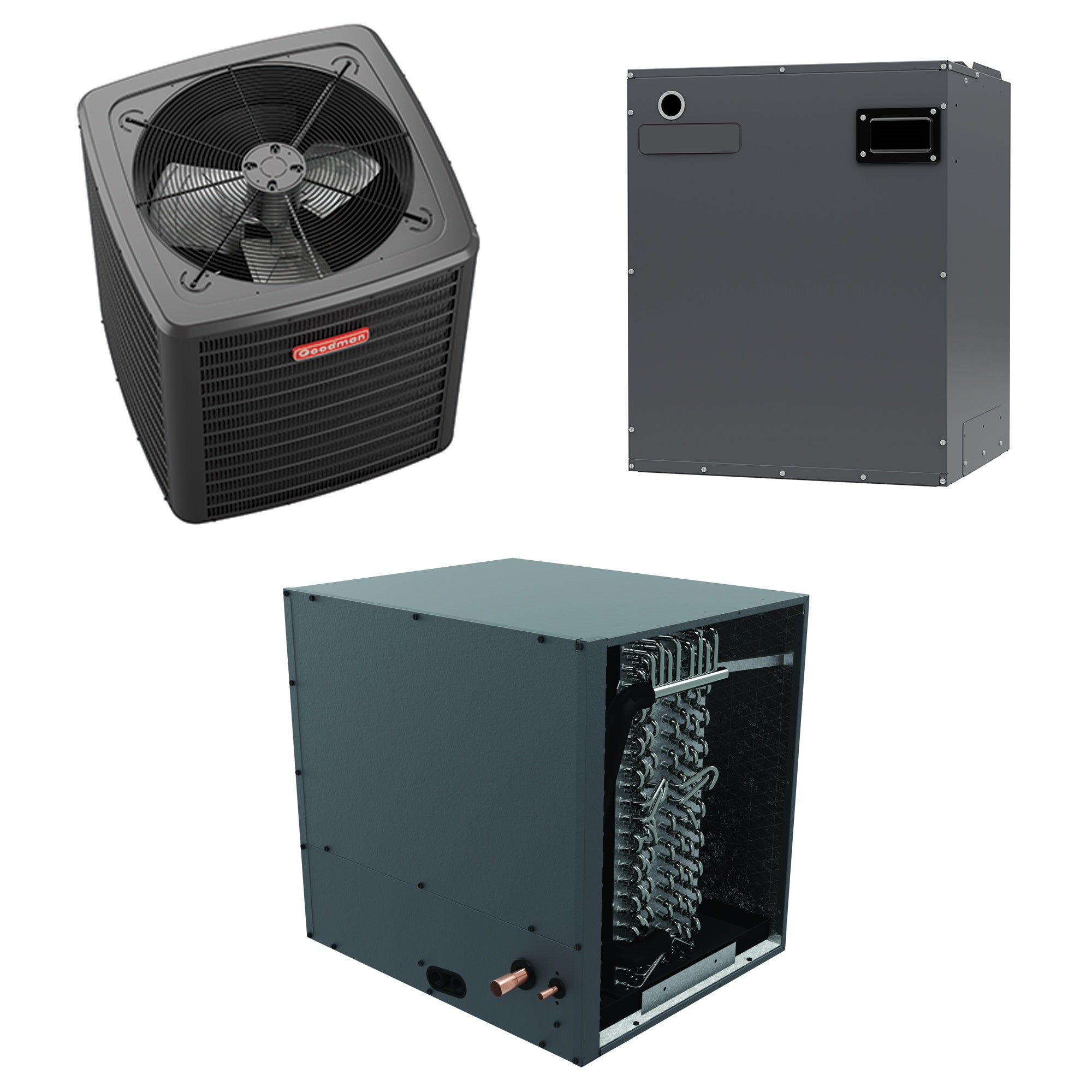

The Goodman GSZB406010 MBVC2001AA-1 CHPT4860D4 Heat Pump Air Handler System is a high-efficiency central air solution designed for residential HVAC upgrades. The system includes a GSZB406010 heat pump, an MBVC2001AA-1 modular blower with variable-speed ECM motor, and a CHPT cased coil. This combination ensures energy-efficient air circulation and durability.

This bundle is designed with advanced technology and state-of-the-art features, making it an excellent choice for homes aiming to reduce energy costs.

Each component in this system contributes to optimal performance and efficiency:

• Modular design for easy integration.
• Variable-speed blower motor adapts to airflow demands, saving energy.
• Compatibility with ComfortBridge™ communicating controls.
• All-aluminum evaporator coil for maximum heat transfer.
• Smartshift™ technology for reliable defrosting.
• Heavy-gauge galvanized-steel cabinet for durability.

Product Highlights

Goodman’s GSZB406010 MBVC2001AA-1 CHPT4860D4 bundle system offers high efficiency and durability. The variable-speed ECM motor ensures optimal airflow, and the ComfortBridge™ control simplifies installation and maintenance. The systems modular design enhances flexibility and ease of installation. The all-aluminum coil and Smartshift™ technology contribute to reliable and efficient performance.

Product Information

Goodman GSZB406010 Heat Pump

The Goodman GSZB406010 is a 5.0-ton heat pump that operates in a single stage with R-410A refrigerant. It is designed for outdoor installation and has a maximum cooling and heating capacity of 60,000 BTU. The heat pump features Smartshift™ technology for reliable defrosting and a factory-installed high-capacity muffler to reduce noise and vibrations.

• Capacity: 5.0 Tons
• Cooling BTU: 60000
• Heating Capacity: 60,000 BTU
• Sound Level: 75 dB

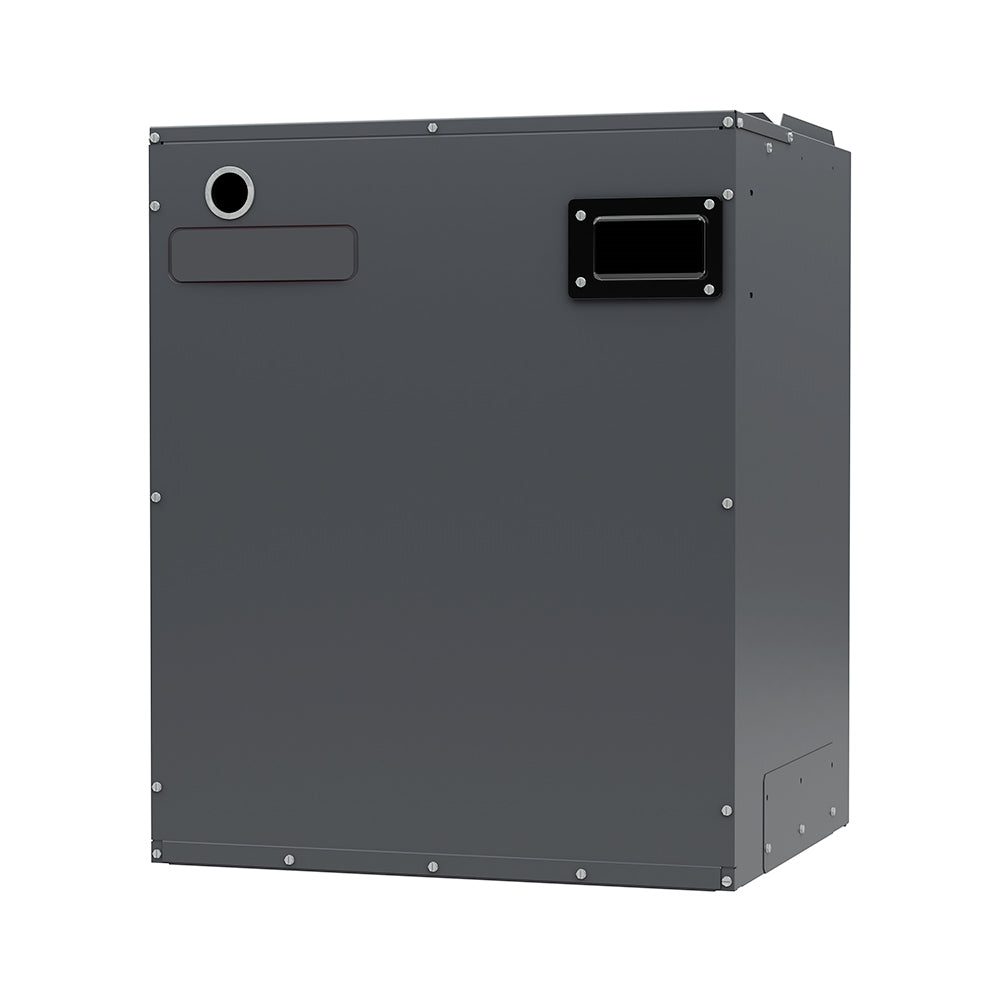

Goodman MBVC2001AA-1 Air Handler

The MBVC2001AA-1 is a modular blower designed to handle up to 5.0 tons. It features a variable-speed ECM motor that adjusts airflow based on the system’s needs, ensuring energy-efficient operation. The system can be installed in multiple positions, making it versatile for various home layouts.

• Maximum Air Flow: 2000 CFM
• Voltage: 208/230 Volts
• Breaker Size: 15 Amps
• Weight: 86 Pounds

Goodman CHPT4860D4 Cased Coil

The CHPT4860D4 is a horizontal A cased coil designed for 3.5 to 5.0 tons. It features an all-aluminum design with fins and grooved tubes to maximize heat transfer. The coil includes a factory-installed thermostatic expansion valve for efficient refrigerant flow and a UV-resistant drain pan for condensate management.

• Cooling Capacity: 60,000 BTU
• Width: 24.5 Inches
• Height: 24.5 Inches
• Weight: 66 Pounds
