Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow
Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow
Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow
Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow

Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSZB404810 GM9S800804CX CAPT4961C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,028.00
$5,028.00

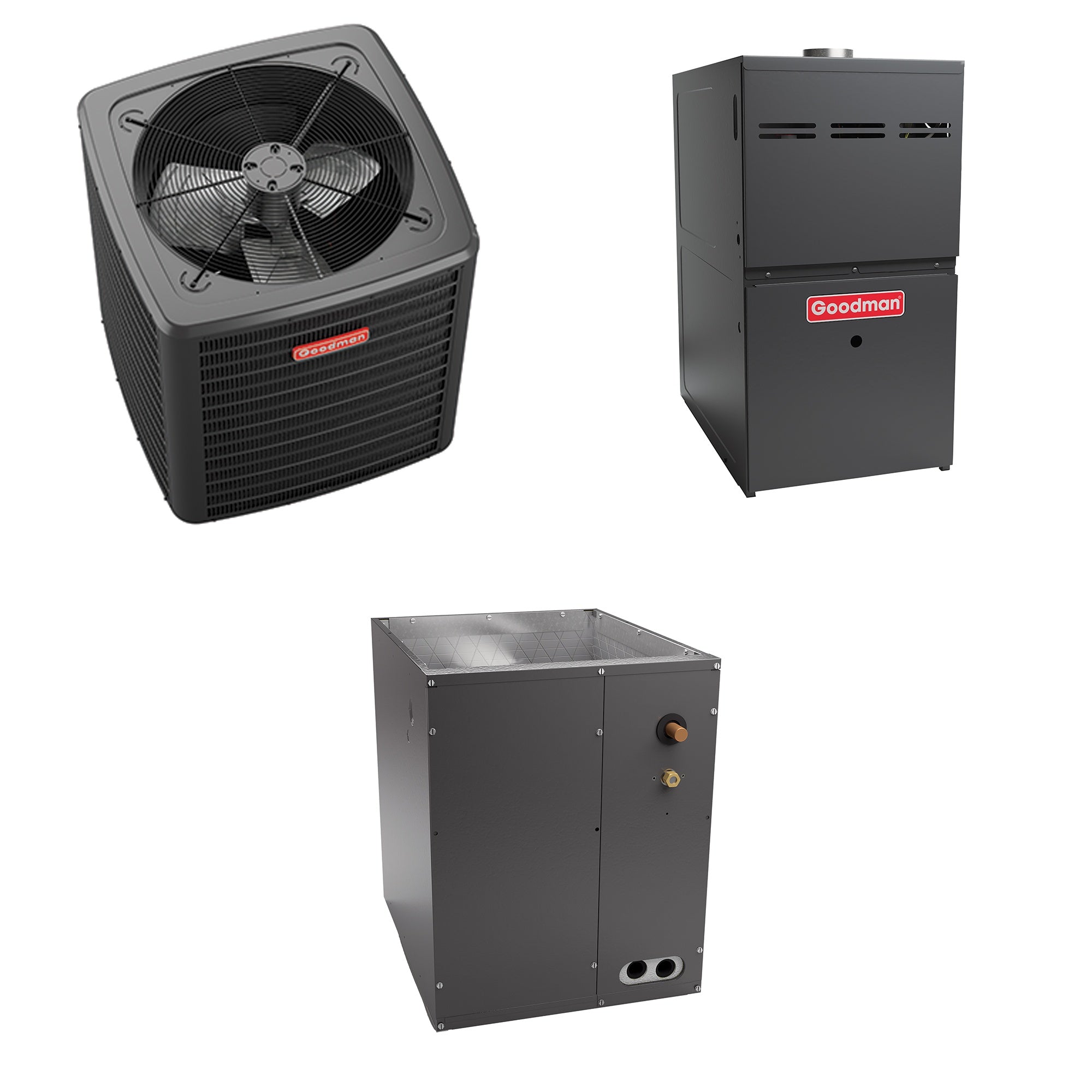

Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GM9S800804CX Gas Furnace 80k BTU 80% AFUE Quantity: 1
Goodman CAPT4961C4 CAPT Series 5 Ton - Upflow/Downflow - Aluminum - Cased - Coil Quantity: 1
Manuals:

Specification Highlights

AFUE
80 %
EER2
12.0
HSPF2
7.5

View More

LTL Delivery

This product weighs 503 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB404810, GM9S800804CX, and CAPT4961C4 bundle system brings you a comprehensive HVAC solution designed for both heating and cooling. This bundle consists of the GSZB4 heat pump, GM9S80 gas furnace, and a CAPT cased evaporator coil. These components, each crafted for top-notch ease-of-installation and durability, ensure effective performance across a variety of climates and settings.

Features of the Goodman GSZB404810 Heat Pump

The Goodman GSZB404810 heat pump is designed to provide energy-efficient heating and cooling using R-410A refrigerant. It incorporates an advanced all-aluminum coil, enhancing heat transfer capabilities.

  • Energy-efficient compressor
  • Smartshift™ technology for smooth defrost transitions
  • High and low-pressure switches for safety
  • Removable grille-style top for easy maintenance

Features of the Goodman GM9S800804CX Gas Furnace

The GM9S800804CX gas furnace from Goodman delivers powerful heating with an aluminized-steel tubular heat exchanger.

  • Multi-speed ECM blower motor
  • Quiet operation with low sound levels
  • Self-diagnostic control board
  • 10-year limited parts warranty when registered

Features of the Goodman CAPT4961C4 Evaporator Coil

The CAPT4961C4 air conditioner evaporator coil is designed for efficient cooling with a factory-installed TXV.

  • Foil-faced insulation for condensate management
  • Rust-resistant thermoplastic drain pan
  • All-aluminum construction
  • Upflow/downflow configurations

Product Highlights

The Goodman GSZB404810, GM9S800804CX, and CAPT4961C4 bundle system offers a robust solution for home heating and cooling. The components are designed to work seamlessly together, providing reliable and efficient performance. With features like Smartshift™ technology, multi-speed blower motors, and self-diagnostic control boards, this bundle is built for ease of use and durability.

Product Information

Standard Information

  • Type: Heat Pump and Furnace Bundle
  • Product Category: Furnace & Heat Pump Package
  • Operating Mode: Heating and Cooling
  • Refrigerant Type: R-410A
Specifications
Overview
AFUE
80 %
EER2
12.0
HSPF2
7.5
SEER2
14.3
Weight
477 Pounds
Shipping Weight
507 Pounds
Cooling Capacity
48000 BTU
Heating BTU
80000
Maximum Air Flow
1600 CFM
Type
Heat Pump Condenser
Product Line
GSZB4
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Height
36 7/16 Inches
Width
35 1/2 Inches
Depth
35 1/2 Inches
Compressor Stages
Single Stage
Installation Location
Outdoor
Maximum Sound Level
74 dB
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
Energy Star Listed
No
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Product Line
GM9S80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Single Stage
Blower Motor Type
ECM Multi-Speed
Gas Conversion Kit
Available
Portability
Yes
AFUE
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Maximum Air Flow
1600 CFM
Low NOx Emissions
Yes
Ultra Low NOx Emissions
No
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.45 Amps
Recommended Breaker Size
15 Amps
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
132 Pounds
Shipping Weight
132 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207254788
Product Line
CAPT
Capacity
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
