GOODMAN
Brand: GOODMAN
SKU: GSZB404810 GC9C800805CX CAPT4961C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,003.52
$5,003.52
Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GC9C800805CX Furnace, 80% 80,000 Down/Horz 2-Stage, 9SPD ECM Quantity: 1
Goodman CAPT4961C4 CAPT Series 5 Ton - Upflow/Downflow - Aluminum - Cased - Coil Quantity: 1
Manuals:

Specification Highlights

Brand
Goodman
MPN
GSZB404810 GC9C800805CX CAPT4961C4
Performance
Heating and Cooling

View More

LTL Delivery

This product weighs 500 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Bundle Overview

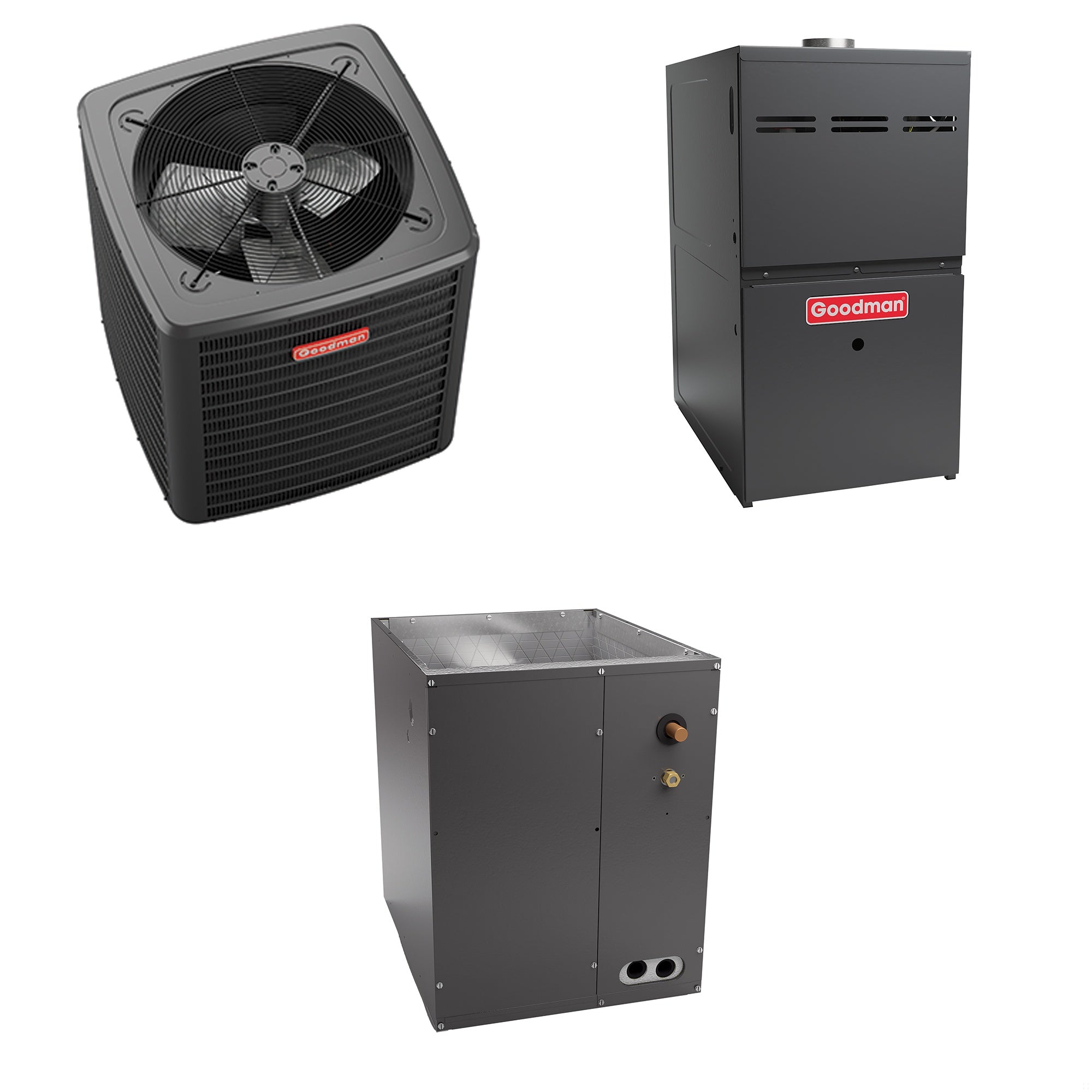

The Goodman GSZB404810 GC9C800805CX CAPT4961C4 system is a comprehensive package designed to meet your home HVAC needs. This bundle includes the GSZB4 heat pump, GC9C80 furnace, and CAPT evaporator coil, all built with a focus on efficient installation and long-term durability.

  • Contains GSZB4 air conditioner, GC9C80 furnace, and CAPT evaporator coil
  • Designed for both heating and cooling
  • Features advanced components for efficient heat transfer
  • Includes a factory-installed internal thermostatic expansion valve

Product Highlights

Designed for reliability and ease of use, this system offers durable construction and advanced features for long-lasting comfort.

Product Details

Goodman GSZB404810

The Goodman GSZB404810 is a 4.0-ton heat pump that uses R-410A refrigerant and offers a SEER2 rating of 14.3. It features Smartshift technology for quiet and smooth defrost transitions and an energy-efficient compressor for reliable refrigerant flow.

  • Time-delay defrost technology
  • Factory-installed suction-line accumulator
  • Includes a high-capacity muffler
  • Designed for outdoor installation

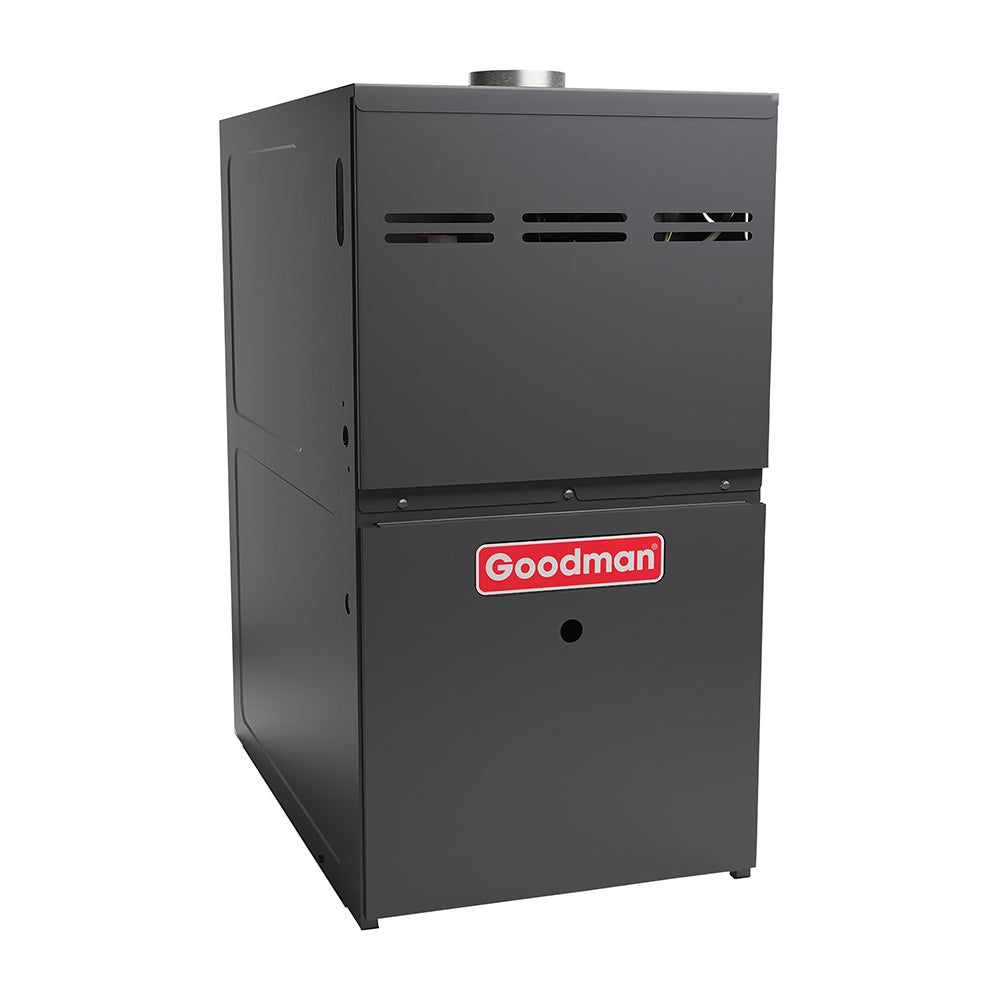

Goodman GC9C800805CX

The Goodman GC9C800805CX is an 80k BTU gas furnace with an AFUE rating of 80%. The furnace includes a self-diagnostic control board and a multi-speed ECM motor for efficient temperature control.

  • Reliable tubular heat exchanger
  • Low sound levels due to selected components
  • Stores last diagnostic codes in memory
  • Heavy-gauge galvanized steel cabinet

Goodman CAPT4961C4

The Goodman CAPT4961C4 is a cased evaporator coil designed for 4.0 to 5.0-ton capacities. It features all-aluminum construction and an internal thermostatic expansion valve for efficient operation.

  • Foil-faced insulation to inhibit condensate formation
  • Rust-resistant thermoplastic drain pan
  • Designed for upflow and downflow configurations
  • Maximizes surface area for efficient heat transfer
Specifications
Overview
Brand
Goodman
MPN
GSZB404810 GC9C800805CX CAPT4961C4
Performance
Heating and Cooling
DOE Regional Compliance
Nationwide (Except CA)
AFUE
80%
Cooling Capacity
48000 BTU
Nominal Cooling Capacity
48000 BTU
Heating BTU
80000
Maximum Air Flow
2000 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Product Weight
474 Pounds
Shipping Weight
504 Pounds
Heat Pump Model
GSZB404810
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 7/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
272 Pounds
Shipping Weight
292 Pounds
Energy Star Listed
No
ETL Listed
Yes
ISO Certified
Yes
Compressor Warranty
Limited* 10 Years
Gas Furnace Model
GC9C800805CX
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Multi-Speed
Configuration
Downflow/Horizontal
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Minimum Circuit Ampacity
15.32 Amps
Recommended Breaker Size
20 Amps
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
129 Pounds
Shipping Weight
129 Pounds
AHRI Certified
Yes
ISO Certified
Yes
Heat Exchanger Warranty
Lifetime Years
Evaporator Coil Model
CAPT4961C4
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
ETL Listed
Yes
AHRI Certified
Yes
