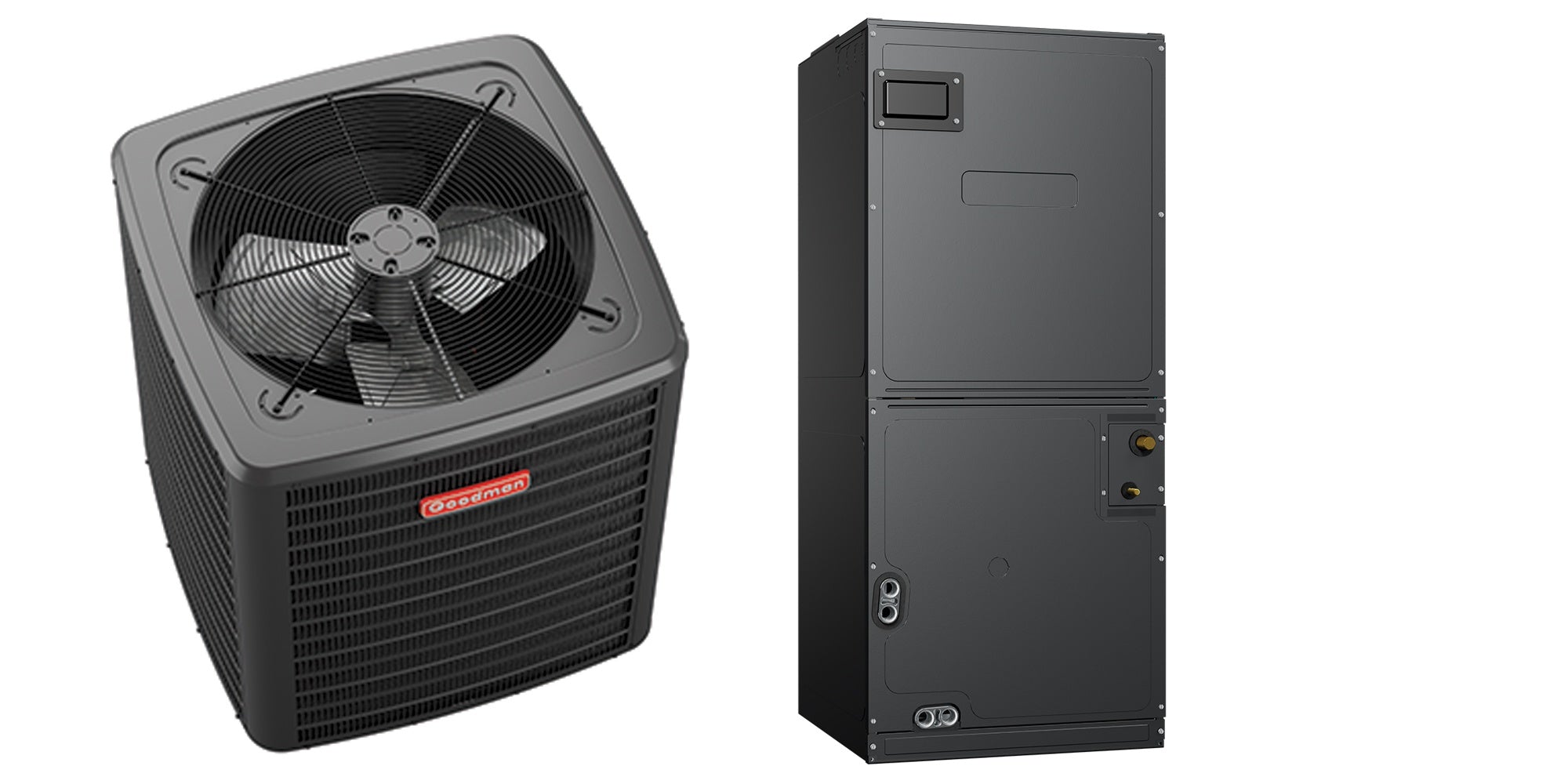

Goodman - 4.0 Ton Cooling - 48k BTU/Hr Heating - Heat Pump + Air Handler System - 14.5 SEER2 - 7.5 HSPF2
Goodman - 4.0 Ton Cooling - 48k BTU/Hr Heating - Heat Pump + Air Handler System - 14.5 SEER2 - 7.5 HSPF2
Goodman - 4.0 Ton Cooling - 48k BTU/Hr Heating - Heat Pump + Air Handler System - 14.5 SEER2 - 7.5 HSPF2

Goodman - 4.0 Ton Cooling - 48k BTU/Hr Heating - Heat Pump + Air Handler System - 14.5 SEER2 - 7.5 HSPF2

GOODMAN
Brand: GOODMAN
SKU: GSZB404810 AMST48CU1400
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,506.00
$4,506.00
Bundle Includes

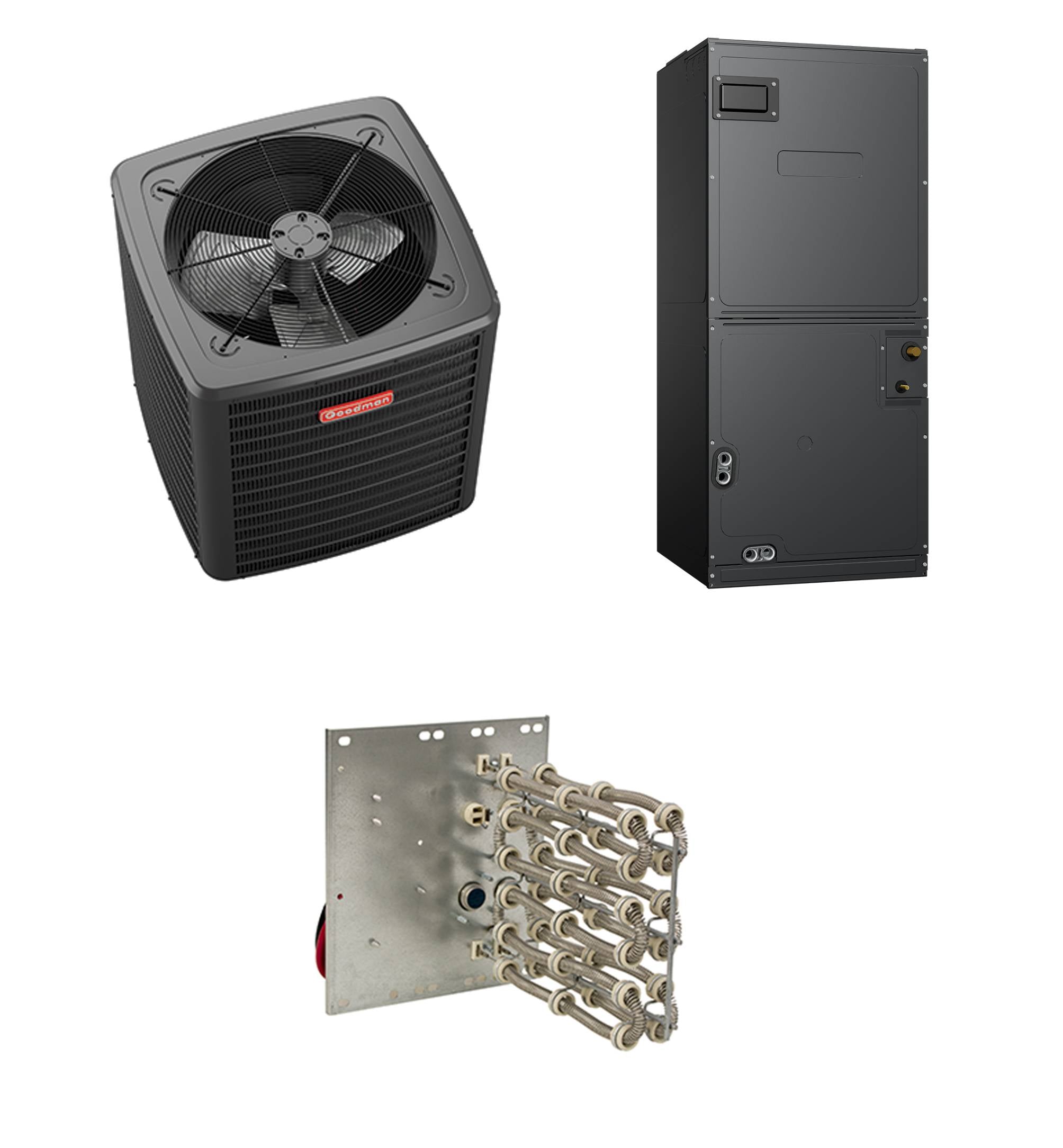

Goodman - 4.0 Ton Cooling - 48k BTU/Hr Heating - Heat Pump + Air Handler System - 14.5 SEER2 - 7.5 HSPF2 + Electric Heat Coil Quantity: 1
Manuals:

Specification Highlights

Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 451 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Overview for Goodman GSZB404810 AMST48CU1400

Goodman central air package is an optimal way to upgrade your homes HVAC system. The key component, the GSZB404810 heat pump, offers both heating and cooling for your entire home. Goodman heat pumps come with aluminum fins with increased surface area to ensure maximum efficiency. Coupled with a multi-speed air handler, specifically chosen to work with the heat pump, multiple air speed settings deliver efficient and economic comfort throughout the year.

  • Factory-installed internal thermostatic expansion valve for streamlined installation and ideal refrigerant flow.
  • Direct-drive, multi-speed blower motor for efficient circulation.
  • All-aluminum evaporator coils for optimized heat transfer.
  • SmartFrame™ sub-structure for enhanced accessibility.
  • DecaBDE-free thermoplastic drain pan with secondary drain connections for smooth running.

Goodman GSZB404810 Heat Pump

The heart of the system, the Goodman GSZB404810 heat pump, features aluminum fins and copper tubing for efficient heat transfer. The condenser coil maximizes surface area and ensures high efficiency. The energy-efficient compressor in the heat pump and Smartshift™ technology for reliable transition during defrost mode make it a robust choice. Additional features include:

  • Factory-installed suction-line accumulator prevents compressor damage.
  • Factory-installed compressor crankcase heater prevents refrigerant migration.
  • High-capacity muffler for reduced noise and vibrations.
  • Heavy-gauge galvanized-steel cabinet for durability.

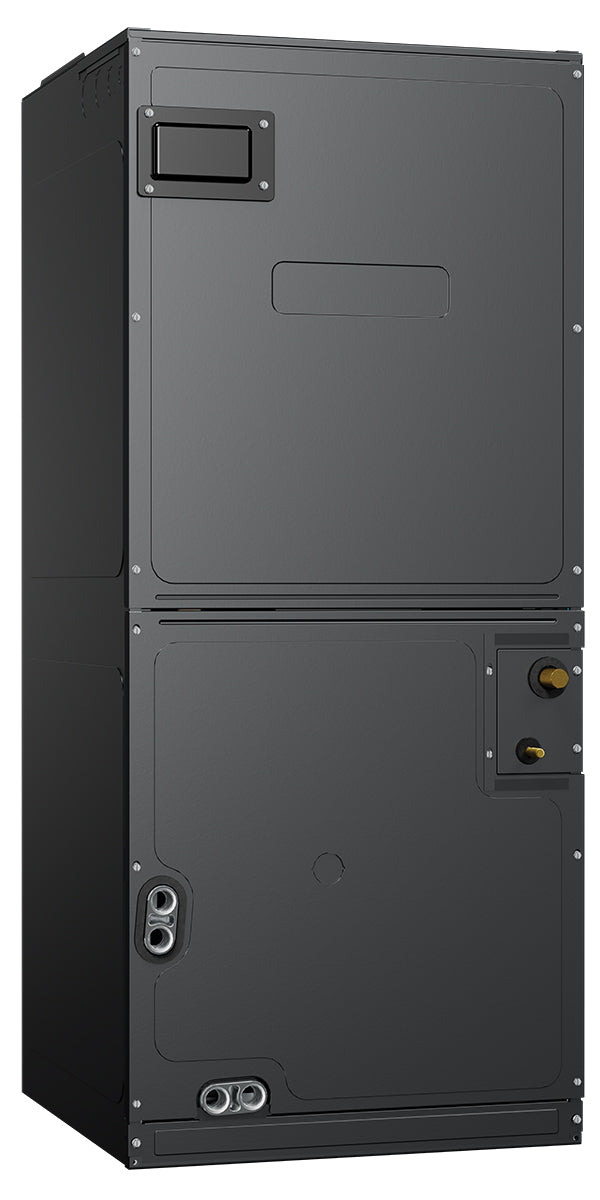

Goodman AMST48CU1400 Air Handler

The Goodman AMST48CU1400 air handler is designed to complement the heat pump, featuring a direct-drive, multi-speed blower motor for air volume variation and optimal circulation. It also includes:

  • Internal thermostatic expansion valve for ideal refrigerant flow.
  • SmartFrame™ sub-structure for tool-less filter access and quick installation.
  • DecaBDE-free thermoplastic drain pan for effective condensate management.
  • All-aluminum evaporator coil for efficient heat transfer.
Specifications
Overview
Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Configuration
Multi-Position
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
4.0 Tons
Cooling Capacity
48000 BTU
Nominal Cooling Capacity
48000 BTU
Heating Capacity
48000 BTU
Maximum Air Flow
1440 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Cabinet Width
21 Inches
Product Weight
410 Pounds
Shipping Weight
445 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318453
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 7/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
272 Pounds
Shipping Weight
292 Pounds
Maximum Sound Level
74 dB
Phase
1
Voltage
208/230 Volts
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Parts Warranty
5 Years Years
Compressor Warranty
Limited* 10 Years
Type
Air Handler
Product Line
AMST
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
TXV Installed
Yes
Capacity
4.0 Tons
Cooling BTU
48000
Maximum Air Flow
1495 CFM
Minimum Air Flow
1165 CFM
Voltage
208/230 Volts
Phase
1
Minimum Circuit Ampacity
7.1 Amps
Recommended Breaker Size
15/15 Amps
Drain Outlet Diameter
3/4 Inch
Product Height
58 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
138 Pounds
Shipping Weight
153 Pounds
ETL Listed
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
