Goodman - 4.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 4.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 4.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 4.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

Goodman - 4.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB404810 GM9S801205DN CHPT4860D4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,194.00
$5,194.00
Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GM9S801205DN GM9S80 Series 80% AFUE - 120,000 BTU - Horizontal Left or Right/Upflow - ECM - Single-Stage Quantity: 1
Goodman CHPT4860D4 Evaporator Coil 3 1/2-5 Tons Horizontal Quantity: 1
Manuals:

Specification Highlights

Cooling Capacity
48000 BTU
Heating Capacity
120000 BTU
SEER2
14.3

View More

LTL Delivery

This product weighs 511 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

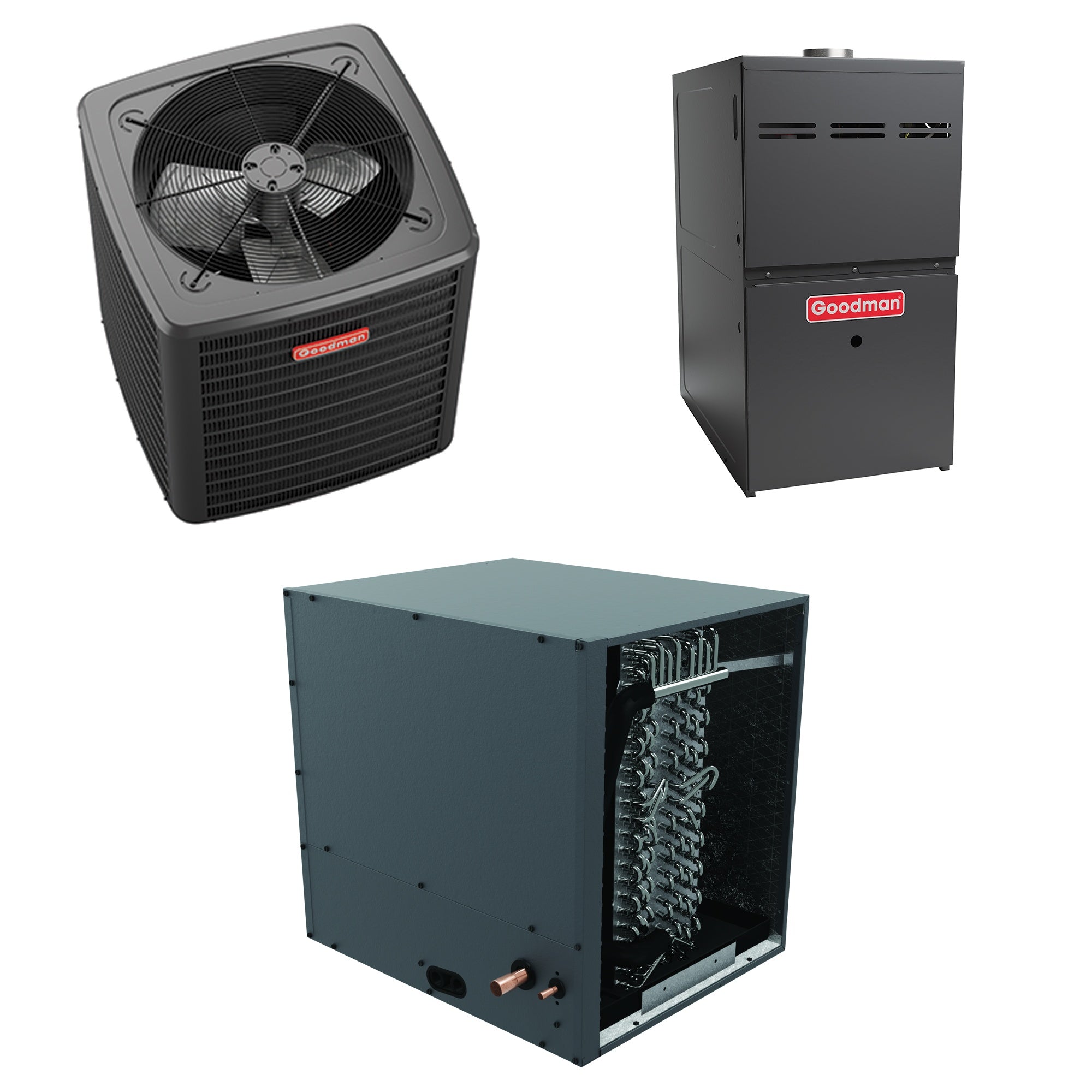

Overview of Goodman GSZB404810 GM9S801205DN CHPT4860D4 Bundle System

The Goodman GSZB404810 GM9S801205DN CHPT4860D4 bundle is a comprehensive heating and cooling solution for your home. This bundle includes the GSZB4 air conditioner, GM9S80 gas furnace, and CHPT cased evaporator coil. Each component is meticulously designed for durability and efficiency, ensuring optimal performance and long-term value.

  • GSZB404810 air conditioner
  • GM9S801205DN gas furnace
  • CHPT4860D4 cased evaporator coil

Product Highlights

This bundle system features advanced design elements for efficient heat transfer and reliable operation. Crafted for ease of installation, the system is an ideal choice for various climates.

Goodman GSZB404810 Air Conditioner

The Goodman GSZB404810 is a 4.0 ton heat pump that provides 48,000 BTU of cooling capacity. This air conditioner features a single-stage compressor with SmartShift™ technology for reliable and smooth defrost transitions.

  • Cooling Capacity: 48,000 BTU
  • SEER2: 14.3
  • Max Sound Level: 74 dB
  • Energy-Efficient Compressor

Goodman GM9S801205DN Gas Furnace

The GM9S801205DN is a 120,000 BTU gas furnace with an 80% AFUE efficiency rating. It employs an aluminized-steel tubular heat exchanger and a multi-speed ECM motor for precise temperature control and energy efficiency.

  • Heating Capacity: 120,000 BTU
  • AFUE: 80%
  • Multi-Speed ECM Motor
  • Self-Diagnostic Control Board

Goodman CHPT4860D4 Cased Evaporator Coil

The Goodman CHPT4860D4 evaporator coil is designed for 3.5 to 5.0 tons of cooling capacity. It features an all-aluminum design for efficient heat transfer, and a factory-installed internal thermostatic expansion valve for optimized refrigerant flow.

  • Cooling Capacity: 60,000 BTU
  • TXV Installed
  • Foil-Faced Insulation
  • UV-Resistant DecaBDE-Free Thermoplastic Drain Pan
Specifications
Overview
Cooling Capacity
48000 BTU
Heating Capacity
120000 BTU
SEER2
14.3
AFUE
80%
Max Sound Level
74 dB
Compressor Stages
Single Stage
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Product Height
36 7/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
272 Pounds
Shipping Weight
292 Pounds
Installation Location
Outdoor
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Warranty Parts
5 Years
Warranty Compressor
10 Years
Heating BTU
120000
High Fire Input
120000 BTU
High Fire Output
96000 BTU
Maximum Air Flow
2000 CFM
Cabinet Width
24 1/2 Inches
Product Height
33 3/8 Inches
Product Depth
28 Inches
Product Weight
132 Pounds
Shipping Weight
132 Pounds
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Multi-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
Flue Connection Size
4 Inches
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.3 Amps
Recommended Breaker Size
20 Amps
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Energy Star Listed
Yes
Warranty Parts
10 Years
Heat Exchanger Warranty
Lifetime
Cooling BTU
60000
TXV Installed
Yes
Cabinet Width
24 1/2 Inches
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
66 Pounds
Shipping Weight
81 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Warranty
10 Years
