GOODMAN
Brand: GOODMAN
SKU: GSZB404810 GC9C801005CX CAPT4961C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,288.00
$5,288.00

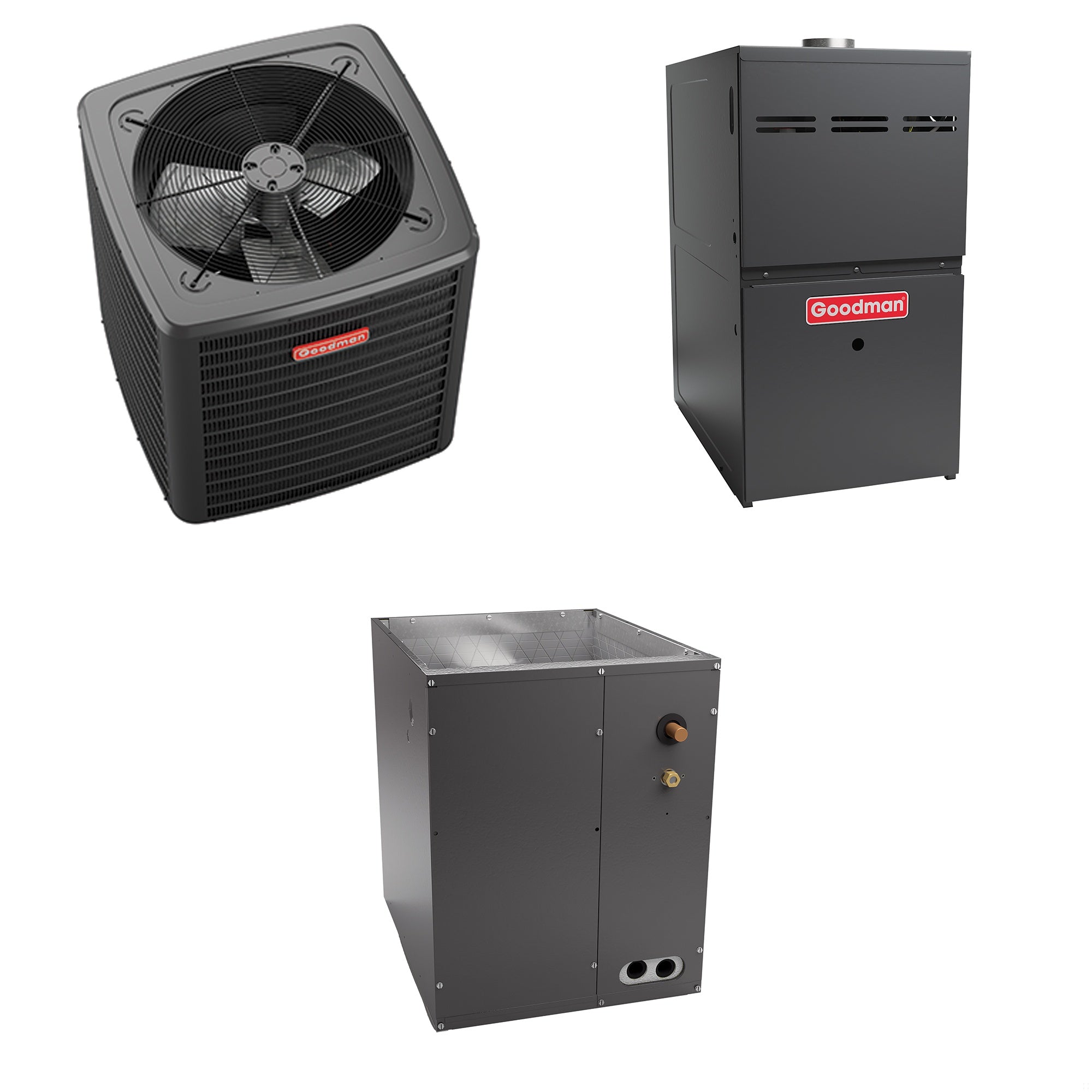

Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GC9C801005CX Furnace 80% 100,000 DOWN/HORZ 2-Stage Quantity: 1
Goodman CAPT4961C4 CAPT Series 5 Ton - Upflow/Downflow - Aluminum - Cased - Coil Quantity: 1
Manuals:

Specification Highlights

Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling

View More

LTL Delivery

This product weighs 495 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB404810, GC9C801005CX, and CAPT4961C4 Hybrid Fuel Split System is an excellent HVAC solution combining heating and cooling capabilities. Designed for efficiency and reliability, this bundle includes a GSZB4 air conditioner, a GC9C80 furnace, and a CAPT evaporator coil, providing optimal comfort across various climates.

Product Components

Goodman GSZB404810 Air Conditioner
This air conditioner features SmartShift™ technology for smooth defrost transitions. It has an energy-efficient compressor, aluminum fins, and copper tubing for effective cooling. Key features include:

  • 14.3 SEER2 rating
  • Energy-efficient compressor
  • SmartShift™ technology
  • Aluminum fins and copper tubing

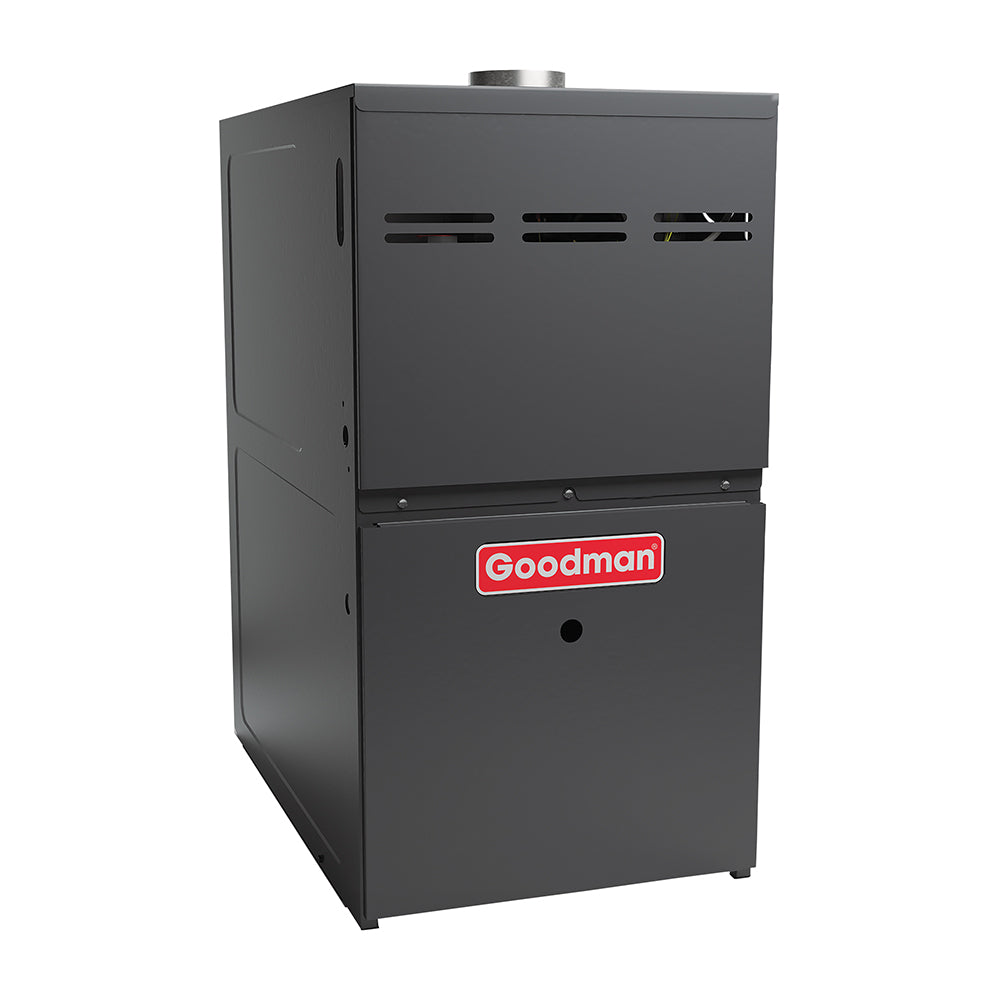

Goodman GC9C801005CX Gas Furnace
Reliable and efficient, the GC9C80 gas furnace employs a tubular heat exchanger made from aluminized steel for excellent heat transfer. It includes a multi-speed ECM motor, a quiet blower and gas valve, and a self-diagnostic control board. Key features include:

  • 80% AFUE efficiency
  • Multi-speed ECM motor
  • Self-diagnostic control board
  • Quiet operation

Goodman CAPT4961C4 Cased Evaporator Coil
Designed with all-aluminum construction, this evaporator coil maximizes heat transfer and features a factory-installed thermostatic expansion valve to simplify installation. The rust-resistant drain pan manages condensate effectively. Key features include:

  • All-aluminum design
  • Factory-installed thermostatic expansion valve
  • Foil-faced insulation
  • Rust-resistant thermoplastic drain pan

Product Highlights

This Goodman Hybrid Fuel Split System offers efficient heating and cooling with superior heat transfer technology and advanced features like SmartShift™ and self-diagnostic controls.

Product Information

Standard Information

  • Type: Hybrid Fuel Split System
  • Brand: Goodman
  • Model Numbers: GSZB404810, GC9C801005CX, CAPT4961C4
  • Cooling Capacity: 4.0 Tons
  • Heating Capacity: 100,000 BTU
  • SEER2: 14.3
Specifications
Overview
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
4.0 Tons
Cooling BTU
48000
Heating Capacity
48000 BTU
Maximum Sound Level
74 dB
SEER2
14.3
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Product Height
36 7/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
272 Pounds
Shipping Weight
292 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
5 Years
Compressor Warranty
Limited 10 Years
Type
Gas Furnace
Product Line
GC9C80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
AFUE
80 %
Heating BTU
100000
High Fire Input
100000 BTU
Low Fire Input
70000 BTU
Low Fire Output
56000 BTU
High Fire Output
80000 BTU
Maximum Air Flow
2000 CFM
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.32 Amps
Recommended Breaker Size
20 Amps
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
131 Pounds
Shipping Weight
131 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
207254746
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime
Type
Evaporator Coil
Product Line
CAPT
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Capacity
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Weight
73 Pounds
Shipping Weight
83 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
