Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSZB404810 GC9S801005CN CAPT4961C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$5,207.00
$5,207.00

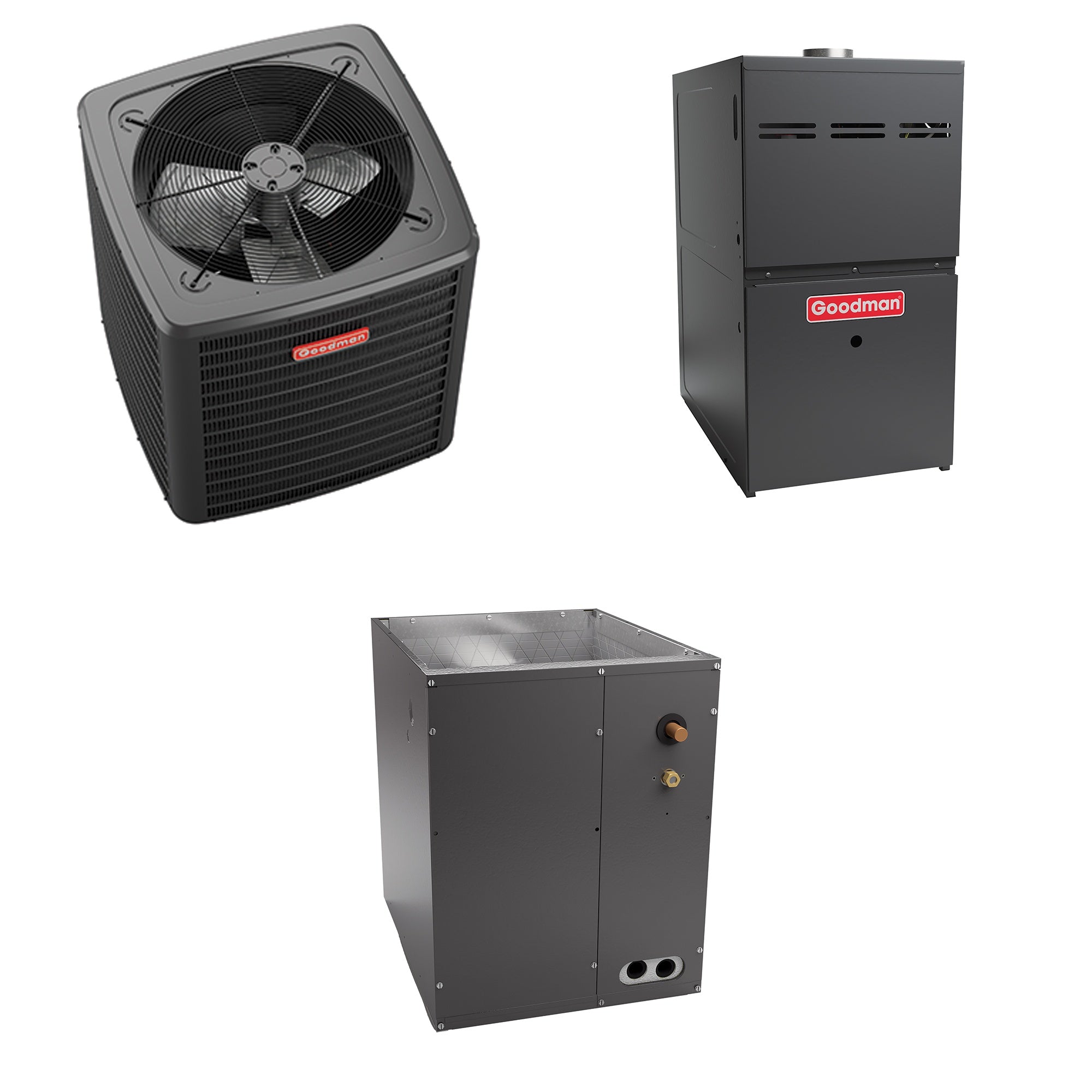

Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GC9S801005CN GCES80 Series 80% AFUE 100,000 BTU Downflow/Horizontal Left or Right ECM Single-Stage Furnace Quantity: 1
Goodman CAPT4961C4 CAPT Series 5 Ton - Upflow/Downflow - Aluminum - Cased - Coil Quantity: 1

Specification Highlights

Brand
Goodman
Heat Pump Model
GSZB404810
Gas Furnace Model
GC9S801005CN

View More

LTL Delivery

This product weighs 496 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

System Overview

The Goodman GSZB404810 GC9S801005CN CAPT4961C4 bundle offers a comprehensive solution for both heating and cooling needs. This package includes a heat pump, gas furnace, and cased evaporator coil, making it suitable for various climates and homes. All components are designed for durability and ease of installation, providing long-term value and efficient performance.

Goodman GSZB404810 Heat Pump

The Goodman GSZB404810 is a 4.0-ton heat pump that offers 14.3 SEER2 efficiency and a single-stage compressor. This unit is equipped with Smartshift™ technology for a reliable, quiet, and smooth defrost transition, and a factory-installed suction-line accumulator to prevent compressor damage from liquid surge.

  • Time-delay defrost for smoother operations
  • Aluminum fin and copper tube coil for efficient heat transfer
  • Factory-installed high-capacity muffler for noise reduction
  • UL 60335-2-40 compliant removable grille-style top design

Goodman GC9S801005CN Gas Furnace

The GC9S801005CN is a 100k BTU gas furnace with 80% AFUE efficiency. It features a multi-speed ECM motor for precise temperature control and low utility bills. The furnace also has a self-diagnostic control board and a low-sound blower and gas valve for quiet operation.

  • Aluminized-steel tubular heat exchanger for efficient heat transfer
  • Wrinkle-bend tubes for enhanced dependability and longevity
  • Energy-efficient blower motor
  • Self-diagnostic control board for reliable operation

Goodman CAPT4961C4 Cased Evaporator Coil

The CAPT4961C4 evaporator coil is designed for 4.0 to 5.0 ton cooling capacities. It features an all-aluminum coil design with sine fins and grooved tubes for efficient heat transfer. The coil also includes a factory-installed internal thermostatic expansion valve for ideal refrigerant flow and foil-faced insulation to manage condensate.

  • All-aluminum design for reliability
  • Factory-installed internal thermostatic expansion valve
  • Foil-faced insulation for condensate management
  • Rust-resistant thermoplastic drain pan
Overview
Brand
Goodman
Heat Pump Model
GSZB404810
Gas Furnace Model
GC9S801005CN
Evaporator Coil Model
CAPT4961C4
Cooling Capacity
4.0 Tons
Heating Capacity
100000 BTU
SEER2
14.3
AFUE
80%
HSPF2
7.5
EER2
12.0
Voltage
208/230 Volts
Frequency
60 Hz
Phase
1
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
Heat Pump Suction Connection Size
7/8 Inch
Heat Pump Liquid Connection Size
3/8 Inch
Heat Pump Height
36 7/16 Inches
Heat Pump Width
35 1/2 Inches
Heat Pump Depth
35 1/2 Inches
Heat Pump Weight
272 Pounds
Heat Pump Shipping Weight
292 Pounds
Gas Furnace Voltage
115 Volts
Gas Furnace Minimum Circuit Ampacity
15.3 Amps
Gas Furnace Recommended Breaker Size
20 Amps
Gas Furnace Height
33 3/8 Inches
Gas Furnace Width
21 Inches
Gas Furnace Depth
28 Inches
Gas Furnace Weight
115 Pounds
Gas Furnace Shipping Weight
115 Pounds
Evaporator Coil Width
21 Inches
Evaporator Coil Height
30 Inches
Evaporator Coil Depth
21 Inches
Evaporator Coil Weight
73 Pounds
Evaporator Coil Shipping Weight
83 Pounds
