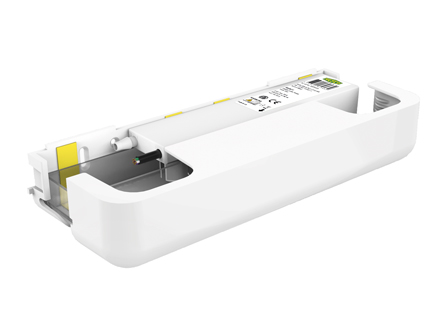

Goodman 3004145 Gobi II Condensate Pump

Product Description

The Goodman Gobi II condensate pump, model 3004145, is suitable for air conditioning mini-split systems. This external pump supports a flow range for systems from six thousand BTU per hour to one hundred twenty thousand BTU per hour. It comes equipped with a digital water sensor and universal voltage options.

• Maximum flow rate of eleven GPH (forty-two liters per hour).
• Self-priming with a maximum suction of ten feet (three meters).
• Alarm relay with ten Amp normally open/normally closed contacts.

Product Highlights

The Goodman Gobi II is designed for efficient drainage in HVAC systems. It provides reliable performance and features that ensure effective operation.

Product Information

Standard Information

• Flow Rate: Eleven GPH (forty-two liters per hour)
• Maximum Suction: Ten feet (three meters) self-priming

Technical Specifications

• Maximum Head: Sixty-five point six feet (twenty meters)
• Sound Level: Twenty dBA at three feet (one meter)
• Input Voltage: One hundred to two hundred forty VAC, fifty or sixty Hz
• Power Consumption: Eight watts
• Weight: One point three lbs
• Discharge Tube: One-quarter inch inner diameter (six point twenty-five mm) by three point three feet (one meter)
• Protection: Class II double insulation
• Operating Temperature: Thirty-seven point five degrees Fahrenheit to one hundred four degrees Fahrenheit
