GOODMAN
Brand: GOODMAN
SKU: GSZB404210 MBVC2001AA-1 CAPTA4230D4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,506.00
$4,506.00

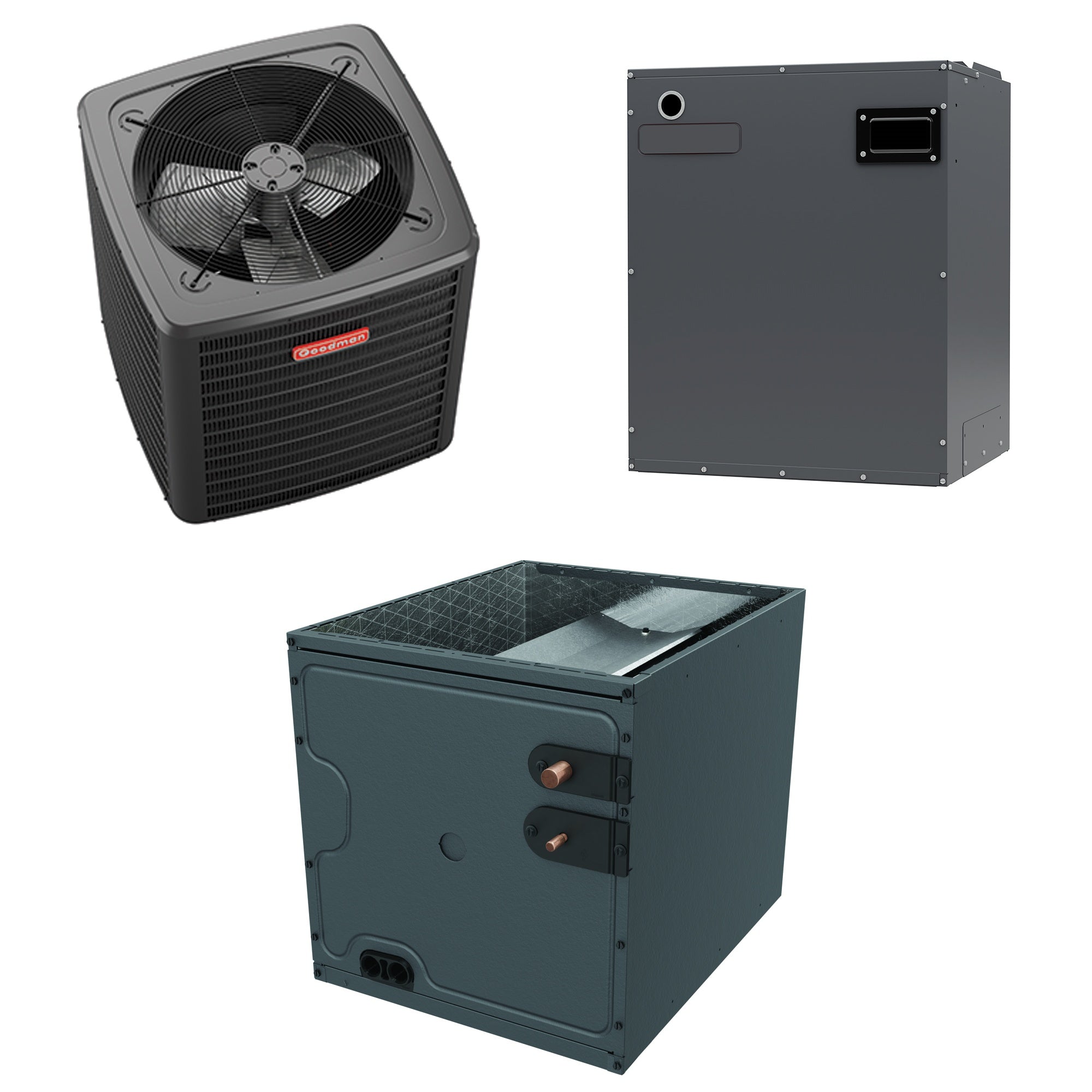

Bundle Includes
Goodman GSZB404210 GSZB 3.5 Ton - 14.3 SEER2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman MBVC2001AA-1 Modular Blower, ComfortBridge, 4-5 tons Quantity: 1
Goodman CAPTA4230D4 Evaporator Coil, 3.5 Tons, Upflow/Downflow, R-410A Quantity: 1
Manuals:

Specification Highlights

Type
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 453 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman 3.5 Ton Cooling, 42k BTU/Hr Heating Heat Pump and Air Handler System includes the GSZB404210 heat pump, the MBVC2001AA-1 modular blower, and the CAPTA4230D4 cased coil. This bundle offers a high-efficiency solution for improving home HVAC systems. It features a variable-speed ECM motor for energy-efficient circulation and durable, accessible design.

  • Modular design for easy installation
  • Variable-speed ECM motor for efficient airflow
  • ComfortBridge™ compatible for simplified diagnostics
  • All-aluminum evaporator coil maximizes heat transfer
  • Internal thermostatic expansion valve maintains refrigerant flow
  • Foil-faced insulation and rust-resistant drain pan for condensate management

Product Highlights

The Goodman GSZB404210 MBVC2001AA-1 CAPTA4230D4 bundle system offers a complete heating and cooling solution that combines efficiency, flexibility, and advanced technology. This system is ideal for households looking to reduce energy costs while maintaining optimal comfort.

Product Information

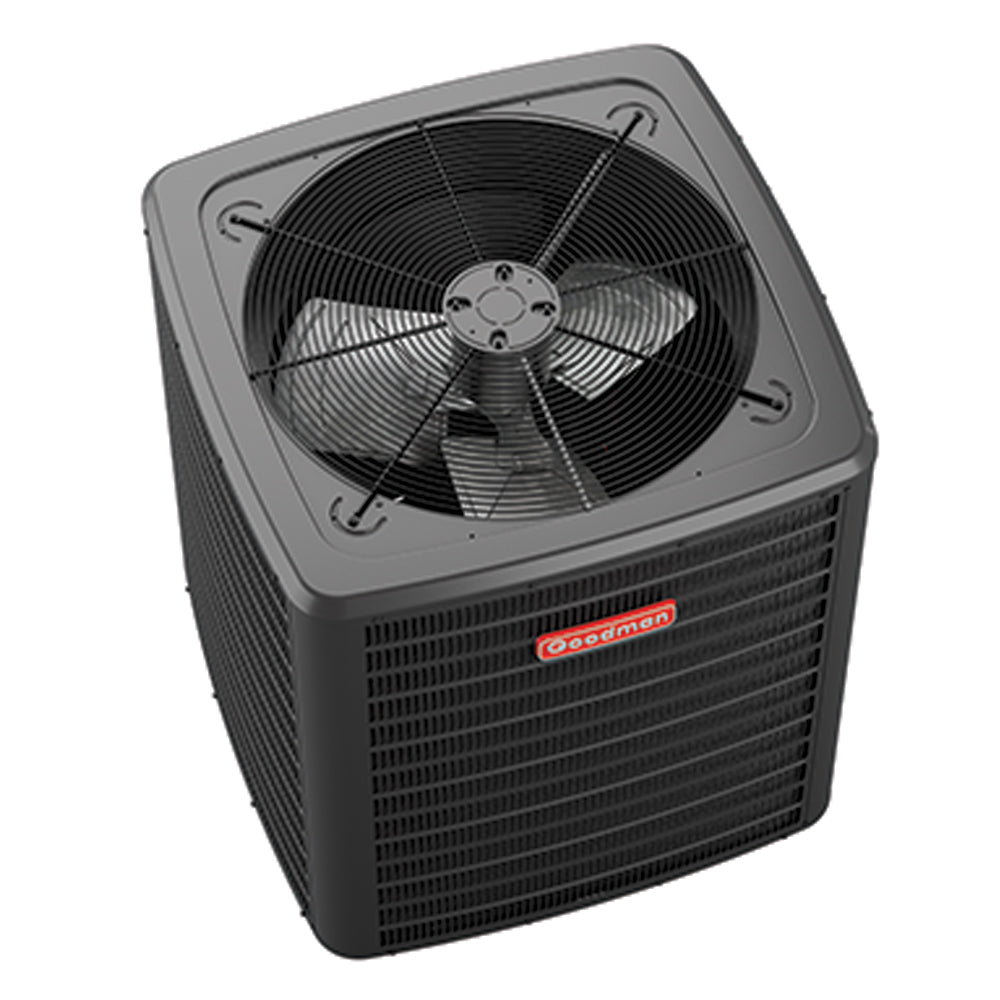

The Goodman GSZB404210 Air Conditioner

The Goodman GSZB404210 is a 3.5 Ton Heat Pump with a single-stage compressor designed for both heating and cooling applications. It uses R-410A refrigerant and includes several factory-installed components to ensure efficient and reliable operation.

  • Heat pump condenser
  • 14.3 SEER2 and 7.5 HSPF2 ratings
  • Factory-installed compressor crankcase heater and suction-line accumulator
  • Heavy-gauge galvanized-steel cabinet for durability
  • Energy-efficient compressor and copper tube/aluminum fin coil

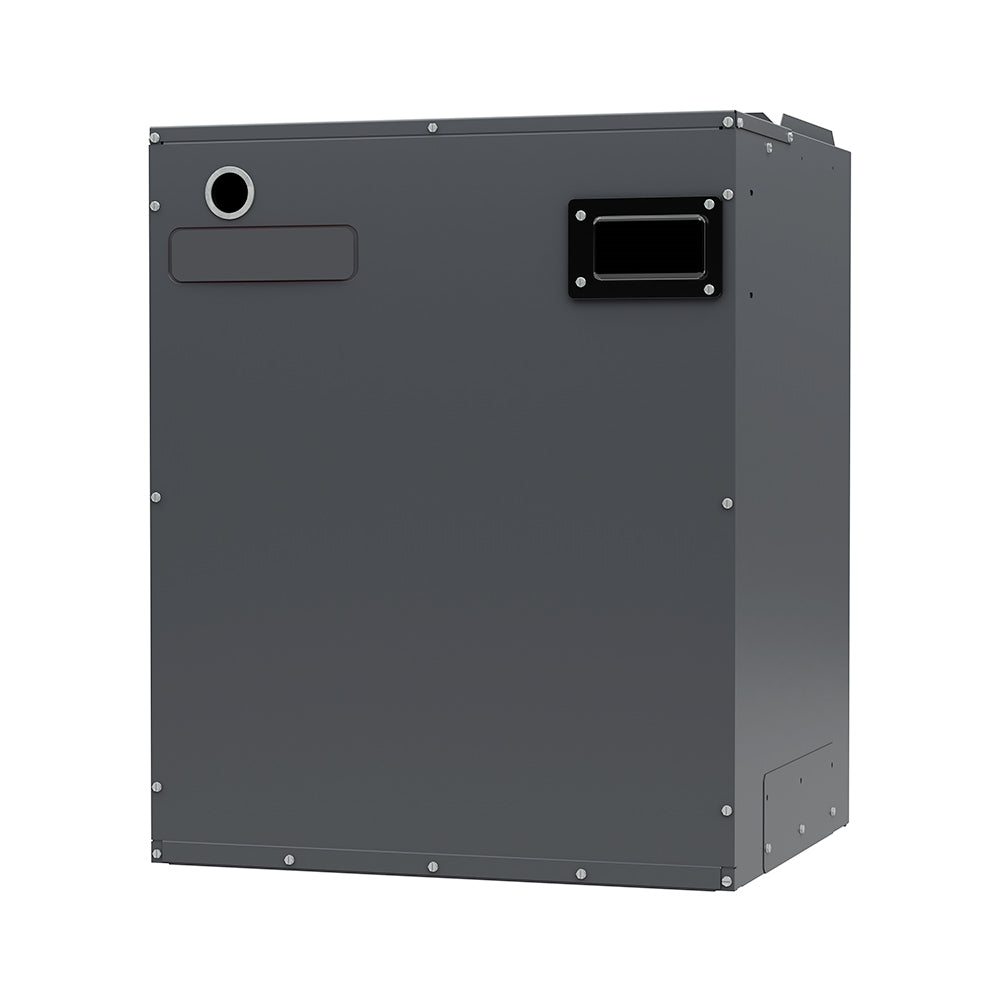

The Goodman MBVC2001AA-1 Air Handler

The Goodman MBVC2001AA-1 modular blower is designed for flexibility and efficiency. It features a variable-speed ECM motor and is compatible with ComfortBridge™ communicating controls, making installation and maintenance straightforward.

  • Air handler with variable-speed ECM motor
  • Blower motor adjusts airflow based on home conditions
  • Multi-position installation
  • Electric heat available
  • 2000 CFM maximum air flow

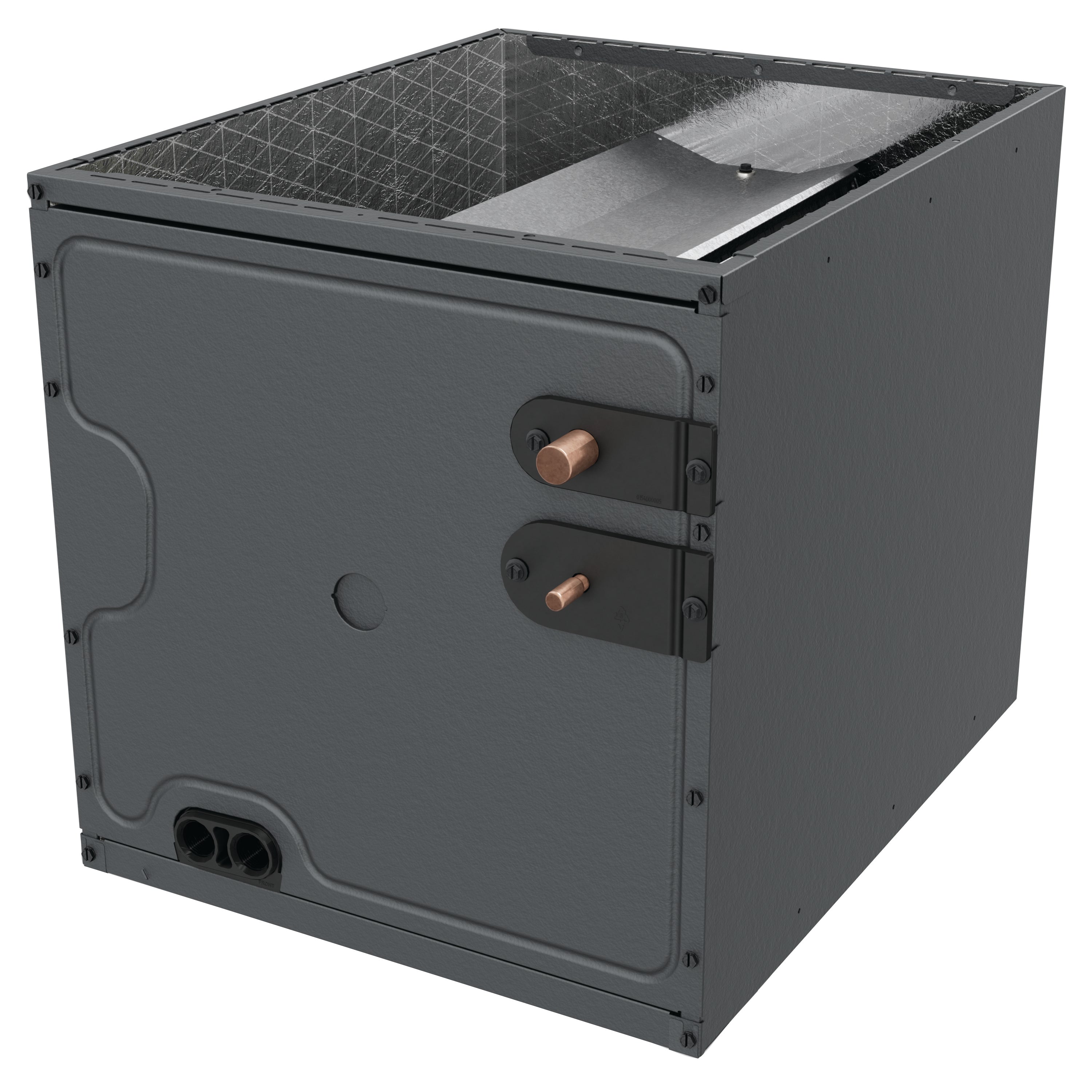

The Goodman CAPTA4230D4 Cased Evaporator Coil

The Goodman CAPTA4230D4 is a 3.5 Ton cased evaporator coil designed for upflow and downflow installations. It features an all-aluminum coil and a factory-installed internal thermostatic expansion valve to optimize refrigerant flow.

  • Cased evaporator coil with TXV
  • 24.5 inches wide for easy installation
  • 42000 BTU nominal cooling capacity
  • Foil-faced insulation for condensate management
  • 5-year parts warranty
Specifications
Overview
Type
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
Variable Speed
Coil Width
24.5 Inches
Configuration
Upflow/Downflow
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
3.5 Tons
Cooling Capacity
42000 BTU
Nominal Cooling Capacity
42000 BTU
Heating Capacity
42000 BTU
Maximum Air Flow
1270 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Cabinet Width
24.5 Inches
Product Weight
416 Pounds
Shipping Weight
456 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318976
Heat Pump Condenser Type
GSZB4
Product Line
GSZB4
Installation Location
Outdoor
Compressor Warranty
Limited* 10 Years
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.4 Amps
Recommended Breaker Size
40 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
35 13/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
264 Pounds
Shipping Weight
284 Pounds
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
5 Years
Energy Star Listed
No
TXV Installed
Yes
Motor Type
ECM
Mount Type
Multi-Position
Electric Heat
Available
Maximum Air Flow
2000 CFM
General Information Product Line
MBVC
Indoor Installation
Yes
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
86 Pounds
Shipping Weight
96 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Parts Warranty
Limited* 10 Years
Product Category
Forced Air Blower
Evaporator Coil Type
CAPT
Upflow/Downflow Configuration
Yes
R-410A Refrigerant
Yes
Cased Casing
Yes
A Coil Style
Yes
Product Line
CAPT
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
66 Pounds
Shipping Weight
76 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Product Category
Evaporator Coil
Heat Pump Package
3.5 Tons
