Goodman - 3.5 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Downflow
Goodman - 3.5 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Downflow
Goodman - 3.5 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Downflow
Goodman - 3.5 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Downflow

Goodman - 3.5 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSZB404210 GCVC961005CN CAPTA4230C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$6,238.00
$6,238.00
Bundle Includes
Goodman GSZB404210 GSZB 3.5 Ton - 14.3 SEER2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC961005CN GCVC96 Series 96% AFUE - 100,000 BTU - Downflow/Horizontal - Variable Speed - Furnace Quantity: 1
Goodman CAPTA4230C4 Evaporator Coil, 3.5 Tons, Upflow/Downflow, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump

View More

LTL Delivery

This product weighs 487 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

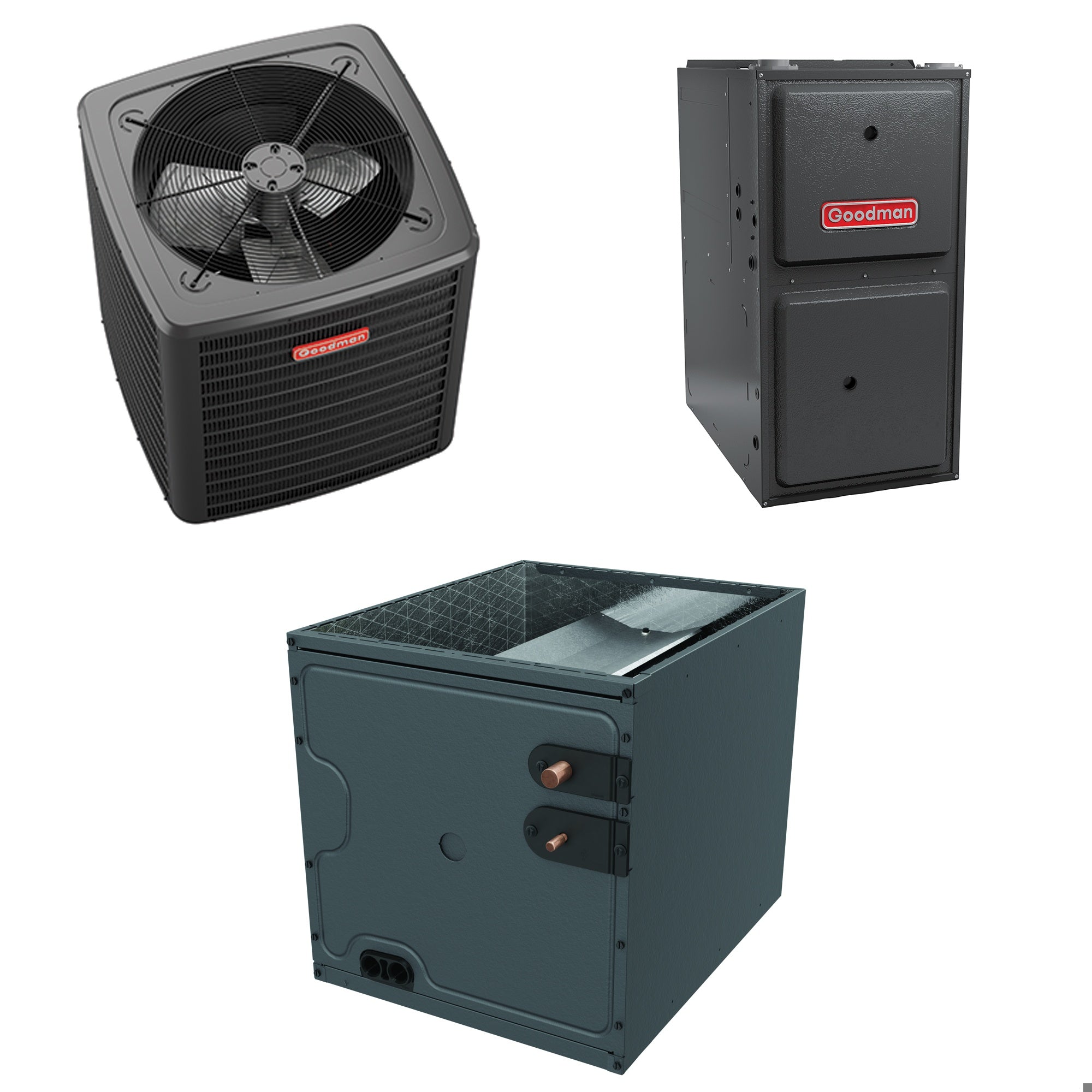

The Goodman GSZB404210 GCVC961005CN CAPTA4230C4 Bundle System

The Goodman GSZB404210 GCVC961005CN CAPTA4230C4 bundle system ensures reliable heating and cooling for your home. This package includes a GSZB4 heat pump, a GCVC96 furnace, and a CAPTA cased evaporator coil, providing a comprehensive HVAC solution. Each component is designed for ease of installation and durability, offering both immediate and long-term value. Ideal for various climates, this bundle ensures consistent comfort in your home year-round.

  • Heat pump, furnace, and evaporator coil included
  • Designed for durability and ease of installation
  • Suitable for most climates
  • Offers both heating and cooling

Product Highlights

A comprehensive HVAC solution with advanced components for reliable home comfort.

The Goodman GSZB404210 Heat Pump

Goodman GSZB404210 is a 3.5-ton heat pump with a 14.3 SEER2 rating, providing efficient heating and cooling. The design includes a copper tube and enhanced aluminum fin coil for optimal heat transfer. This unit also features factory-installed components like a suction-line accumulator, compressor crankcase heater, and a high-capacity muffler for enhanced performance and reliability.

  • 3.5 tons capacity
  • 14.3 SEER2 rating
  • Copper tube and aluminum fin coil
  • Factory-installed suction-line accumulator and compressor crankcase heater

Product Highlights

Ensures efficient heating and cooling with advanced technology and reliable components.

The Goodman GCVC961005CN Gas Furnace

The Goodman GCVC961005CN gas furnace provides 100,000 BTU/hr heating with a 96% AFUE rating, ensuring highly efficient performance. Featuring a dual-diameter tubular heat exchanger and a reliable blower motor, this furnace operates quietly and consistently. It is compatible with ComfortBridge™ communicating controls for simplified installation and maintenance.

  • 100,000 BTU/hr heating
  • 96% AFUE rating
  • Dual-diameter tubular heat exchanger
  • ComfortBridge™ compatible

Product Highlights

Offers high efficiency and quiet operation with advanced control compatibility.

The Goodman CAPTA4230C4 Cased Evaporator Coil

The Goodman CAPTA4230C4 evaporator coil is designed with an all-aluminum coil and a factory-installed thermostatic expansion valve. The unit features foil-faced insulation and a rust-resistant thermoplastic drain pan for effective condensate management. This 3.5-ton coil ensures optimal refrigerant flow and efficient heat transfer.

  • All-aluminum coil
  • Factory-installed thermostatic expansion valve
  • Foil-faced insulation
  • Rust-resistant thermoplastic drain pan

Product Highlights

Maximizes refrigerant flow and heat transfer efficiency with durable construction and smart features.

Specifications
Overview
Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Capacity
3.5 Tons
Cooling BTU
42000
Cooling Capacity
42000 BTU
Heating Capacity
42000 BTU
Maximum Sound Level
75 dB
SEER2
14.3
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.4 Amps
Recommended Breaker Size
40 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
35 13/16 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
264 Pounds
Shipping Weight
284 Pounds
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
5 Years Years
Compressor Warranty
Limited* 10 Years
Type
Gas Furnace
Product Line
GCVC96
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Direct Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
AFUE
96 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
96000 BTU
Low Fire Input
70000 BTU
Low Fire Output
67200 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.4 Amps
Recommended Breaker Size
20 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
145 Pounds
Shipping Weight
145 Pounds
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7368844
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Product Category
Furnace
Type
Evaporator Coil
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
Installation Available
Yes
TXV Installed
Yes
Capacity
3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
42000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
Product Category
Evaporator Coil
Product Category
Furnace & Heat Pump Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Downflow
Compressor Stages
Single Stage
AFUE
96 %
Capacity
3.5 Tons
Cooling Capacity
42000 BTU
Nominal Cooling Capacity
42000 BTU
Heating BTU
100000
Maximum Air Flow
2000 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Product Weight
472 Pounds
Shipping Weight
502 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318982
