Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow

Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVM970804CN CAPTA3626C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,984.00
$5,984.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVM970804CN 97% 80,000 BTU Modulating Variable-Speed ECM Upflow Furnace Quantity: 1
Goodman CAPTA3626C4 Evaporator Coil, 3 Ton, Upflow/Downflow Quantity: 1
Manuals:

Specification Highlights

MasterSKU
8320341586844
Bundle SEER2
14.3
Bundle AFUE
97%

View More

LTL Delivery

This product weighs 432 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB403610 GMVM970804CN CAPTA3626C4 is a reliable and efficient bundled HVAC system. It includes a heat pump, furnace, and cased evaporator coil, offering a complete solution for heating and cooling needs. Designed for ease of installation, durability, and long-term value, this bundle is perfect for various climate conditions.

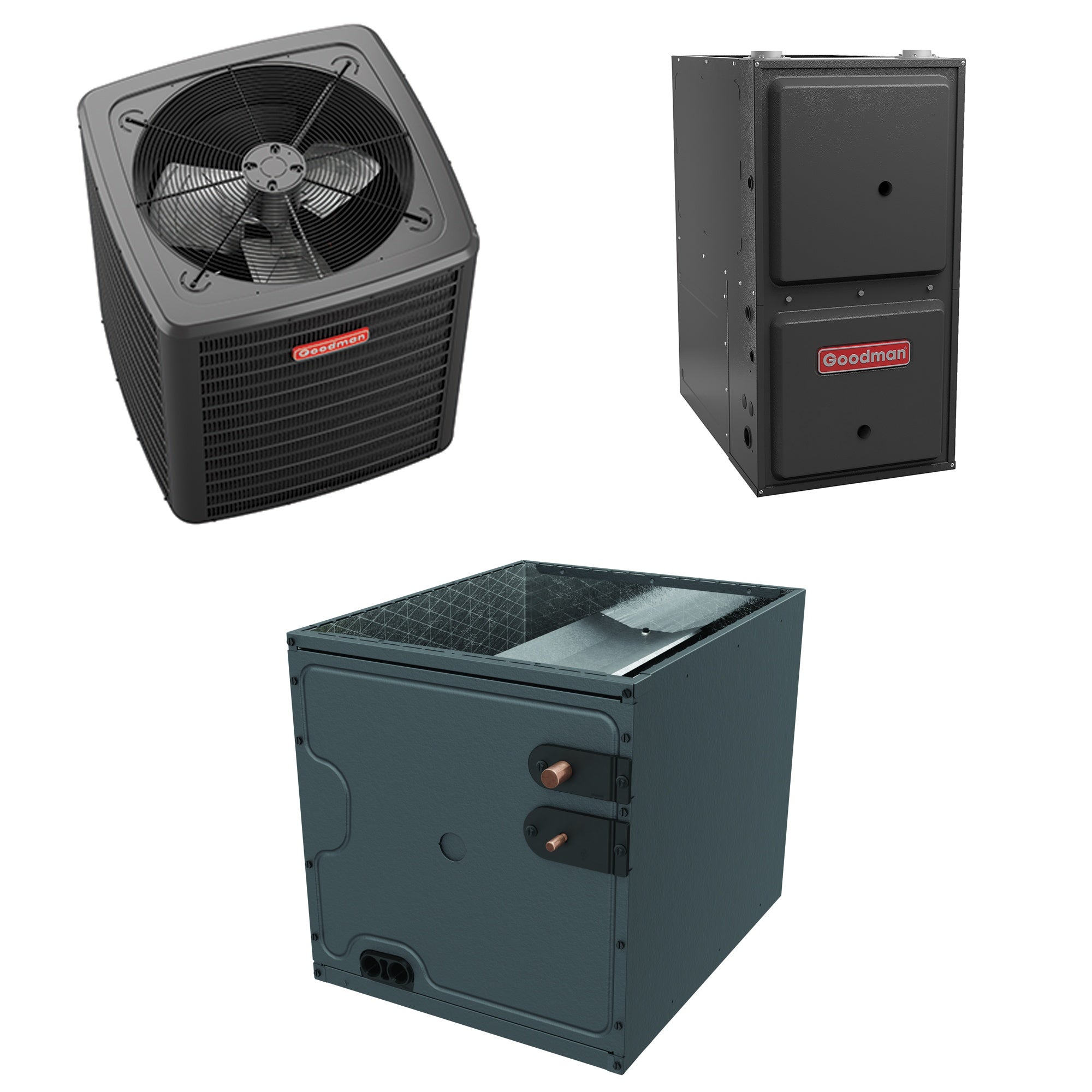

Bundle Overview

This Goodman system includes the GSZB403610 heat pump, GMVM970804CN furnace, and CAPTA3626C4 cased evaporator coil. The system works together to provide efficient heating and cooling for your home.

  • Heat pump capacity: 3.0 tons
  • Furnace heating capacity: 80,000 BTU/Hr
  • Evaporator coil cooling capacity: 36,000 BTU
  • Overall bundle SEER2: 14.3
  • AFUE: 97%

Goodman GSZB403610 Heat Pump

The Goodman GSZB403610 heat pump provides efficient heating and cooling with a 14.3 SEER2 rating. It features a single-stage compressor and Smartshift™ technology for quiet defrost cycles. The aluminum fin and copper tube coil enhance heat transfer and durability.

  • Capacity: 3.0 tons
  • Cooling BTU: 36,000
  • Heating capacity: 36,000 BTU
  • Maximum sound level: 72 dB
  • Energy-efficient compressor

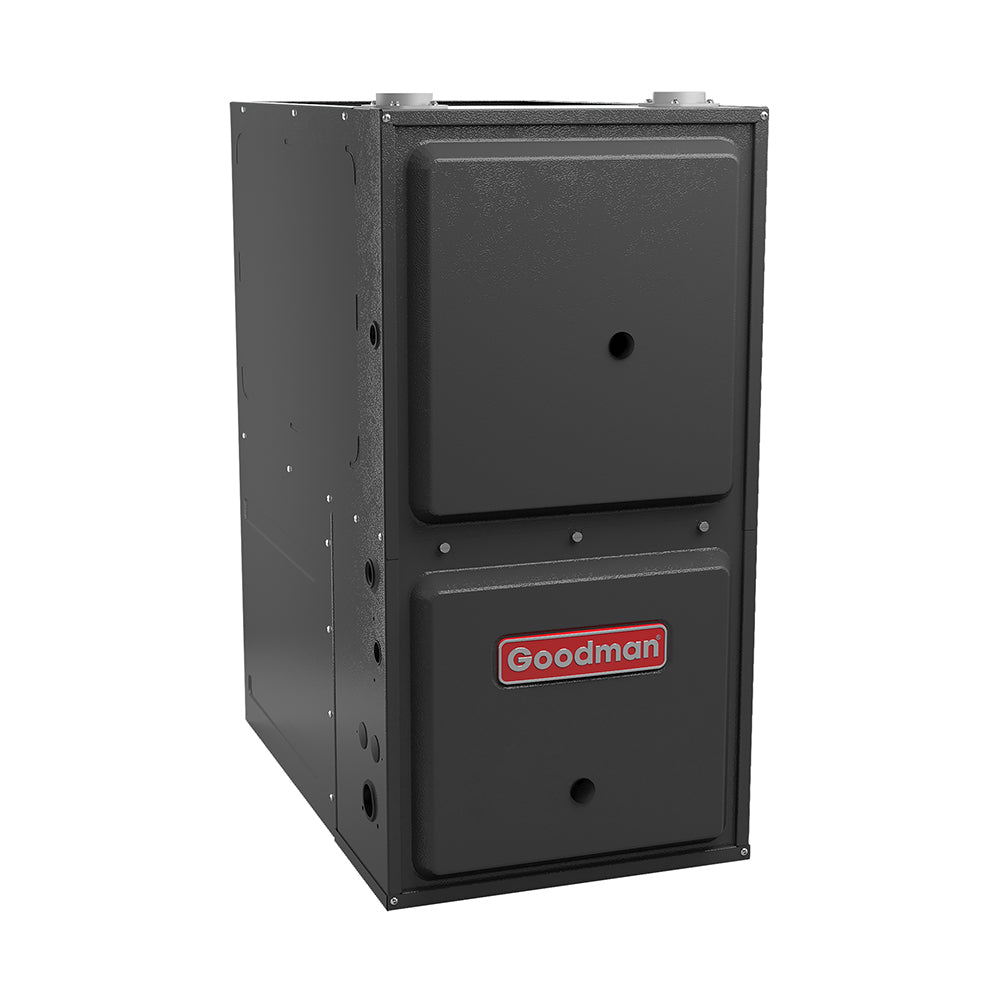

Goodman GMVM970804CN Gas Furnace

The GMVM970804CN furnace has a dual-diameter tubular heat exchanger made of aluminized steel for efficient heat transfer. It features an ECM variable-speed blower motor and multiple venting options. The ComfortBridge™ compatible furnace also offers auto-comfort mode for improved efficiency and dehumidification.

  • Heating capacity: 80,000 BTU/Hr
  • AFUE: 97%
  • Variable-speed ECM blower motor
  • Modulating/staging: Modulating
  • Maximum air flow: 1600 CFM

Goodman CAPTA3626C4 Evaporator Coil

The CAPTA3626C4 cased evaporator coil features an all-aluminum design for durability and improved heat transfer. It includes a factory-installed internal thermostatic expansion valve for optimal refrigerant flow. The coils foil-faced insulation and rust-resistant thermoplastic drain pan ensure efficient condensate management.

  • Cooling capacity: 36,000 BTU
  • TXV installed
  • Configuration: Upflow/Downflow
  • Suction connection size: 7/8 inch
  • Liquid connection size: 3/8 inch
Specifications
Overview
MasterSKU
8320341586844
Bundle SEER2
14.3
Bundle AFUE
97%
Furnace Capacity
80,000 BTU/Hr
Heat Pump Capacity
3.0 tons
Evaporator Coil Capacity
36,000 BTU
Furnace Blower Motor Type
ECM Variable-Speed
Furnace Modulating/Staging
Modulating
Furnace Maximum Air Flow
1600 CFM
Heat Pump Compressor Stages
Single Stage
Heat Pump Maximum Sound Level
72 dB
Heat Pump Cooling BTU
36,000
Heat Pump Heating Capacity
36,000 BTU
Evaporator Coil Configuration
Upflow/Downflow
Evaporator Coil TXV Installed
Yes
Heat Pump Installation Location
Outdoor
Heat Pump Refrigerant Type
R-410A
Evaporator Coil Suction Connection Size
7/8 inch
Evaporator Coil Liquid Connection Size
3/8 inch
Bundle Nominal Cooling Capacity
36,000 BTU
Furnace Fuel Type
Natural Gas
Furnace Vent Type
Direct Vent
Heat Pump Electrical Data Voltage
208/230 Volts
Furnace Electrical Data Voltage
115 Volts
Furnace Certifications
ETL Listed, AHRI Certified, ISO Certified, Energy Star Listed
Heat Pump Certifications
ETL Listed, AHRI Certified, ISO Certified
Evaporator Coil Certifications
ETL Listed, AHRI Certified
Furnace Warranty
20 Years Heat Exchanger, 5 Years Parts
Heat Pump Warranty
10 Years Limited Compressor, 5 Years Parts
Evaporator Coil Warranty
5 Years
Heat Pump Phase
1
Furnace Phase
1
Heat Pump Frequency
60 Hz
Furnace Frequency
60 Hz
Furnace Minimum Circuit Ampacity
11.6 Amps
Heat Pump Minimum Circuit Ampacity
21 Amps
Furnace Recommended Breaker Size
15 Amps
Heat Pump Recommended Breaker Size
35 Amps
Heat Pump DOE Regional Compliance
Nationwide
Furnace DOE Regional Compliance
Nationwide (Except CA)
Bundle General Information
Heating and Cooling, Upflow, ECM Variable-Speed, Single Stage
Bundle AHRI Reference Number
210318882
Furnace AHRI Reference Number
7424267
Bundle General Information Product Category
Furnace & Heat Pump Package
Heat Pump General Information Product Line
GSZB4
Evaporator Coil General Information Product Line
CAPT
Furnace General Information Product Line
GMVM97
Furnace Flue Connection Size
2 or 3 Inches
Heat Pump Liquid Connection Size
3/8 Inch
Heat Pump Suction Connection Size
7/8 Inch
Furnace Low NOx Emissions
Yes
Furnace Ultra Low NOx Emissions
No
Furnace Installation Available
Yes
Heat Pump Installation Available
Yes
Evaporator Coil Installation Available
Yes
Furnace Gas Conversion Kit Available
Yes
Furnace Blower Motor Type
ECM Variable-Speed
Bundle Operating Mode
Heating and Cooling
Bundle General Information Configuration
Upflow
Heat Pump General Information Installation Location
Outdoor
Heat Pump Certifications Energy Star Listed
No
Evaporator Coil General Information Casing
Cased
Evaporator Coil General Information Style
A Coil
Evaporator Coil Cooling BTU
36,000
Furnace Warranty Information Parts Warranty
5 Years
Furnace Heating BTU
80,000
Furnace High Fire Input
80,000 BTU
Furnace Low Fire Input
40,000 BTU
Furnace Low Fire Output
38,800 BTU
Furnace High Fire Output
77,600 BTU
Furnace Maximum Air Flow
1600 CFM
Furnace Cabinet Width
21 Inches
Furnace Product Height
34 1/2 Inches
Furnace Product Depth
28 3/4 Inches
Furnace Product Weight
142 Pounds
Furnace Shipping Weight
142 Pounds
Heat Pump Product Height
39 5/8 Inches
Heat Pump Product Width
35 1/2 Inches
Heat Pump Product Depth
35 1/2 Inches
Heat Pump Product Weight
214 Pounds
Heat Pump Shipping Weight
234 Pounds
Evaporator Coil Cabinet Width
21 Inches
Evaporator Coil Product Height
26 Inches
Evaporator Coil Product Width
21 Inches
Evaporator Coil Product Depth
21 Inches
Evaporator Coil Product Weight
57 Pounds
Evaporator Coil Shipping Weight
67 Pounds
Bundle Product Weight
413 Pounds
Bundle Shipping Weight
443 Pounds
