GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVM970804CN CAPTA4230C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$6,027.00
$6,027.00

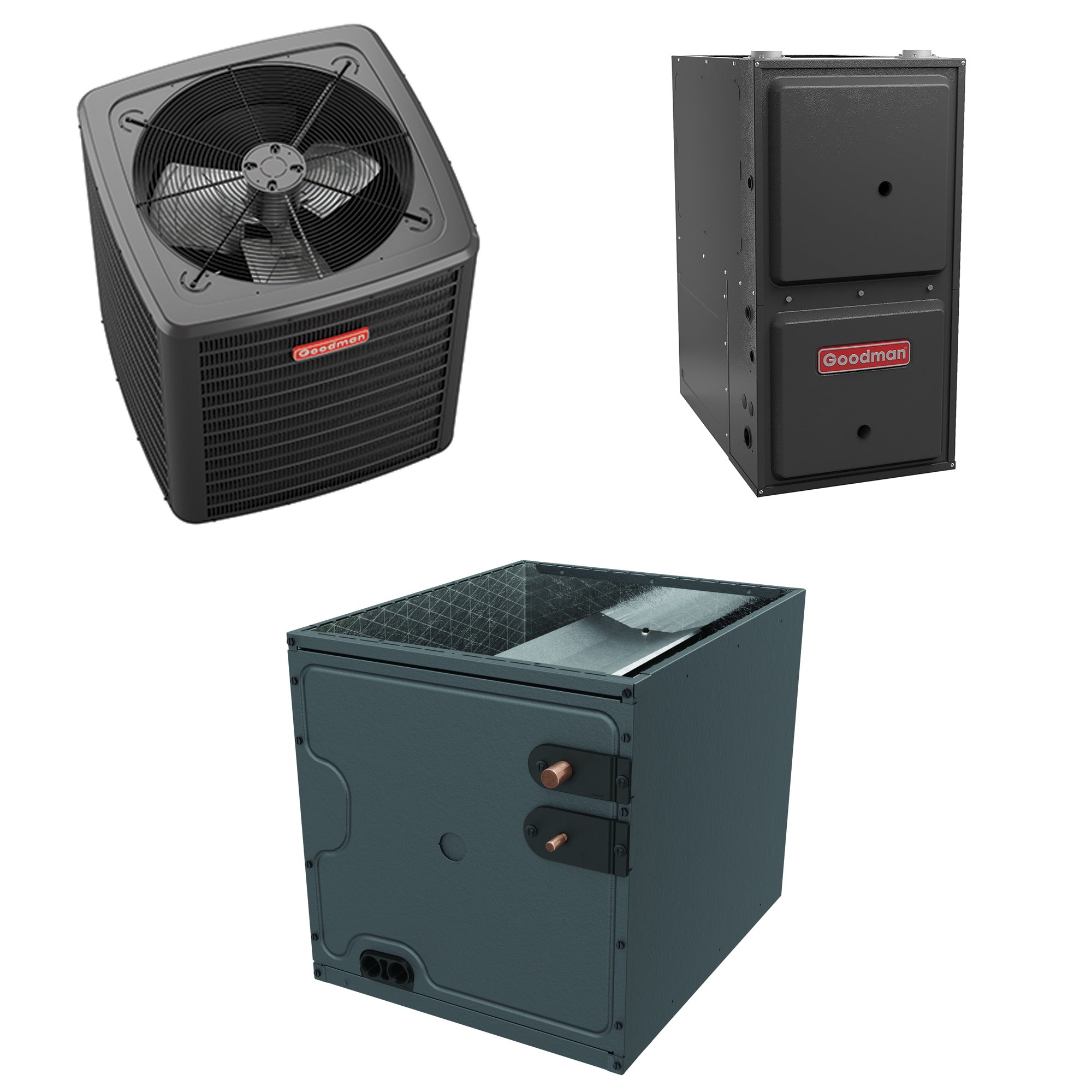

Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVM970804CN 97% 80,000 BTU Modulating Variable-Speed ECM Upflow Furnace Quantity: 1
Goodman CAPTA4230C4 Evaporator Coil, 3.5 Tons, Upflow/Downflow, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

AFUE
97%
SEER2
14.3
EER2
11.6

View More

LTL Delivery

This product weighs 438 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB403610 GMVM970804CN CAPTA4230C4 bundle is an efficient solution for HVAC systems, featuring a GSZB4 heat pump, GMVM97 furnace, and CAPTA cased evaporator coil. Each component is designed for durability and easy installation, providing value both upfront and over the long term. This combination is ideal for various climates, offering comprehensive comfort management.

Goodman GSZB403610 Heat Pump

The Goodman GSZB403610 is a vital part of this bundle. It uses R-410A refrigerant and is a single-stage heat pump with 3.0 tons of cooling capacity. The unit is designed for outdoor installation and operates quietly, maintaining indoor comfort.

  • 3.0 tons of cooling capacity
  • Uses R-410A refrigerant
  • Quiet operation with a 72 dB sound level
  • Includes a factory-installed suction-line accumulator and compressor crankcase heater

Goodman GMVM970804CN Gas Furnace

The GMVM970804CN gas furnace ensures efficient heating with 80,000 BTU capacity. It features a dual-diameter tubular heat exchanger made of aluminized steel for effective heat transfer and stability. This unit supports multiple venting options and is compatible with ComfortBridge™ communicating controls.

  • 80,000 BTU heating capacity
  • 97% AFUE rating
  • ComfortBridge™ compatible
  • Multiple venting options

Goodman CAPTA4230C4 Cased Evaporator Coil

The CAPTA4230C4 cased evaporator coil completes the system, adding to its efficiency. It features an all-aluminum design with sine fins and grooved tubes, optimizing heat transfer. The unit includes a factory-installed internal thermostatic expansion valve for easy installation and effective refrigerant flow management.

  • 3.5 tons cooling capacity
  • All-aluminum construction for durability
  • Factory-installed internal thermostatic expansion valve
  • Foil-faced insulation and rust-resistant drain pan

Product Highlights

This Goodman bundle ensures reliable, efficient operation and ease of installation. The GMVM970804CN furnace and GSZB403610 heat pump provide both heating and cooling, while the CAPTA4230C4 coil enhances efficiency. Ideal for various climates, this system brings comfort and durability to any home.

Specifications
Overview
AFUE
97%
SEER2
14.3
EER2
11.6
Cooling Capacity
36000 BTU
Heating Capacity
80000 BTU
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Product Depth
35 1/2 Inches
Product Width
35 1/2 Inches
Product Height
39 5/8 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Compressor Warranty
Limited 10 Years
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Refrigerant Type
R-410A
Compressor Stages
Single Stage
Installation Location
Outdoor
Operating Mode
Heating and Cooling
Product Line
GSZB4
Cabinet Width
21 Inches
Product Depth
21 Inches
Product Height
30 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Casing
Cased
Configuration
Upflow/Downflow
TXV Installed
Yes
General Information
Evaporator Coil
Parts Warranty
5 Years
AHRI Certified
Yes
Style
A Coil
Blower Motor Type
ECM Variable-Speed
Gas Conversion Kit
Available
Modulating/Staging
Modulating
Flue Connection Size
2 or 3 Inches
Product Height
34 1/2 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
Fuel Type
Natural Gas
Vent Type
Direct Vent
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Performance Heating BTU
80000 BTU
High Fire Input
80000 BTU
High Fire Output
77600 BTU
Low Fire Input
40000 BTU
Low Fire Output
38800 BTU
Maximum Air Flow
1600 CFM
Energy Star Listed
Yes
AHRI Reference Number
7424267
Product Line
GMVM97
General Information
Furnace
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Minimum Circuit Ampacity
11.6 Amps
Recommended Breaker Size
15 Amps
Voltage
115 Volts
Phase
1
Frequency
60 Hz
General Information
Gas Furnace
Cabinet Width
21 Inches
Product Depth
28 3/4 Inches
Product Width
21 Inches
Product Height
34 1/2 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
ETL Listed
Yes
ISO Certified
Yes
General Information
Furnace
Performance Maximum Air Flow
1600 CFM
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
Configuration
Upflow/Horizontal
