Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Horizontal

Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVM970804CN CHPTA3630C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,972.00
$5,972.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVM970804CN 97% 80,000 BTU Modulating Variable-Speed ECM Upflow Furnace Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Heat Pump Package
Operating Mode
Heating and Cooling
Modulating/Staging
Modulating

View More

LTL Delivery

This product weighs 445 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSZB403610 GMVM970804CN CHPTA3630C4 Bundle System

The Goodman GSZB403610 GMVM970804CN CHPTA3630C4 bundle system is designed to enhance your homes HVAC capabilities. This system includes a 3.0-ton GSZB4 heat pump, an 80,000 BTU GMVM97 furnace, and a cased CHPTA evaporator coil. These components together ensure efficient cooling and heating, optimal refrigerant flow, and quiet operation.

  • 3.0-ton cooling capacity
  • 80k BTU/Hr heating capacity
  • 14.3 SEER2 rating
  • 97% AFUE efficiency

When assembled, this bundle provides a comprehensive HVAC solution that is suitable for most homes.

Product Highlights

The Goodman GSZB403610 GMVM970804CN CHPTA3630C4 bundle includes advanced features such as a dual-diameter tubular heat exchanger, ComfortBridge™ compatibility, and Auto-Comfort mode for enhanced efficiency and dehumidification.

The Goodman GSZB403610 Heat Pump

The GSZB403610 is a 3.0-ton heat pump designed to provide both cooling and heating. It operates with an energy-efficient compressor and features SmartShift™ technology for reliable defrost mode transitions.

  • 3.0 tons cooling capacity
  • 36000 BTU heating capacity
  • Single stage compressor
  • R-410A refrigerant

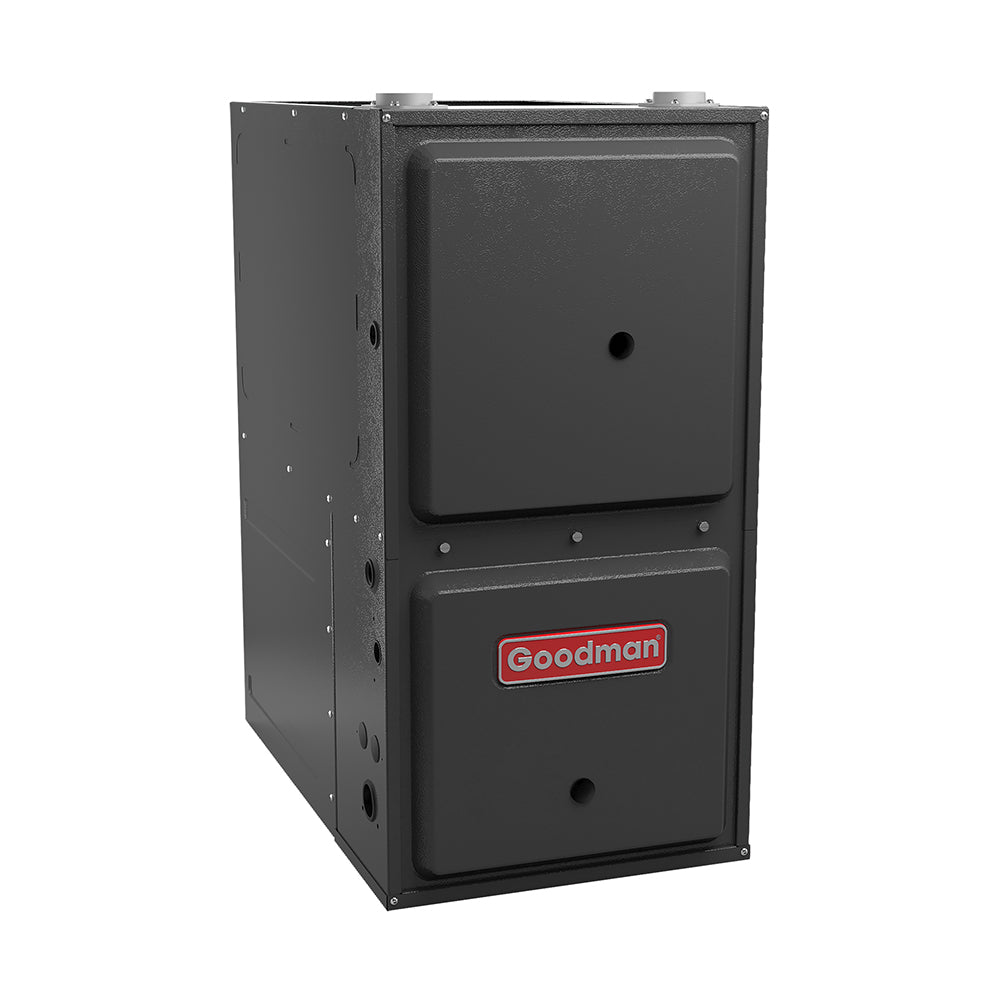

The GMVM970804CN Gas Furnace

The GMVM970804CN gas furnace offers 80,000 BTU/Hr heating capacity. Its dual-diameter tubular heat exchanger and aluminized steel construction ensure efficient heat transfer and durability.

  • 97% AFUE efficiency
  • Modulating staging
  • ECM Variable-Speed Blower Motor
  • Direct vent capability

The CHPTA3630C4 Cased Evaporator Coil

The CHPTA3630C4 evaporator coil is designed for horizontal applications with a 3.0-ton cooling capacity. Its all-aluminum construction optimizes heat transfer and ensures long-term reliability.

  • 21 inches width
  • 30 inches depth
  • 3.0 tons cooling capacity
  • Factory-installed thermostatic expansion valve
Specifications
Overview
Product Category
Furnace & Heat Pump Package
Operating Mode
Heating and Cooling
Modulating/Staging
Modulating
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Horizontal
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide (Except CA)
AFUE
97 %
Capacity
3.0 Tons
Cooling Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Heating BTU
80000
Maximum Air Flow
1600 CFM
SEER2
14.3
EER2
11.5
HSPF2
7.5
Product Weight
411 Pounds
Shipping Weight
446 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318953
Type
Gas Furnace
Product Line
GMVM97
Fuel Type
Natural Gas
Vent Type
Direct Vent
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
High Fire Input
80000 BTU
High Fire Output
77600 BTU
Low Fire Input
40000 BTU
Low Fire Output
38800 BTU
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.6 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
Energy Star Listed
Yes
ISO Certified
Yes
AHRI Reference Number
7424267
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
Energy Star Listed
No
Warranty
Limited* 10 Years
Type
Evaporator Coil
Product Line
CHPTA
Style
A Coil
Configuration
Horizontal
TXV Installed
Yes
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
55 Pounds
Shipping Weight
70 Pounds
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Limited Years
