Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVC960804CN CHPTA3630C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,691.00
$5,691.00

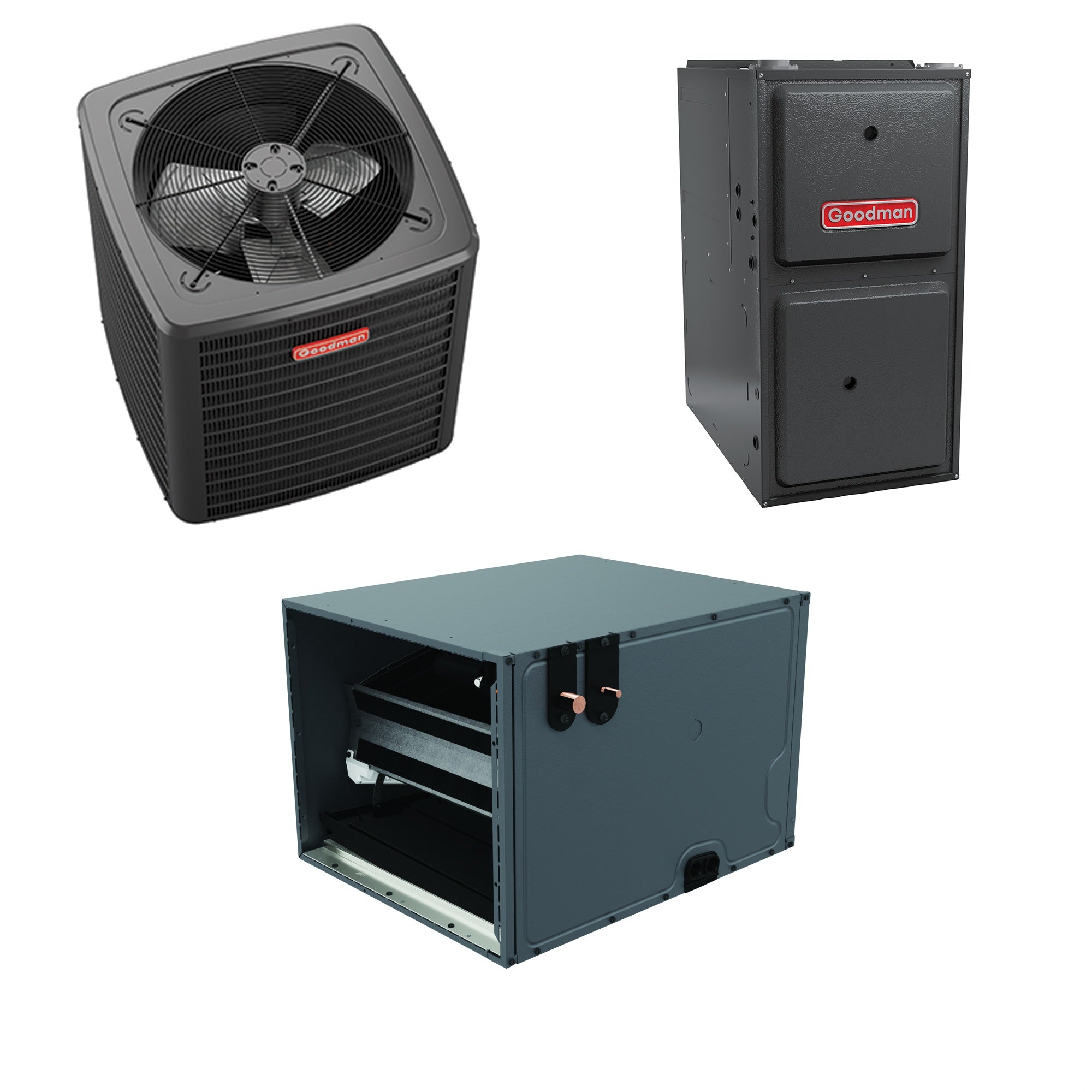

Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVC960804CN GMVC96 96% AFUE - 80,000 BTU - Horizontal/Upflow - Variable Speed - Furnace Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Heat Pump Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage

View More

LTL Delivery

This product weighs 444 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB403610 GMVC960804CN CHPTA3630C4 Bundle is a complete heating and cooling solution. This package includes a GSZB4 air conditioner, a GMVC96 furnace, and a cased CHPTA evaporator coil. Each component emphasizes ease of installation and durability, ensuring long-term value. This kit is ideal for various regions and offers a 14.3 SEER2 rating for efficient cooling and a 96% AFUE rating for heating.

  • Advanced Heat Exchanger Design
  • Quiet Comfort
  • Venting Options
  • ComfortBridge Compatible
  • Auto-Comfort Mode

Product Information

Goodman GSZB403610 Air Conditioner

The Goodman GSZB403610 is built to provide optimal cooling with a 3.0-ton capacity. It includes aluminum fins and copper tubing to maximize efficiency.

  • Energy-efficient compressor
  • Smartshift technology
  • Factory-installed high-capacity muffler
  • High and low-pressure switches

Goodman GMVC960804CN Gas Furnace

The GMVC960804CN gas furnace features a dual-diameter tubular heat exchanger and operates quietly due to selected blower and gas valve components.

  • Dual-diameter tubular heat exchanger
  • ECM variable-speed blower motor
  • Multiple venting options
  • ComfortBridge compatible

Goodman CHPTA3630C4 Cased Evaporator Coil

The CHPTA3630C4 coil is designed for horizontal installation and includes an internal thermostatic expansion valve for ideal refrigerant flow.

  • All-aluminum design
  • Internal thermostatic expansion valve
  • Foil-faced insulation for condensate prevention
  • UV-resistant thermoplastic drain pan
Specifications
Overview
Product Category
Furnace & Heat Pump Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Horizontal
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide (Except CA)
AFUE
96 %
Capacity
3.0 Tons
Cooling Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Heating BTU
80000
Maximum Air Flow
1600 CFM
SEER2
14.3
EER2
11.5
HSPF2
7.5
Product Weight
410 Pounds
Shipping Weight
445 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318949
Type
Heat Pump Condenser
Product Line
GSZB4
Installation Location
Outdoor
Compressor Stages
Single Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
ISO Certified
Yes
ETL Listed
Yes
Energy Star Listed
No
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
AHRI Certified
Yes
Product Line
GMVC96
Fuel Type
Natural Gas
Vent Type
Direct Vent
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
AFUE
96 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
76800 BTU
Low Fire Input
56000 BTU
Low Fire Output
53760 BTU
Maximum Air Flow
1600 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
141 Pounds
Shipping Weight
141 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Reference Number
7368835
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Product Line
CHPTA
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Capacity
3.0 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
55 Pounds
Shipping Weight
70 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
