Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVC960803BN CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,654.00
$5,654.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVC960803BN Variable Speed 80,000 BTU 96% Efficiency Furnace 17.5 inch Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

Performance HSPF2
7.5
Performance SEER2
14.3
General Information Type
Heat Pump Condenser

View More

LTL Delivery

This product weighs 423 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB403610 GMVC960803BN CHPTA3630B4 heat pump and furnace kit is a comprehensive HVAC solution for your home. This bundle includes a GSZB4 air conditioner, a GMVC96 furnace, and a CHPTA cased evaporator coil. It ensures efficient heating and cooling across different regions.

Each component in this kit is engineered for easy installation and long-term use. The GSZB4 air conditioner, GMVC96 furnace, and CHPTA cased evaporator coil form this well-rounded system. They combine to provide optimal performance and durability, offering short-term convenience and long-term value. The Goodman GSZB403610 GMVC960803BN CHPTA3630B4 kit meets various home comfort needs.

  • Reliable dual-diameter tubular heat exchanger
  • High-efficiency heat transfer
  • Low sound levels for quiet operation
  • Various venting options for flexible installation
  • ComfortBridge™ compatible for easy control
  • Auto-Comfort mode for efficient cooling

Product Highlights

This system includes advanced features like the Auto-Comfort mode and compatibility with ComfortBridge™ controls. These enhance your HVAC system with diagnostics, troubleshooting, and superior comfort control.

Product Information

The Goodman GSZB403610 GMVC960803BN CHPTA3630B4 Bundle

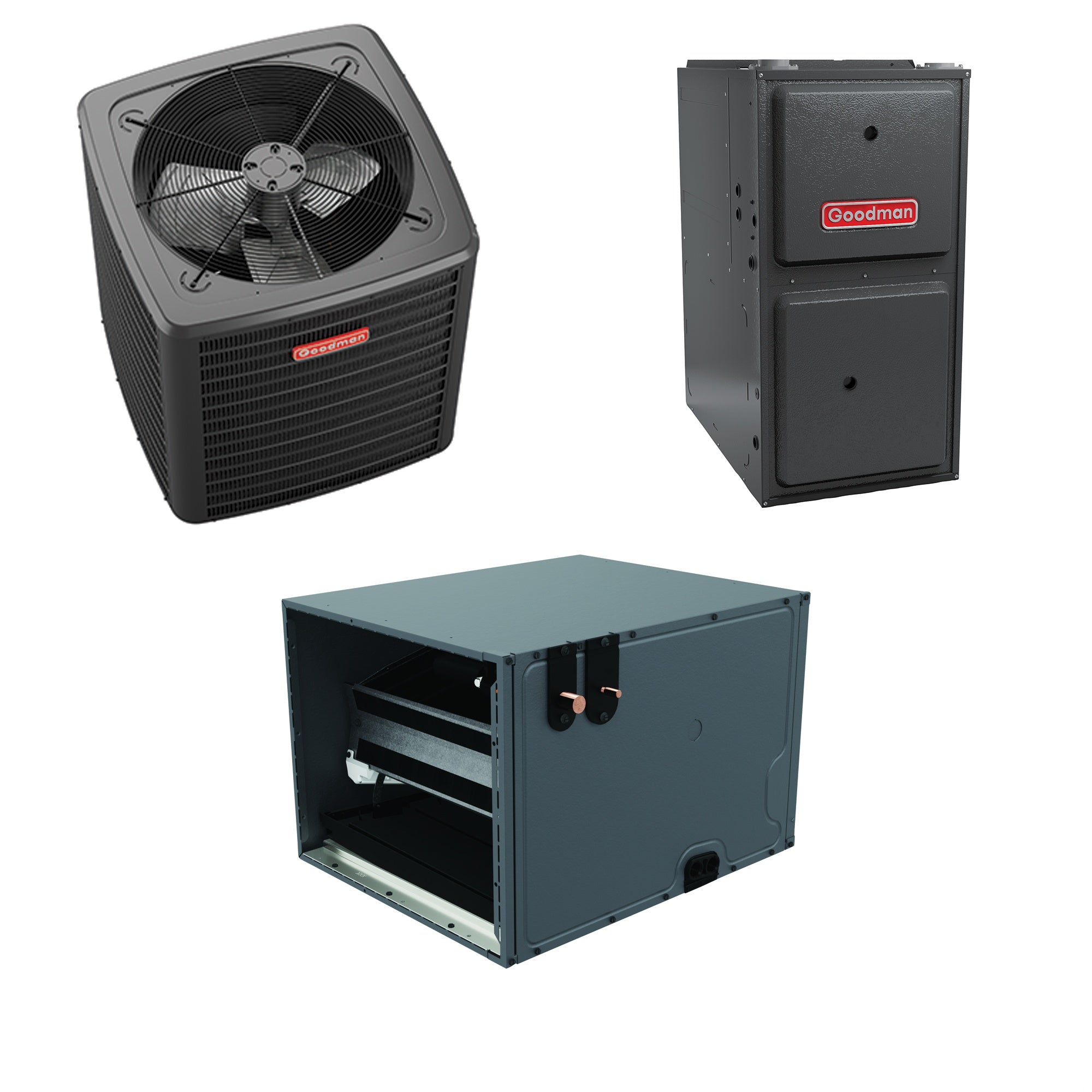

The Goodman GSZB403610 GMVC960803BN CHPTA3630B4 bundle is designed to provide an all-in-one solution for home heating and cooling. It includes:

  • GSZB4 air conditioner
  • GMVC96 furnace
  • CHPTA cased evaporator coil

    • The GSZB4 air conditioner offers a dependable performance with features like an energy-efficient compressor, Smartshift™ technology for smooth defrost transitions, and a copper tube with an aluminum fin coil for superior heat transfer.

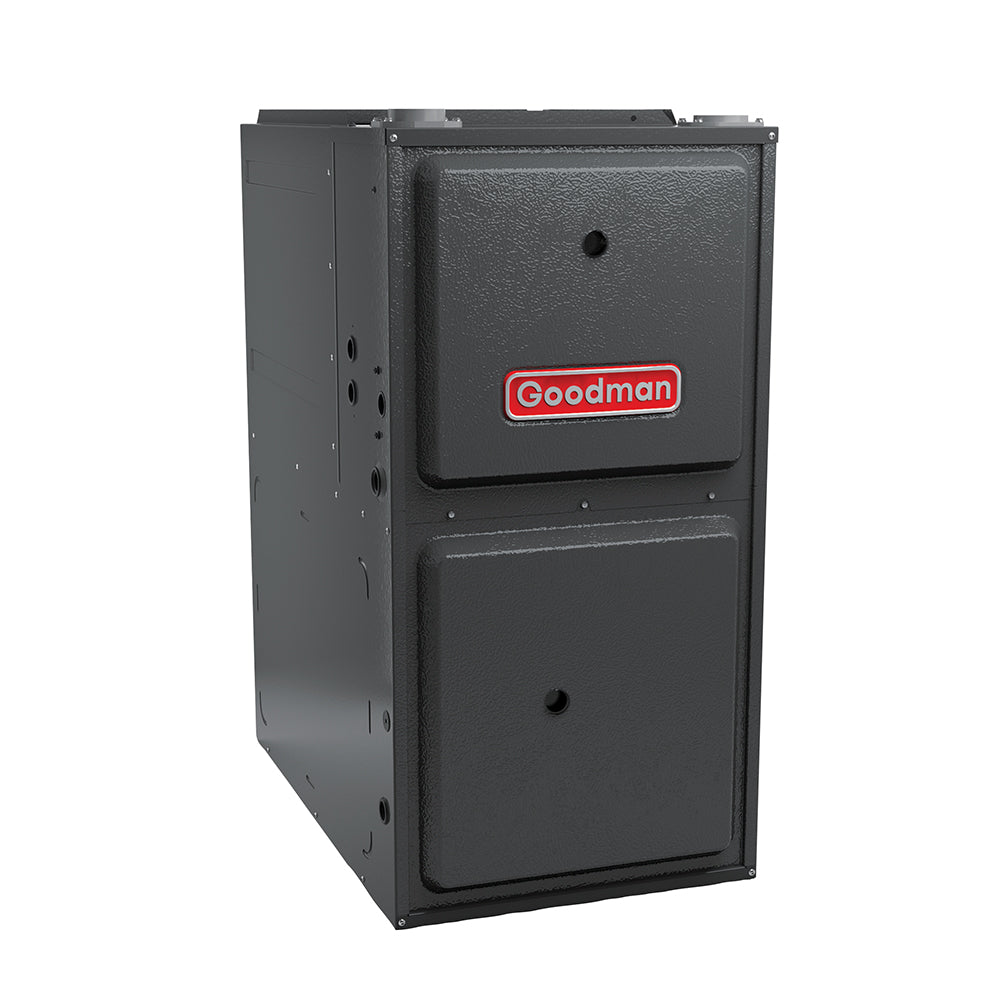

    GMVC96 Gas Furnace

    The GMVC96 furnace is built for reliable heating with a dual-diameter tubular heat exchanger. The heat exchanger is made of aluminized steel and features a wrinkle-bend design for efficient heat transfer and enhanced durability. The furnace operates quietly due to its low-sound blower and gas valve. It can be installed with either a two-pipe direct vent or a single-pipe configuration using combustion air.

    • Dual-diameter tubular heat exchanger
    • Aluminized steel construction
    • Quiet operation
    • Flexible venting options

    CHPTA Cased Evaporator Coil

    The CHPTA cased evaporator coil ensures efficient cooling. It is made of all-aluminum to maximize surface area for optimal heat transfer. The coil features foil-faced insulation to prevent condensate formation and a UV-resistant drain pan for durability. Its factory-installed thermostatic expansion valve streamlines installation.

    • All-aluminum coil
    • Foil-faced insulation
    • Thermostatic expansion valve
    • UV-resistant drain pan

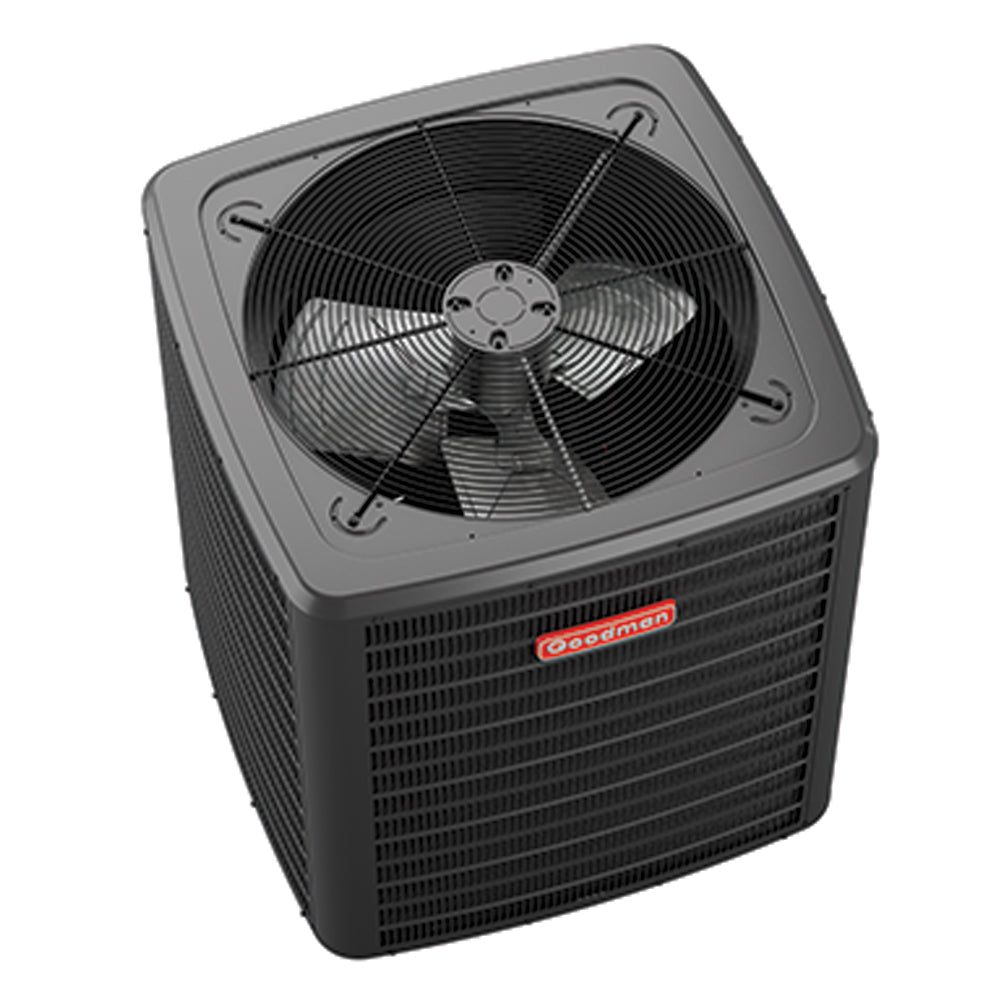

    GSZB4 Air Conditioner

    The GSZB4 air conditioner is made for efficient cooling. It has a high-capacity suction-line accumulator to prevent compressor damage and a crankcase heater to prevent refrigerant migration. Its compressor is energy-efficient, and the unit has a factory-installed muffler to reduce noise.

    • Energy-efficient compressor
    • Crankcase heater
    • Suction-line accumulator
    • High-capacity muffler
Specifications
Overview
Performance HSPF2
7.5
Performance SEER2
14.3
General Information Type
Heat Pump Condenser
Performance Capacity
3.0 Tons
Cooling BTU
36000
Product Depth
35.5 inches
Product Width
35.5 inches
Product Height
39.625 inches
Product Weight
214 lbs
Electrical Data Phase
1
Electrical Data Voltage
208/230 Volts
Electrical Data Frequency
60 Hz
Dimensions Suction Connection Size
7/8 inch
Dimensions Liquid Connection Size
3/8 inch
Certifications ETL Listed
Yes
Certifications ISO Certified
Yes
Certifications AHRI Certified
Yes
Maximum Sound Level
72 dB
Warranty Information Parts Warranty
5 Years
Warranty Information Compressor Warranty
Limited* 10 Years
General Information Installation Location
Outdoor
General Information Refrigerant Type
R-410A
General Information Operating Mode
Heating and Cooling
General Information Compressor Stages
Single Stage
General Information Product Line
GSZB4
Electrical Data Minimum Circuit Ampacity
21 Amps
Electrical Data Recommended Breaker Size
35 Amps
GMVC960803BN Performance AFUE
96%
GMVC960803BN Performance Heating BTU
80000
GMVC960803BN Electrical Data Phase
1
GMVC960803BN Electrical Data Voltage
115 Volts
GMVC960803BN Electrical Data Frequency
60 Hz
GMVC960803BN Electrical Data Minimum Circuit Ampacity
7.8 Amps
GMVC960803BN Electrical Data Recommended Breaker Size
15 Amps
GMVC960803BN Dimensions Cabinet Width
17.5 inches
GMVC960803BN Dimensions Product Depth
28.75 inches
GMVC960803BN Dimensions Product Width
17.5 inches
GMVC960803BN Dimensions Product Height
34.5 inches
GMVC960803BN Dimensions Product Weight
120 lbs
GMVC960803BN Certifications ETL Listed
Yes
GMVC960803BN Certifications ISO Certified
Yes
GMVC960803BN Certifications AHRI Certified
Yes
GMVC960803BN Dimensions Shipping Weight
120 lbs
GMVC960803BN General Information Type
Gas Furnace
GMVC960803BN General Information Fuel Type
Natural Gas
GMVC960803BN General Information Vent Type
Direct Vent
GMVC960803BN General Information Product Line
GMVC96
GMVC960803BN General Information Configuration
Upflow/Horizontal
GMVC960803BN General Information Blower Motor Type
ECM Variable-Speed
GMVC960803BN General Information Gas Conversion Kit
Available
GMVC960803BN General Information Modulating/Staging
Two Stage
GMVC960803BN Warranty Information Parts Warranty
5 Years
GMVC960803BN Warranty Information Heat Exchanger Warranty
20 Years
CHPTA3630B4 General Information Type
Evaporator Coil
CHPTA3630B4 General Information Configuration
Horizontal
CHPTA3630B4 General Information Product Line
CHPTA
CHPTA3630B4 General Information TXV Installed
Yes
CHPTA3630B4 General Information Casing
Cased
CHPTA3630B4 Performance Capacity
3.0 Tons
CHPTA3630B4 Performance Cooling BTU
36000
CHPTA3630B4 Dimensions Cabinet Width
17.5 inches
CHPTA3630B4 Dimensions Product Depth
21 inches
CHPTA3630B4 Dimensions Product Width
30 inches
CHPTA3630B4 Dimensions Product Height
17.5 inches
CHPTA3630B4 Dimensions Product Weight
51 lbs
CHPTA3630B4 Dimensions Suction Connection Size
7/8 inch
CHPTA3630B4 Dimensions Liquid Connection Size
3/8 inch
CHPTA3630B4 Certifications ETL Listed
Yes
CHPTA3630B4 Certifications ISO Certified
Yes
CHPTA3630B4 Certifications AHRI Certified
Yes
CHPTA3630B4 Warranty Information Warranty
10 Years
CHPTA3630B4 Warranty Information Parts Warranty
10 Limited Years
Bundle Overview Performance AFUE
96 %
Bundle Overview Performance EER2
11.5
Bundle Overview Performance Capacity
3.0 Tons
Bundle Overview Performance Cooling Capacity
36000 BTU
Bundle Overview Performance Heating BTU
80000
Bundle Overview Performance Maximum Air Flow
1200 CFM
Bundle Overview Certifications ETL Listed
Yes
Bundle Overview Certifications AHRI Certified
Yes
Bundle Overview Dimensions Product Weight
385 Pounds
Bundle Overview Dimensions Shipping Weight
420 Pounds
Bundle Overview General Information Coil Width
17.5 Inches
Bundle Overview General Information Configuration
Horizontal
Bundle Overview General Information Operating Mode
Heating and Cooling
Bundle Overview General Information Product Category
Furnace & Heat Pump Package
Bundle Overview General Information Refrigerant Type
R-410A
Bundle Overview Certifications AHRI Reference Number
210318948
GMVC960803BN Certifications AHRI Reference Number
7368834
GSZB403610 Electrical Data Minimum Circuit Ampacity
21 Amps
GSZB403610 Electrical Data Recommended Breaker Size
35 Amps
