GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GCVC800805CX CHPTA3630C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,167.00
$5,167.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GCVC800805CX Gas Furnace Variable Speed ECM Two Stage Downflow Horizontal 100000 BTUH Low NOx ComfortBridge Technology compatible Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Product Line
GSZB4
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU

View More

LTL Delivery

This product weighs 430 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

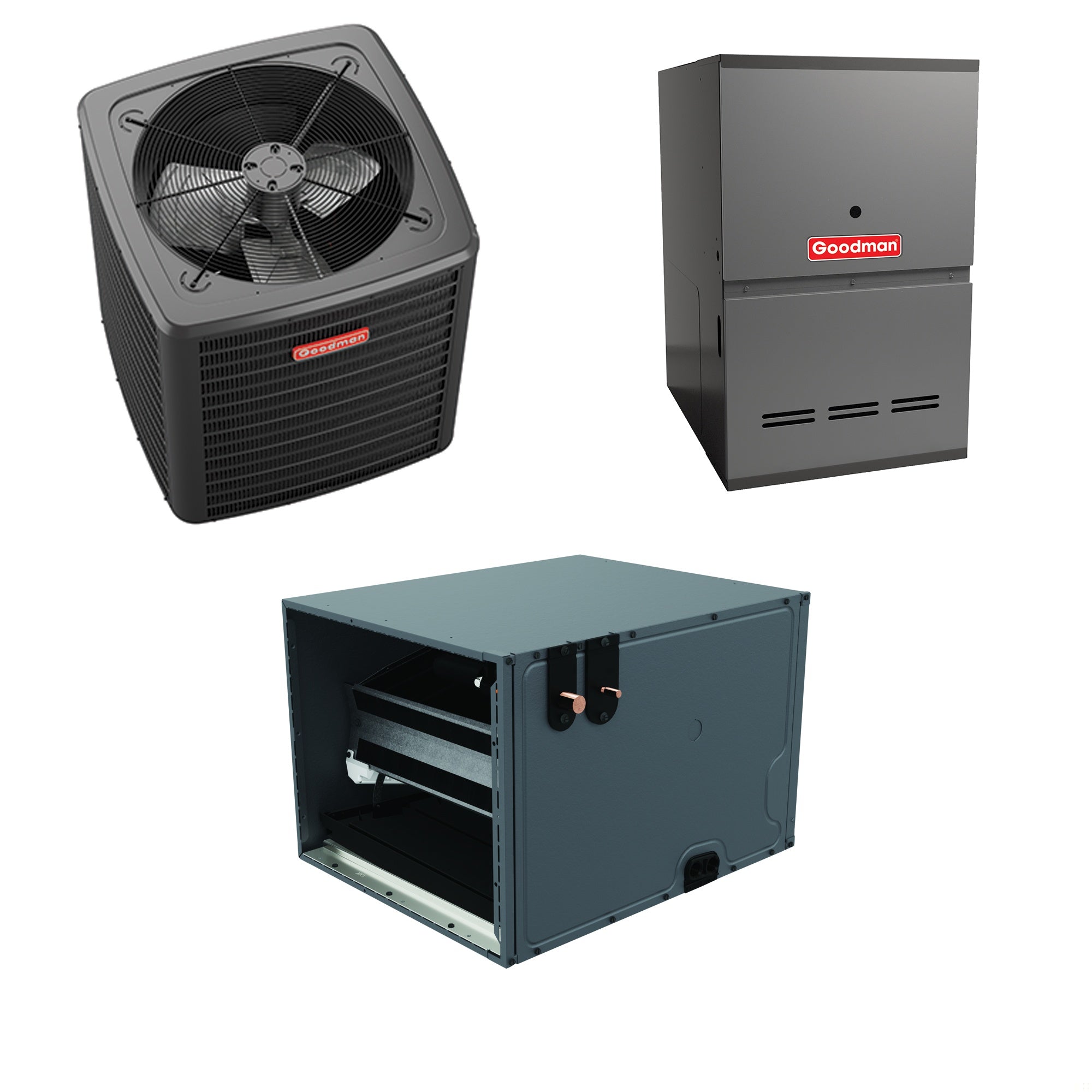

The Goodman GSZB403610 GCVC800805CX CHPTA3630C4 Bundle System

The Goodman GSZB403610 GCVC800805CX CHPTA3630C4 is a comprehensive HVAC solution, including a heat pump, furnace, and evaporator coil. This bundle is designed for optimal performance and durability, making it a reliable choice for various climates. The bundle contains the Goodman GSZB4 heat pump, the GCVC80 furnace, and the CHPTA cased evaporator coil, all working in harmony to provide efficient heating and cooling for your home.

The Goodman GSZB403610 Heat Pump

The Goodman GSZB403610 is a 3.0-ton heat pump featuring a single-stage compressor and an energy-efficient design. It includes aluminum fins and copper tubing in the condenser coil to enhance heat transfer. The unit also has a factory-installed suction-line accumulator and compressor crankcase heater.

  • 3.0 tons capacity
  • 36000 BTU cooling/heating capacity
  • 14.3 SEER2
  • 72 dB maximum sound level
  • R-410A refrigerant

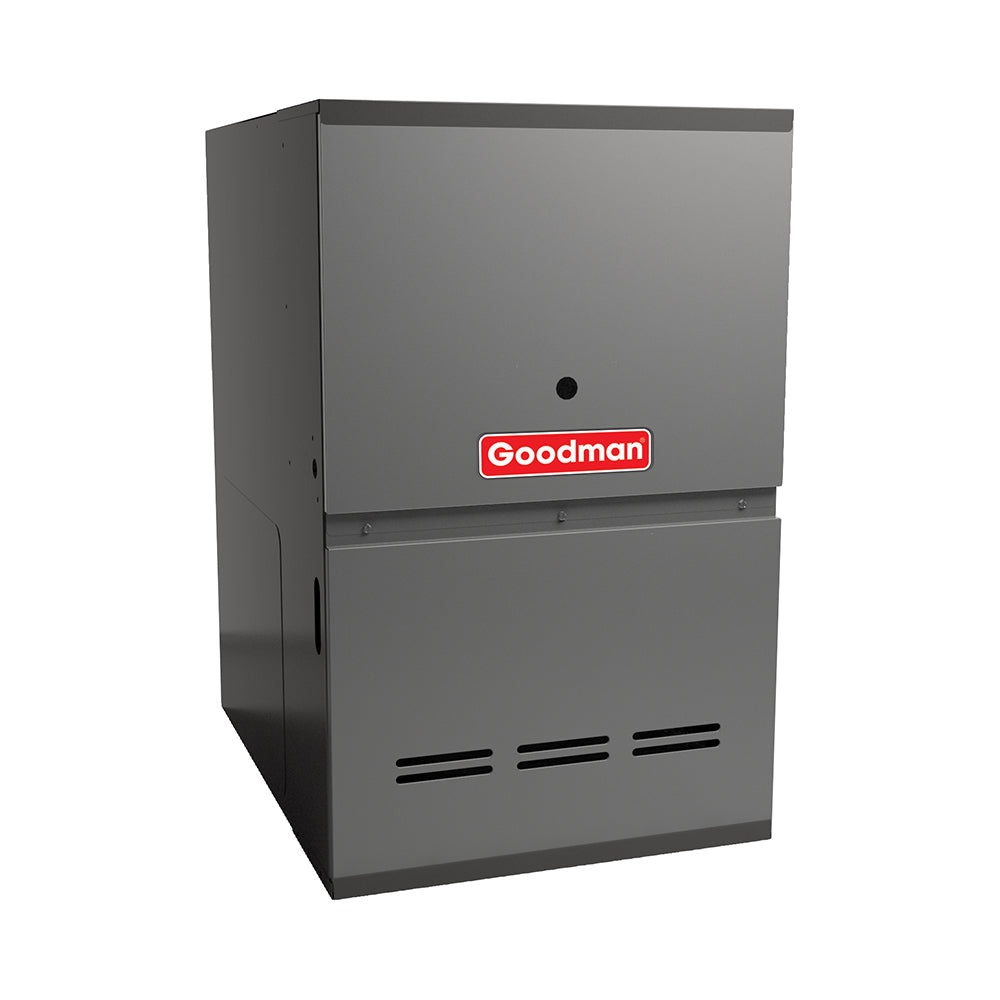

The GCVC800805CX Gas Furnace

The GCVC800805CX is a gas furnace from Goodman that provides 80,000 BTU/hr heating capacity. It features a heavy-duty tubular heat exchanger made of aluminized steel for efficient heat transfer. The furnace also includes a variable-speed ECM motor for precise temperature control.

  • 80,000 BTU heating capacity
  • 80% AFUE
  • 33.5 inches height, 21 inches width, 28 inches depth
  • 10-year parts warranty
  • Lifetime heat exchanger warranty

The CHPTA3630C4 Evaporator Coil

The CHPTA3630C4 is a cased evaporator coil designed for horizontal installation. It features an all-aluminum design to maximize heat transfer and efficiency. The coil also includes a factory-installed internal thermostatic expansion valve to maintain ideal refrigerant flow.

  • 3.0 tons capacity
  • 36000 BTU cooling capacity
  • 21 inches height, 30 inches width, 21 inches depth
  • 10-year parts warranty
Specifications
Overview
Product Line
GSZB4
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
Maximum Sound Level
72 dB
Refrigerant Type
R-410A
SEER2
14.3
HSPF2
7.5
General Information
Outdoor Installation
Compressor Stages
Single Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Product Height
39.625 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
214 Pounds
GSZB403610 General Information
Heat Pump Condenser
AHRI Certified
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty
5 Years Parts, Limited 10 Years Compressor
Gas Furnace
GCVC80
Heating BTU
80000
AFUE
80%
Blower Motor Type
ECM Variable-Speed
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Cabinet Width
21 Inches
Product Height
33.5 Inches
Product Depth
28 Inches
Product Weight
125 Pounds
Voltage
115 Volts
Phase
1
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Warranty
10 Years Parts, Lifetime Heat Exchanger
CHPTA3630C4 Evaporator Coil
3.0 Tons
Nominal Minimum Cooling Capacity
36000 BTU
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
55 Pounds
Refrigerant Type
R-410A
Configuration
Horizontal
Casing
Cased
TXV Installed
Yes
AHRI Certified
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty
10 Years Parts
Bundle Overview
Furnace & Heat Pump Package
General Information
Heating and Cooling
Blower Motor Type
ECM Variable-Speed
Compressor Stages
Single Stage
Cooling Capacity
36000 BTU
Heating BTU
80000
AFUE
80 %
EER2
11.5
HSPF2
7.5
Nominal Cooling Capacity
36000 BTU
Maximum Air Flow
2000 CFM
Refrigerant Type
R-410A
Configuration
Horizontal
General Information
DOE Regional Compliance
AHRI Certified
Yes
ETL Listed
Yes
Shipping Weight
429 Pounds
