GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVC800803BN CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,010.00
$5,010.00

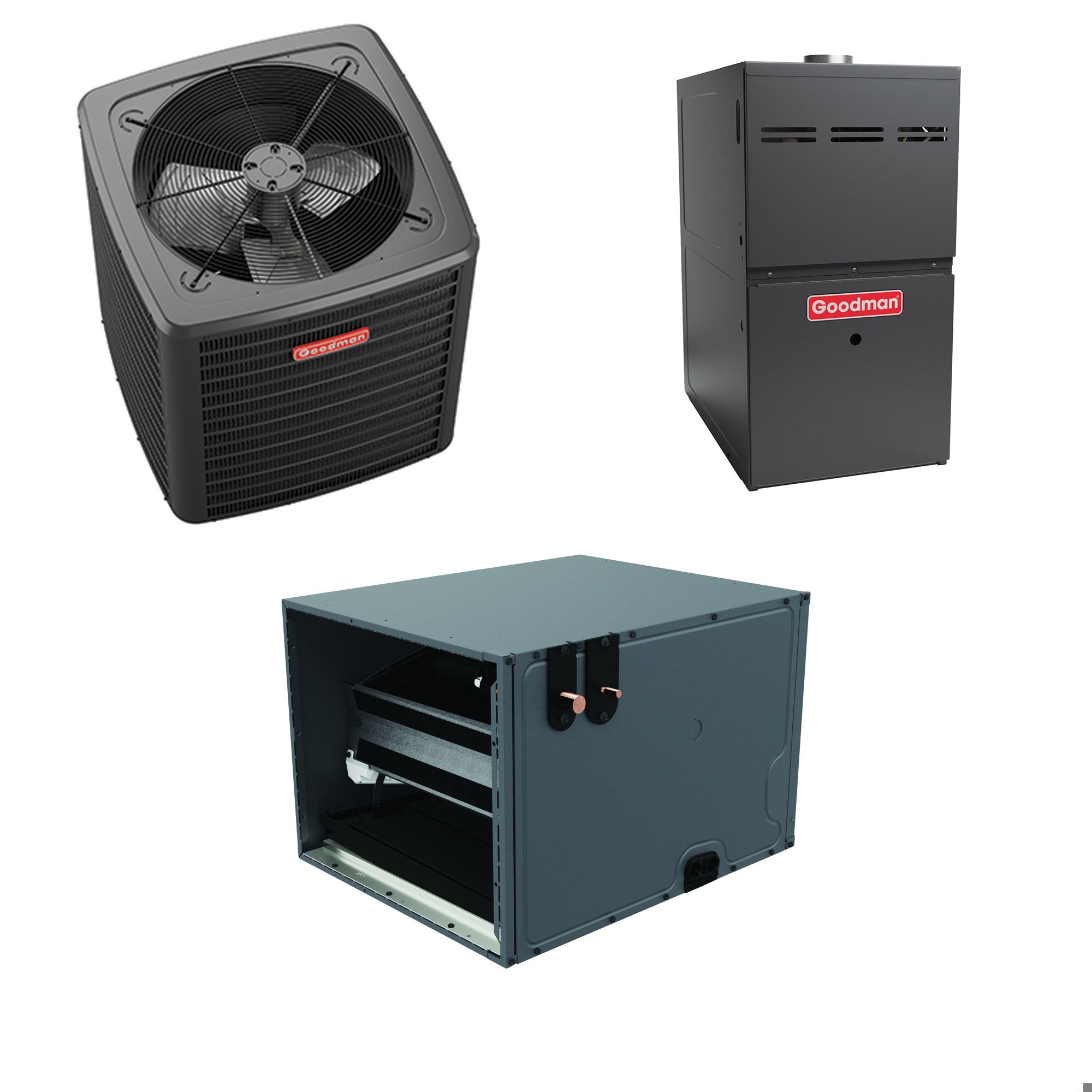

Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman GMVC800803BN GMVC80 Series 80% AFUE - 80,000 BTU - Horizontal/Upflow - Furnace Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

Product Category
Hybrid Fuel Split Systems
Type
Heat Pump Condenser
Product Line
GSZB4

View More

LTL Delivery

This product weighs 411 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB403610 GMVC800803BN CHPTA3630B4 bundle system offers an efficient and reliable HVAC solution. This comprehensive kit includes the GSZB4 air conditioner, GMVC80 gas furnace, and CHPTA evaporator coil, designed for ease of installation and long-term durability.

  • Advanced Heat Exchanger Design in the GCVC80 furnace
  • Variable Speed ECM Motor in the GMVC80 unit
  • ComfortBridge™ Technology for customized indoor comfort
  • All-aluminum coil in the CHPTA evaporator
  • Energy-efficient compressor in the GSZB4 unit

Product Highlights

The Goodman GSZB403610 GMVC800803BN CHPTA3630B4 heat pump and furnace kit is tailored for optimal comfort and efficiency. This kit features cutting-edge technology and robust components to ensure long-lasting performance.

Product Information

The Goodman GSZB403610 GMVC800803BN CHPTA3630B4 Bundle System

The Goodman GSZB403610 GMVC800803BN CHPTA3630B4 bundle system includes a GSZB4 heat pump, a GMVC80 gas furnace, and a CHPTA evaporator coil. This system provides a balanced solution for heating and cooling needs, making it suitable for various climates.

  • Heat Exchanger Design: The GCVC80 furnace employs a heavy-duty tubular heat exchanger made of aluminized steel for efficient heat transfer.
  • Variable Speed ECM Motor: The GMVC80 features a variable speed motor that adjusts based on the heating or cooling demand.
  • All-Aluminum Coil: The evaporator coil in the CHPTA unit uses an all-aluminum design for reliable and efficient heat transfer.
  • Energy-Efficient Compressor: The GSZB4 unit comes with an energy-efficient compressor for optimized refrigerant flow.

The Goodman GSZB403610 Air Conditioner

The GSZB403610 air conditioner is a robust heat pump designed to deliver efficient cooling and heating. It features:

  • Copper tube and enhanced aluminum fin coil
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler

The GMVC800803BN Gas Furnace

The GMVC800803BN gas furnace is designed for quiet operation and effective heating. Key features include:

  • ComfortBridge™ Technology
  • Heavy-duty tubular heat exchanger
  • Variable speed ECM motor
  • Quiet gas valve and blower

The CHPTA3630B4 Cased Evaporator Coil

The CHPTA3630B4 evaporator coil offers efficient cooling performance. It is cased and includes:

  • All-aluminum design
  • Internal thermostatic expansion valve
  • Condensate management features
  • Foil-faced insulation
Specifications
Overview
Product Category
Hybrid Fuel Split Systems
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
Capacity
3.0 Tons
Cooling BTU
36000
Heating Capacity
36000 BTU
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Product Height
39 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
AHRI Certified
Yes
Compressor Warranty
Limited* 10 Years
Parts Warranty
5 Years
Product Category
Furnace
Type
Gas Furnace
Product Line
GMVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
AFUE
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
No
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Shipping Weight
110 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
202327716
Heat Exchanger Warranty
Lifetime Years
Parts Warranty
10 Years
Product Category
Evaporator Coil
Type
Evaporator Coil
Product Line
CHPTA
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
TXV Installed
Yes
Capacity
3.0 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
51 Pounds
Shipping Weight
66 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
Performance AFUE
80 %
Performance SEER2
14.3
Performance HSPF2
7.5
