Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

Features

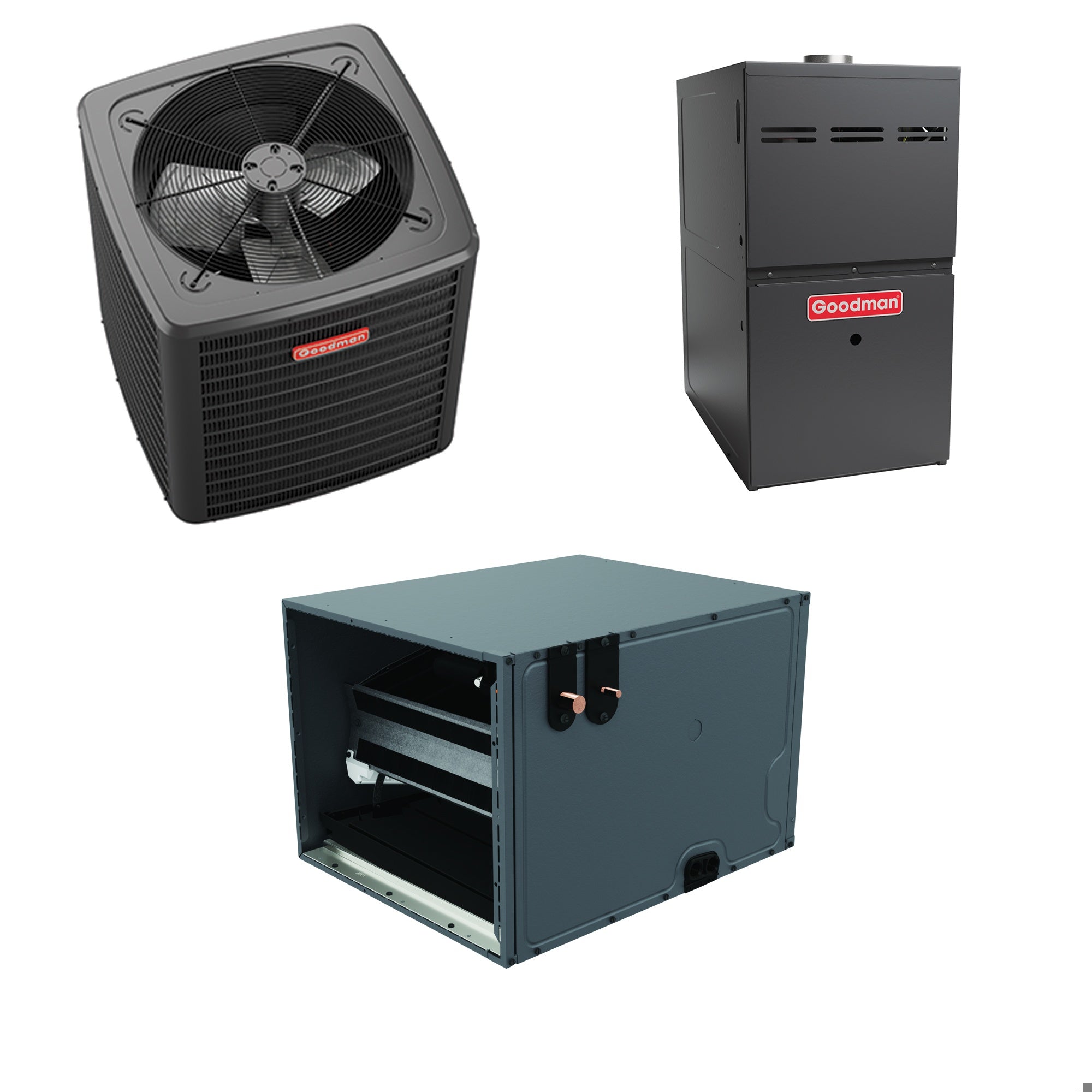

The Goodman GSZB403610 GMVC800805CN CHPTA3630C4 bundled system combines a heat pump, furnace, and evaporator coil for complete home comfort. This kit includes the Goodman GSZB4 air conditioner, GMVC80 furnace, and cased CHPTA evaporator coil.

• Heavy-duty tubular heat exchanger design.
• Variable speed ECM motor for efficient temperature control.
• Quiet operation with low sound levels.
• ComfortBridge™ technology for customized comfort.
• All-aluminum evaporator coil for efficient heat transfer.
• Energy-efficient compressor with Smartshift™ technology.

Product Highlights

A comprehensive HVAC solution with advanced features for enhanced performance and comfort.

Product Information

Standard Information

• Bundle System: Goodman GSZB403610 GMVC800805CN CHPTA3630C4

Goodman GSZB403610 Air Conditioner

The Goodman GSZB403610 is a 3.0-ton heat pump designed for efficient cooling and heating. It features a single-stage compressor and operates with R-410A refrigerant.

• Maximum cooling capacity: 36,000 BTU
• Maximum heating capacity: 36,000 BTU
• SEER2 rating: 14.3
• HSPF2 rating: 7.5
• Quiet operation with a maximum sound level of 72 dB

Goodman GMVC800805CN Gas Furnace

The GMVC800805CN is an 80% AFUE, 80,000 BTU gas furnace with a two-stage variable speed ECM motor. It offers reliable heating with a tubular heat exchanger made of aluminized steel for efficient heat transfer.

• Maximum heating capacity: 80,000 BTU
• Low sound levels for quiet operation
• ComfortBridge™ technology for system performance monitoring
• Galvanized steel cabinet with a durable powder-paint finish

Goodman CHPTA3630C4 Cased Evaporator Coil

The CHPTA3630C4 is a 3.0-ton cased evaporator coil with an all-aluminum design. It includes a thermostatic expansion valve for ideal refrigerant flow and a DecaBDE-free thermoplastic drain pan for condensate management.

• Maximum cooling capacity: 36,000 BTU
• Factory-installed TXV
• Horizontal configuration
• 21-inch cabinet width
