Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow

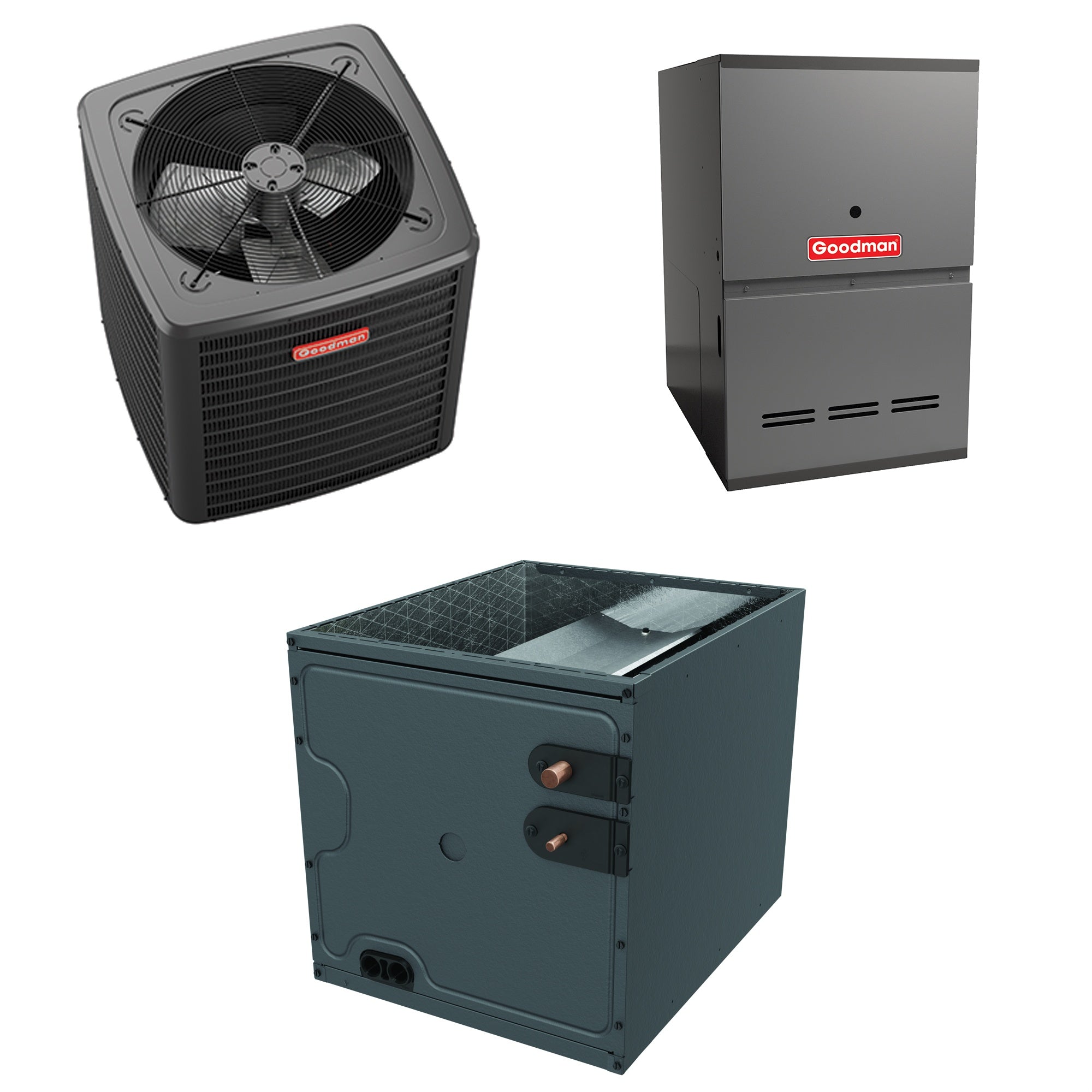

Goodman GSZB403610 GCVC800803BX CAPTA3626B4 Bundle System

The Goodman GSZB403610 GCVC800803BX CAPTA3626B4 heat pump and furnace kit offers an efficient way to upgrade your homes HVAC system. This kit includes the GSZB4 air conditioner, GCVC80 furnace, and CAPTA cased evaporator coil, ensuring temperature control and durability. Each component is designed to ease the installation process while offering long-term reliability.

Product Highlights

• Heavy-duty tubular heat exchanger for efficient heat transfer
• Variable speed ECM motor for quiet and efficient operation
• ComfortBridge™ technology for continuous system monitoring
• All-aluminum coil for optimal heat transfer

The Goodman GSZB403610 Air Conditioner

The GSZB403610 is a 3.0 Ton heat pump with 14.3 SEER2 efficiency. It features a single-stage compressor and operates with R-410A refrigerant. The condenser coil utilizes aluminum fins and copper tubing to maximize efficiency.

Key Features

• Energy-efficient compressor
• Smartshift™ technology for quiet transitions
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater

GCVC800803BX Gas Furnace

The GCVC800803BX is a gas furnace with 80% AFUE and heating capacity of 80,000 BTU/Hr. It features a heavy-duty tubular heat exchanger and a variable speed ECM motor. The furnace also includes ComfortBridge™ technology for system monitoring.

Key Features

• Quiet operation with variable-speed motor
• Two-stage modulating/staging
• Heavy-gauge galvanized-steel cabinet
• 10-year limited parts warranty

CAPTA3626B4 Cased Evaporator Coil

The CAPTA3626B4 is a 3-Ton cased evaporator coil designed for upflow/downflow configurations. It features an all-aluminum coil and an internal thermostatic expansion valve to maintain ideal refrigerant flow. The unit is encased for ease of installation and longevity.

Key Features

• Foil-faced insulation for condensate management
• Rust-resistant thermoplastic drain pan
• Factory-installed TXV
• 5-year warranty when registered
