GOODMAN
Brand: GOODMAN
SKU: GSZB403610 GMVC800603BX CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,829.00
$4,829.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage (GMVC800603BX) Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump

View More

LTL Delivery

This product weighs 406 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

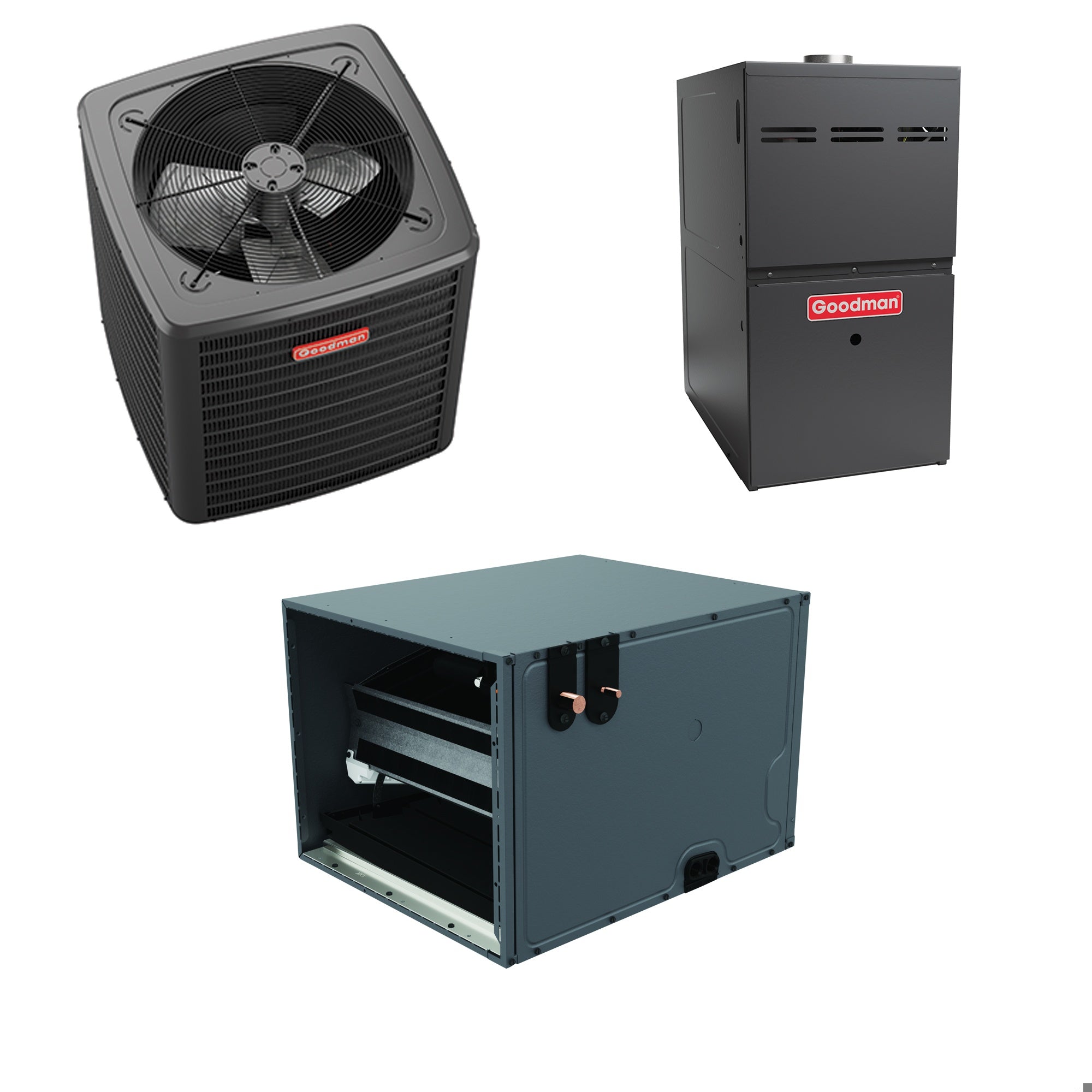

Goodman GSZB403610 GMVC800603BX CHPTA3630B4 Bundle System

This Goodman heat pump and furnace system provides a comprehensive HVAC solution for your home. Designed for durability and ease of installation, this kit includes the GSZB4 air conditioner, GMVC80 furnace, and CHPTA cased evaporator coil. Each component works together to offer efficient heating and cooling, making it ideal for many regions.

Features:

  • GSZB4 air conditioner, GMVC80 furnace, and CHPTA evaporator coil included
  • Efficient heating and cooling capabilities
  • Durable construction ensuring long-term use
  • Ease of installation

Goodman GSZB4 Air Conditioner

The GSZB4 air conditioner is designed to provide reliable cooling with a variety of advanced features. It utilizes a copper tube and enhanced aluminum fin coil to maximize efficiency.

Key Features:

  • 3.0 tons cooling capacity
  • 14.3 SEER2 efficiency rating
  • Single-stage compressor
  • Energy-efficient design

Goodman GMVC80 Furnace

The GMVC80 furnace offers robust heating with an 80% AFUE efficiency. It features a variable-speed ECM motor and a heavy-duty aluminized steel tubular heat exchanger.

Key Features:

  • 60,000 BTU/hr heating capacity
  • Variable-speed motor
  • Quiet operation
  • ComfortBridge™ technology

Goodman CHPTA Evaporator Coil

The CHPTA evaporator coil is designed for efficient heat transfer. It features an all-aluminum construction with fins and grooved tubes, and includes a factory-installed thermostatic expansion valve for optimal refrigerant flow.

Key Features:

  • 3.0 tons cooling capacity
  • Horizontal configuration
  • Aluminum construction
  • Internal thermostatic expansion valve

The Goodman heat pump and furnace system is sold as a bundle but each component plays a critical role in delivering optimal performance. The GSZB4 air conditioner ensures efficient cooling, the GMVC80 furnace provides reliable heating, and the CHPTA evaporator coil enhances heat transfer for overall system efficiency.

Specifications
Overview
Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Capacity
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
ETL Listed
Yes
ISO Certified
Yes
Energy Star Listed
No
Compressor Warranty
Limited* 10 Years
Parts Warranty
5 Years
AHRI Certified
Yes
General Information
Furnace & Heat Pump Package
Coil Width
17.5 Inches
AFUE
80 %
EER2
11.5
Nominal Cooling Capacity
36000 BTU
Maximum Air Flow
1200 CFM
Heating BTU
60000
Weight
370 Pounds
Certifications
ETL Listed
General Information
Heating and Cooling
General Information
Modulating/Staging
General Information
ECM Variable-Speed
General Information
Single Stage
Refrigerant Type
R-410A
AHRI Reference Number
210318941
Product Line
CHPTA
General Information
Evaporator Coil
General Information
Horizontal
General Information
Cased
Performance
Cooling BTU
Full Product Depth
21 Inches
Cabinet Width
17.5 Inches
Full Product Width
30 Inches
Product Full Depth
21 Inches
Product Height
17.5 Inches
Weight
51 Pounds
Shipping Weight
66 Pounds
ETL Listed
Yes
ISO Certified
Yes
Performance
Cooling Capacity
Nominal Minimum Cooling Capacity
36000 BTU
Performance
36000 BTU
Warranty Information
10 Years
Configuration
Upflow/Horizontal
General Information
Gas Furnace
Blower Motor Type
ECM Variable-Speed
General Information
Natural Gas
General Information
Chimney Vent
General Information
Vent Type
Phase
1
Voltage
115 Volts
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17.5 Inches
Product Width
17.5 Inches
Product Depth
28 Inches
Product Height
33.5 Inches
Shipping Weight
105 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
AFUE
80 %
Heating BTU
60000
Low Fire Input
42000 BTU
High Fire Input
60000 BTU
Low Fire Output
33600 BTU
High Fire Output
48000 BTU
Maximum Air Flow
1200 CFM
Low NOx Emissions
Yes
Ultra Low NOx Emissions
No
Heat Exchanger Warranty
Lifetime Years
General Information
GMVC80
