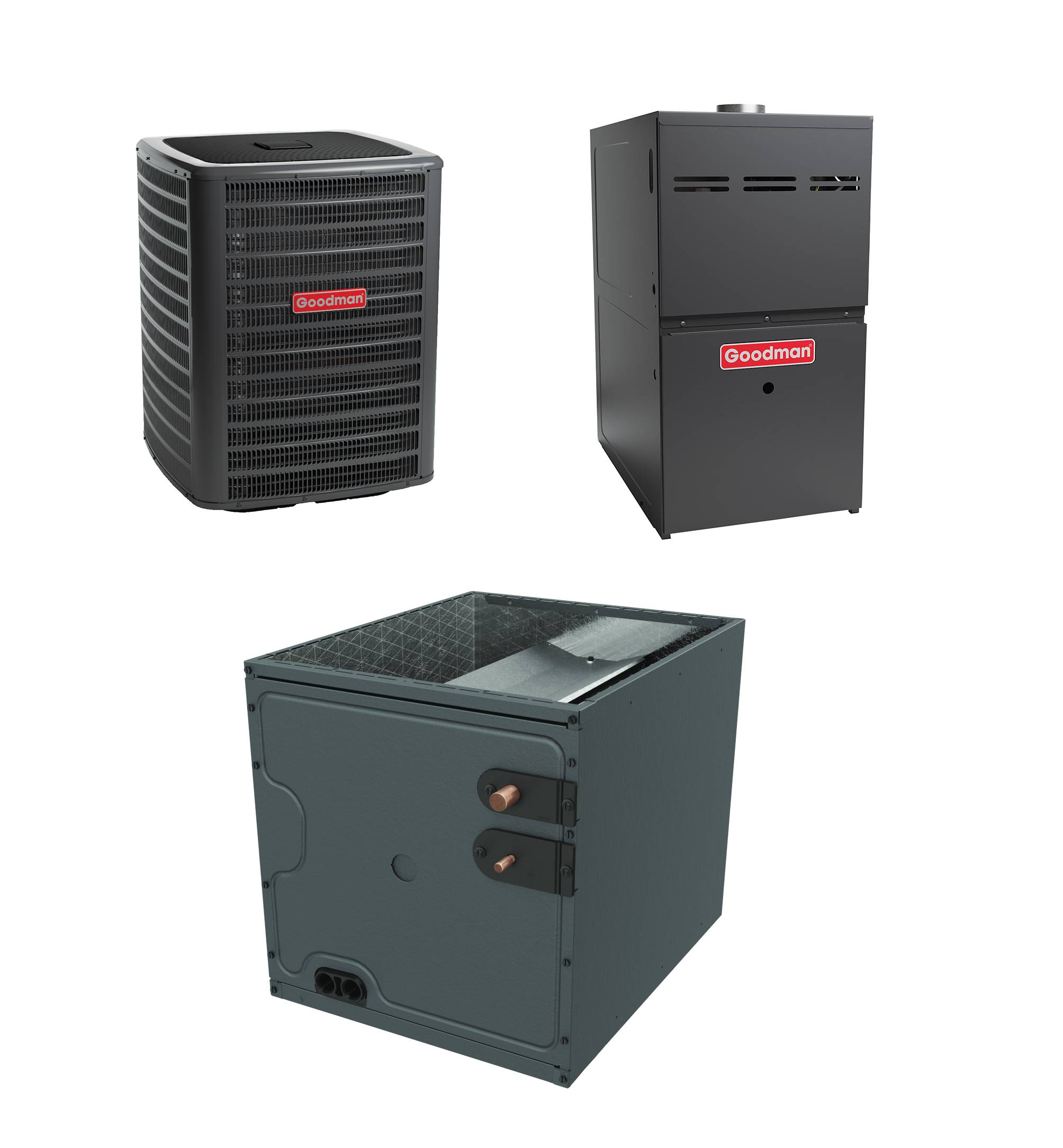

Goodman - 3.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Upflow: GSXN403610, GM9S800604BN, CAPTA4230C4 and an AHRI Rating of 208800014 Goodman’s central air and furnace bundle will provide an all-in-one solution for your home's HVAC system. This bundle contains a GSXN4 air conditioner, a GM9S96 furnace, and a cased CAPT evaporator coil; all designed to serve the needs of residents for most parts of the country. It's the perfect bundle for areas that use an average amount of cooling, but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation, as well as long-term value. If you're looking for an all-in-one package that will provide year round comfort, backed by superior craftsmanship, the Goodman GSXN403610, GM9S800604BN, CAPTA4230C4 air conditioner and furnace bundle is your go-to choice!
All-Aluminum Coil Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
Internal Thermostatic Expansion Valve The CAPT has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
Condensate Management The CAPT features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
Advanced Heat Exchanger Design The GM9S96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity. furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
Secondary Heat Exchanger This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
Quiet Comfort The blower, motor, and gas valve of the GM9S96 were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.
Venting Options The GM9S96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
Easy Integration The GM9S96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
Energy-Efficient Compressor This unit utilizes an energy-efficient compressor to provide refrigerant flow.
Copper Tube/Enhanced Aluminum Fin Coil The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
Heavy-Gauge Galvanized-Steel Cabinet This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
Factory-Installed Filter Drier A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
Extended Warranty Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Note The recommended line set size for this system will vary based on the length of line set you require for installation. The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components.
