Goodman - 3.0 Ton Cooling - 36k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2
Goodman - 3.0 Ton Cooling - 36k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2
Goodman - 3.0 Ton Cooling - 36k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

Goodman - 3.0 Ton Cooling - 36k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

GOODMAN
Brand: GOODMAN
SKU: GSZB403610 AMST36BU1400
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,914.00
$3,914.00
Bundle Includes

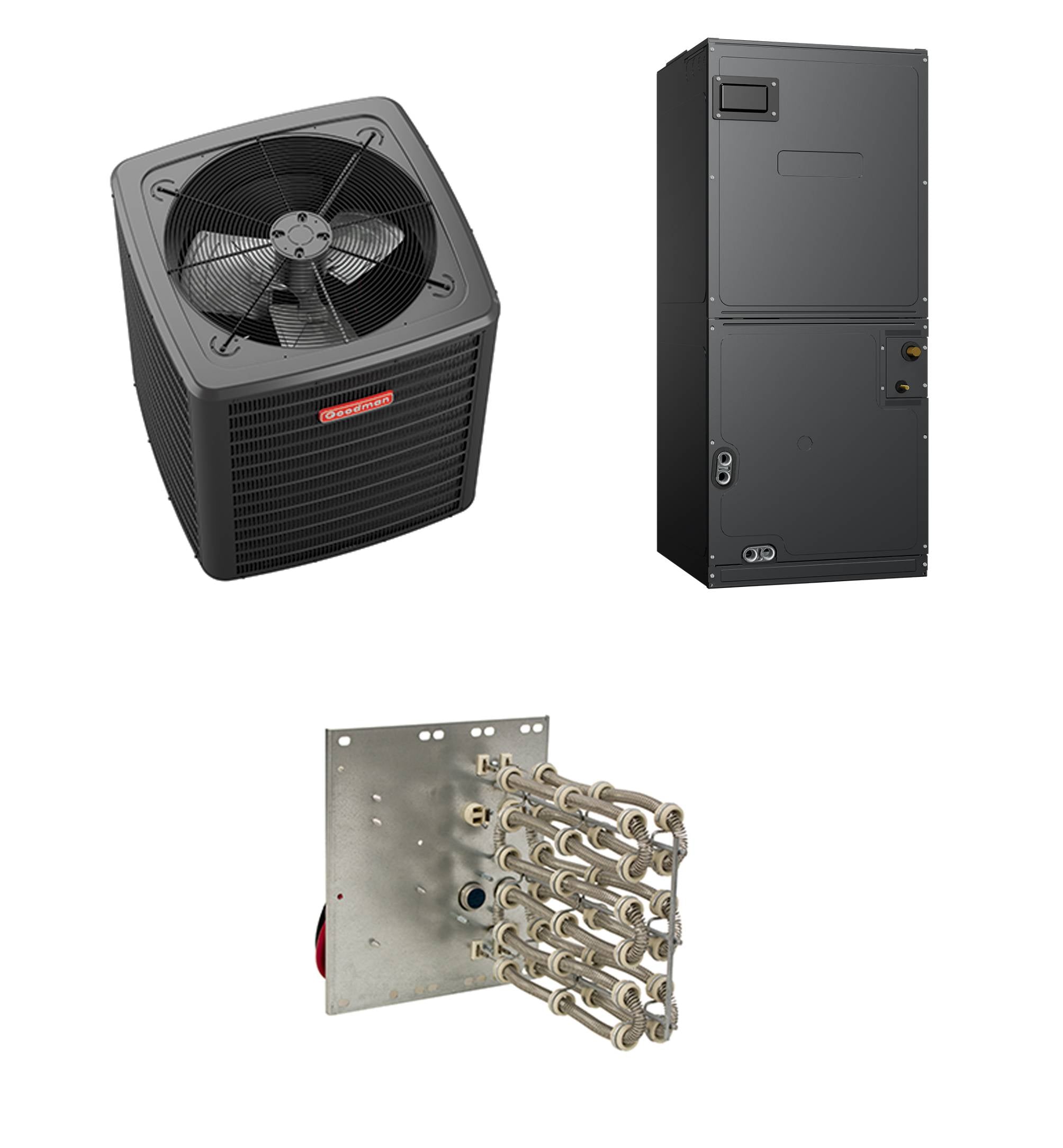

Goodman - 3.0 Ton Cooling - 36k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2 + Electric Heat Kit Quantity: 1
Manuals:

Specification Highlights

Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 364 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

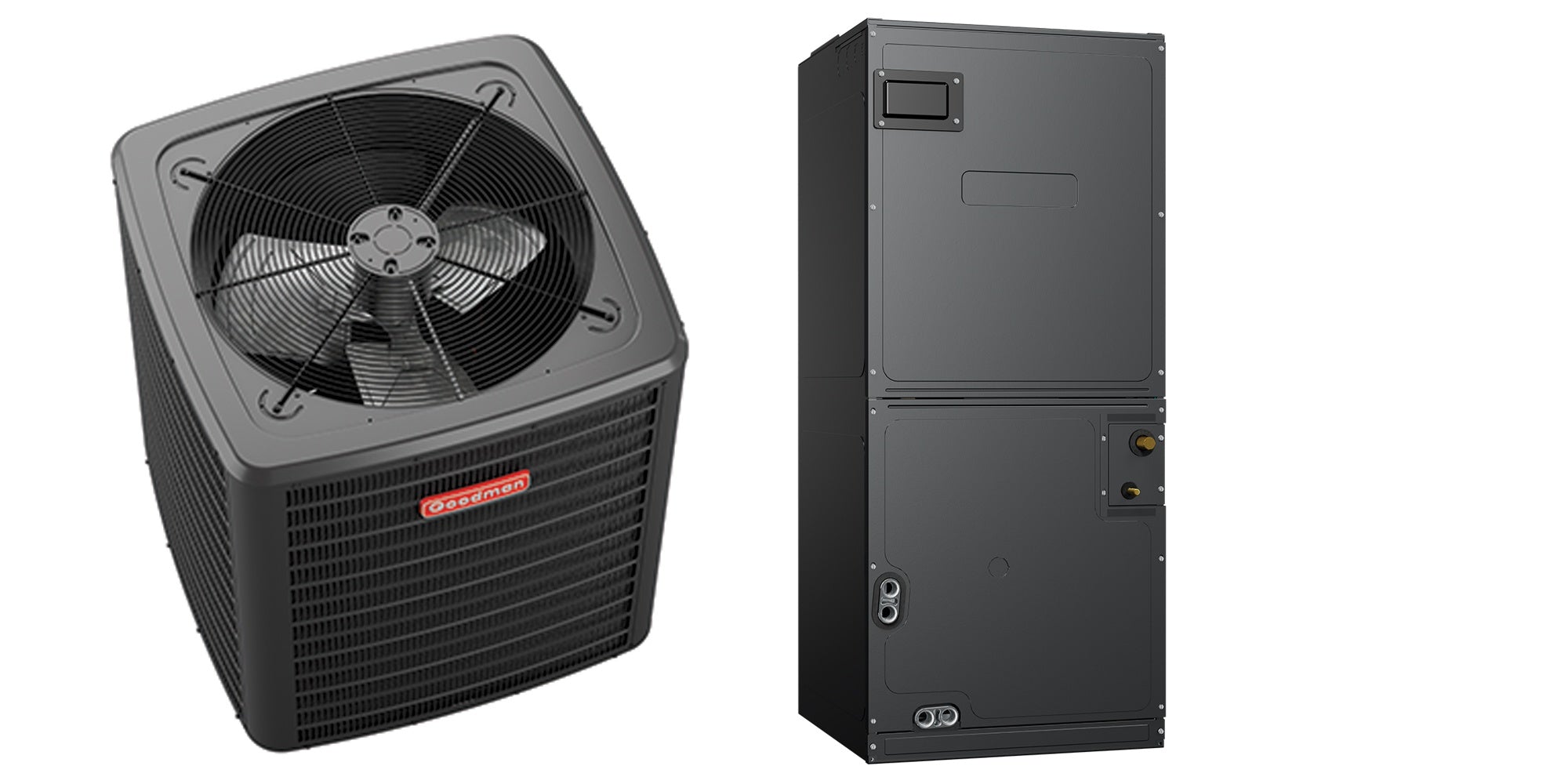

Overview for Goodman GSZB403610 AMST36BU1400

The Goodman GSZB403610 AMST36BU1400 Heat Pump and Air Handler System is designed to enhance the HVAC efficiency of your home. The system comprises a GSZB403610 heat pump for both heating and cooling needs, coupled with an AMST36BU1400 air handler. Goodman heat pumps are known for their aluminum fins with a larger surface area, improving efficiency. The multi-speed air handler adjusts the air flow to maximize the heat pumps performance, delivering year-round comfort.

Features of the Goodman GSZB403610 Heat Pump

This heat pump features aluminum fins and copper tubing to maximize efficiency. The Smartshift™ technology ensures a quiet, smooth defrost mode. It comes with a factory-installed suction-line accumulator, compressor crankcase heater, and high-capacity muffler for reliability and noise reduction. The cabinet is built with heavy-gauge galvanized steel for durability.

  • Aluminum fins and copper tubing
  • Smartshift™ technology for smooth defrost mode
  • Factory-installed suction-line accumulator
  • Heavy-gauge galvanized steel cabinet

Features of the Goodman AMST36BU1400 Air Handler

The AMST36BU1400 air handler includes a factory-installed internal thermostatic expansion valve for optimal refrigerant flow. It has a direct-drive, multi-speed blower motor for efficient air circulation and an all-aluminum evaporator coil for reliable performance. The SmartFrame™ sub-structure enhances accessibility and includes a thermoplastic drain pan for effective condensate management.

  • Internal thermostatic expansion valve
  • Direct-drive, multi-speed blower motor
  • All-aluminum evaporator coil
  • SmartFrame™ sub-structure

Product Highlights

The Goodman GSZB403610 AMST36BU1400 system is a combination of a 3.0-ton heat pump and a 3.0-ton air handler. It provides 36,000 BTU/Hr heating and cooling capacity, operating with R-410A refrigerant. The heat pump has a SEER2 rating of 14.3 and HSPF2 of 7.5. This system ensures efficient and reliable performance with various factory-installed components.

Specifications
Overview
Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Configuration
Multi-Position
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
3.0 Tons
Cooling Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
Maximum Air Flow
1060 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Cabinet Width
17.5 Inches
Product Weight
328 Pounds
Shipping Weight
363 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318839
Heat Pump Condenser
GSZB403610
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Cooling BTU
36000
SEER2
14.3
HSPF2
7.5
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Product Height
39.625 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
214 Pounds
Shipping Weight
234 Pounds
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
Warranty
5 Years Parts, Limited 10 Years Compressor
Air Handler
AMST36BU1400
Product Line
AMST
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
TXV Installed
Yes
Cooling BTU
36000
Maximum Air Flow
995 CFM
Minimum Air Flow
750 CFM
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
5.6 Amps
Recommended Breaker Size
15/15 Amps
Cabinet Width
17.5 Inches
Product Height
57.4375 Inches
Product Depth
21 Inches
Product Weight
114 Pounds
Shipping Weight
129 Pounds
ETL Listed
Yes
ISO Certified
Yes
Warranty
10 Years Limited Parts
