GOODMAN
Brand: GOODMAN
SKU: GSZB403610 AMST42CU1400
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,992.00
$3,992.00
Bundle Includes
Goodman GSZB403610 GSZB 3 Ton 14.3 SEER2 Energy-Efficient Split System Heat Pump w/ R410A Refrigerant Quantity: 1
Goodman AMST42CU1400 AMST Series 3.5 Ton - Multi-Position - ECM - Air Handler Quantity: 1
Manuals:

Specification Highlights

Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 388 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

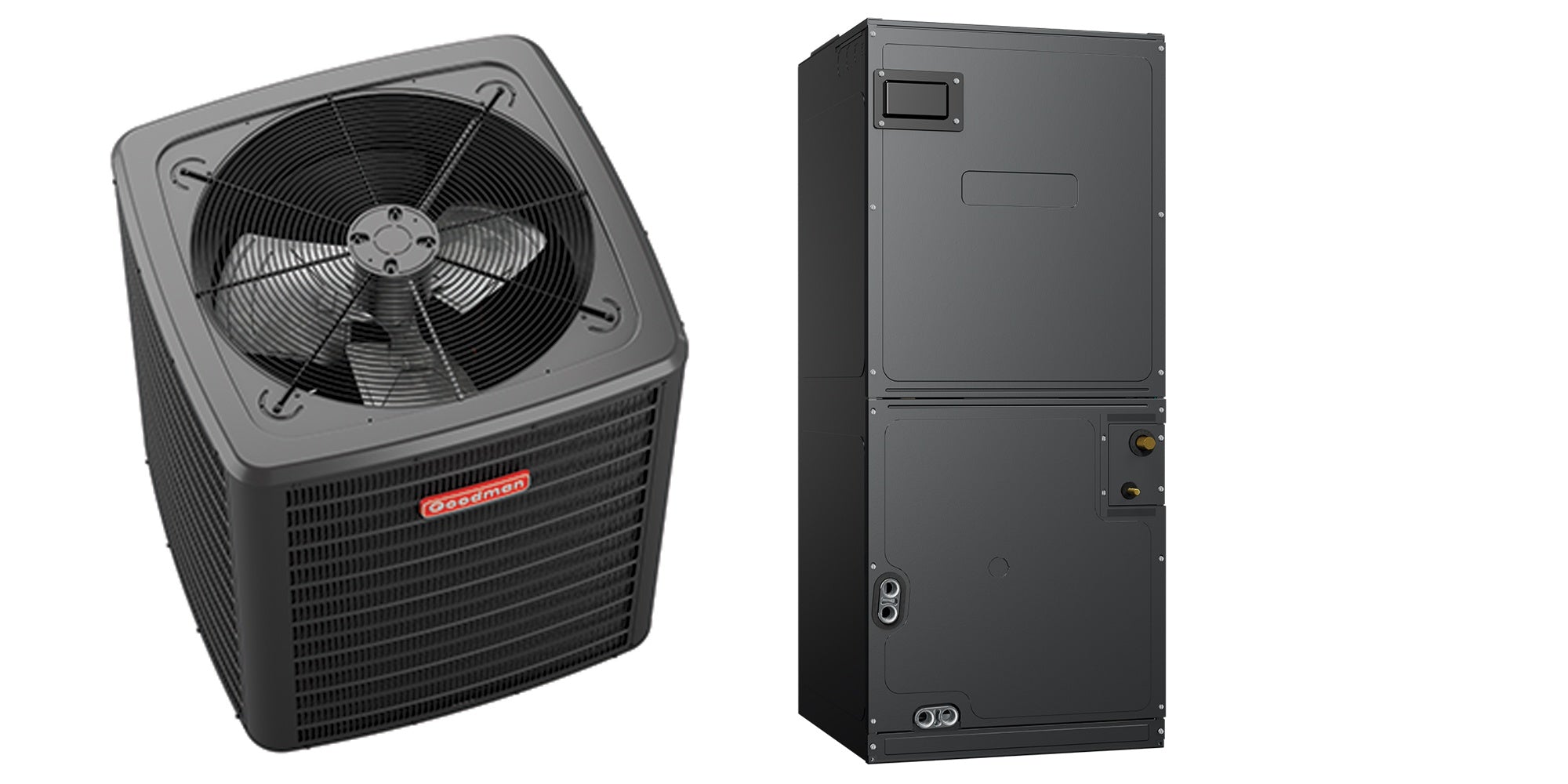

Goodman GSZB403610 AMST42CU1400 Bundle System

The Goodman GSZB403610 AMST42CU1400 bundle is a comprehensive HVAC solution designed for both heating and cooling needs. This system includes the GSZB403610 heat pump and the AMST42CU1400 air handler, providing efficient and reliable temperature control for your home. The heat pump features aluminum fins with increased surface area for maximum efficiency, while the air handler supports multiple air speed settings to optimize performance.

Key Features

  • Factory-installed internal thermostatic expansion valve for ideal refrigerant flow.
  • Multi-speed blower motor ensures efficient air circulation.
  • All-aluminum evaporator coil for optimized heat transfer and reliability.
  • Rigid SmartFrame™ sub-structure for enhanced accessibility and installation speed.
  • DecaBDE-free thermoplastic drain pan for effective condensate management.
  • Energy-efficient compressor enhances refrigerant flow.
  • Smartshift™ technology for smooth defrost mode transitions.
  • Aluminum fins and copper tubing in the condenser coil for improved efficiency.
  • Factory-installed suction-line accumulator to prevent compressor damage.
  • Galvanized-steel cabinet with a durable architectural gray powder-paint finish.

Goodman GSZB403610 Heat Pump

The Goodman GSZB403610 heat pump is designed to provide comprehensive heating and cooling. It includes features that maximize efficiency and reliability, making it ideal for a wide range of applications.

  • Capacity: 3.0 Tons
  • Cooling Capacity: 36000 BTU
  • Heating Capacity: 36000 BTU
  • SEER2: 14.3, HSPF2: 7.5
  • Compressor Stages: Single Stage
  • Refrigerant Type: R-410A
  • Maximum Sound Level: 72 dB
  • Heavy-Gauge Galvanized-Steel Cabinet

Goodman AMST42CU1400 Air Handler

The Goodman AMST42CU1400 air handler complements the heat pump by offering multiple air speed settings and a robust design for efficient air circulation.

  • Capacity: 3.5 Tons
  • Cooling Capacity: 42000 BTU
  • Maximum Air Flow: 1495 CFM
  • Minimum Air Flow: 1165 CFM
  • Thermostatic Expansion Valve Installed
  • Multi-Position Installation
  • Blower Motor Type: Multi-Speed ECM
Specifications
Overview
Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Configuration
Multi-Position
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
3.0 Tons
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
Maximum Air Flow
1240 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Cabinet Width
21 Inches
Product Weight
352 Pounds
Shipping Weight
387 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318840
Heat Pump Condenser
GSZB403610
Heat Pump Capacity
3.0 Tons
Cooling Capacity (BTU)
36000
Maximum Sound Level (dB)
72
Energy Star Listed
No
Liquid Connection Size (Inches)
3/8
Suction Connection Size (Inches)
7/8
Product Height (Inches)
39 5/8
Product Width (Inches)
35 1/2
Product Depth (Inches)
35 1/2
Product Weight (Pounds)
214
Shipping Weight (Pounds)
234
Frequency (Hz)
60
Voltage
208/230 Volts
Minimum Circuit Ampacity (Amps)
21
Recommended Breaker Size (Amps)
35
Parts Warranty
5 Years
Compressor Warranty
Limited 10 Years
Installation Location
Outdoor
Air Handler
AMST42CU1400
Air Handler Capacity
3.5 Tons
Cooling Capacity (BTU)
42000
Maximum Air Flow (CFM)
1495
Minimum Air Flow (CFM)
1165
Product Height (Inches)
57 7/16
Product Width (Inches)
21
Product Depth (Inches)
21
Product Weight (Pounds)
138
Shipping Weight (Pounds)
153
Liquid Connection Size (Inches)
3/8
Suction Connection Size (Inches)
3/4
Drain Outlet Diameter (Inches)
3/4
Thermostatic Expansion Valve Installed
Yes
Mount Type
Multi-Position
Blower Motor Type
Multi-Speed ECM
Electric Heat
Available
Frequency (Hz)
60
Voltage
208/230 Volts
Minimum Circuit Ampacity (Amps)
5.9
Recommended Breaker Size (Amps)
15/15
Warranty
10 Years
Parts Warranty
10 Limited Years
ETL Listed
Yes
ISO Certified
Yes
