GOODMAN
Brand: GOODMAN
SKU: GSXN403010 MBVC1201AA-1 CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,260.00
$3,260.00
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman MBVC1201AA-1 Modular Blower, ComfortBridge, 1.5-3 tons Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

SEER2
15.0
Cooling Capacity
30000 BTU
EER2
11.7

View More

LTL Delivery

This product weighs 316 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

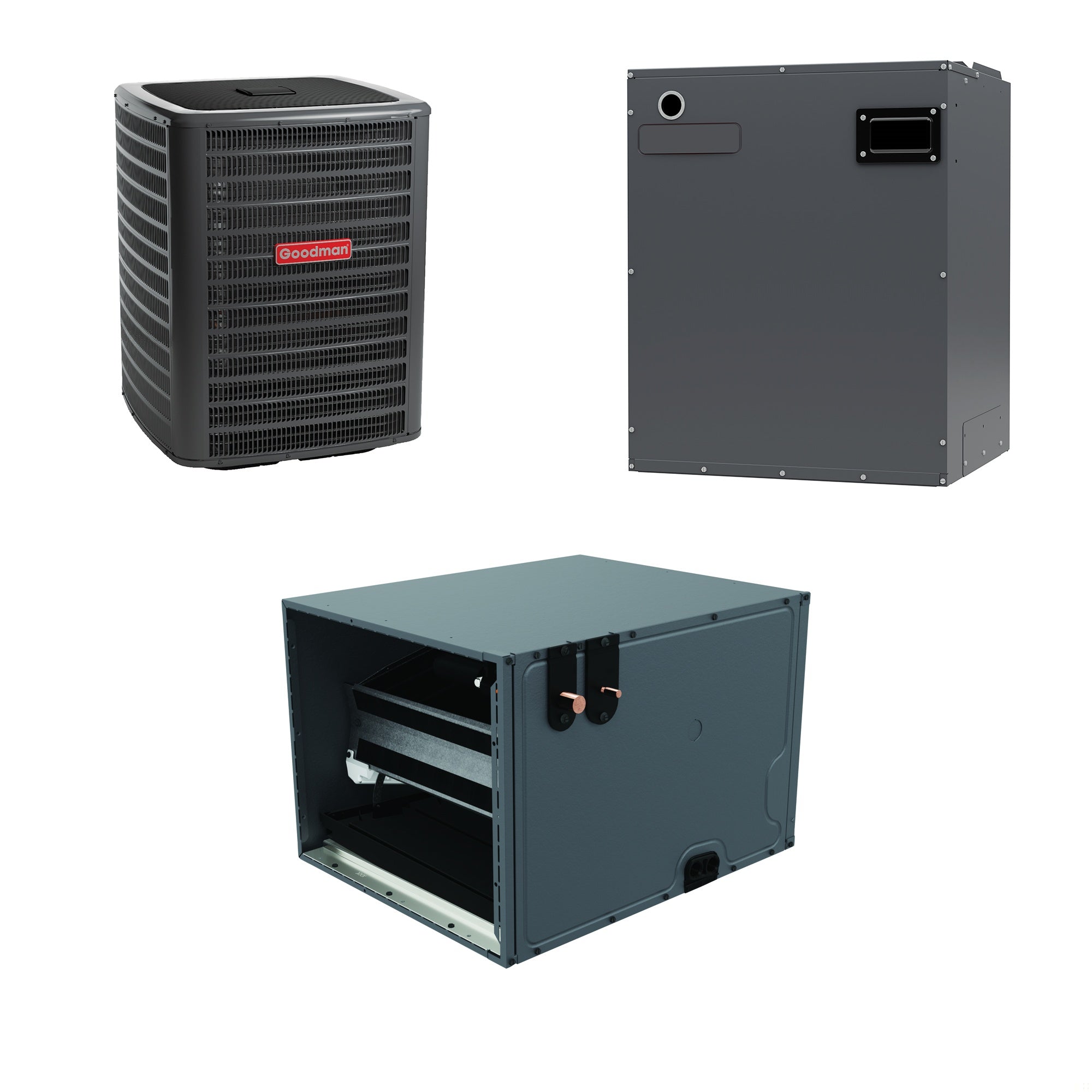

The Goodman GSXN403010 MBVC1201AA-1 CHPTA3630B4 bundle is an efficient way to upgrade your homes HVAC system. This bundle includes the GSXN403010 air conditioner, the MBVC1201AA-1 modular blower with variable-speed ECM motor, and the CHPTA3630B4 cased coil. Goodmans durable design ensures longevity while the state-of-the-art technology enhances energy efficiency.

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5 ton air conditioner designed for efficient cooling. Its condenser coil uses aluminum fins and copper tubing for maximum efficiency. A factory-installed filter drier prevents moisture and traps impurities.

  • Energy-efficient compressor
  • Aluminum fin and copper tube condenser coil
  • Factory-installed filter drier
  • Heavy-gauge galvanized steel cabinet

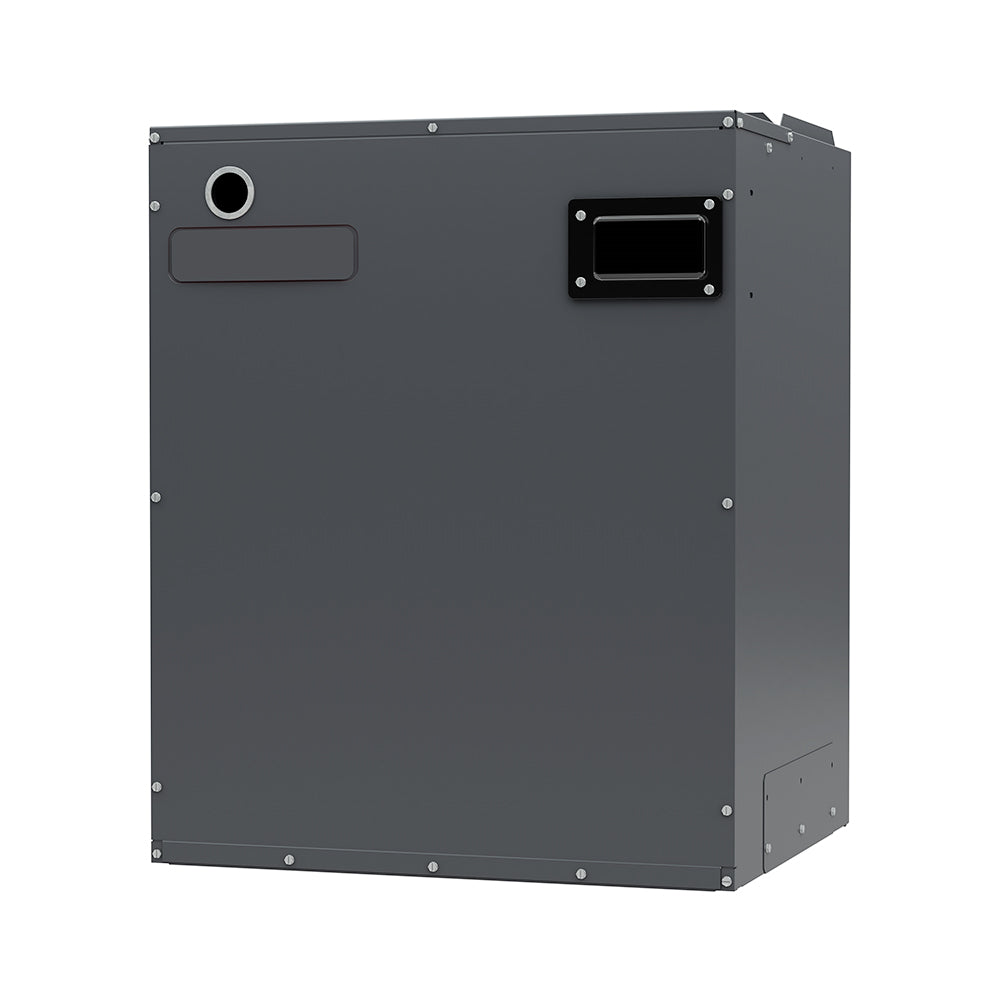

Goodman MBVC1201AA-1 Modular Blower

The MBVC1201AA-1 is a variable-speed blower that adjusts its airflow to meet the unique needs of your home. It is designed for easy installation and can be configured for upflow, downflow, and horizontal airflow applications.

  • Variable-speed ECM motor
  • Modular design for flexible installation
  • ComfortBridge™ compatible
  • Durable, secure cabinet

Goodman CHPTA3630B4 Cased Coil

The CHPTA3630B4 coil includes foil-faced insulation to prevent condensation, and a UV-resistant, thermoplastic drain pan. It is optimized for use with R-410A refrigerant and features a factory-installed thermostatic expansion valve to streamline installation.

  • All-aluminum coil
  • Foil-faced insulation
  • UV-resistant thermoplastic drain pan
  • Compatible with R-410A refrigerant
Specifications
Overview
SEER2
15.0
Cooling Capacity
30000 BTU
EER2
11.7
Nominal Cooling Capacity
30000 BTU
Maximum Air Flow
1200 CFM
Capacity
2.5 Tons
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Maximum Sound Level
72 dB
Cabinet Width
17 1/2 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
Liquid Connection Size
3/8 Inch
Suction Connection Size
7/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited 10 Years
Compressor Warranty
LIFETIME Years
Product Category
Air Conditioner & Air Handler Package
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Downflow
AHRI Reference Number
208791560
Performance - Capacity
2.5 Tons
MBVC1201AA-1 Performance - Capacity
3.0 Tons
MBVC1201AA-1 Electrical Data - Phase
1
MBVC1201AA-1 Electrical Data - Voltage
208/230 Volts
MBVC1201AA-1 Electrical Data - Frequency
60 Hz
MBVC1201AA-1 Electrical Data - Minimum Circuit Ampacity
4.9 Amps
MBVC1201AA-1 Electrical Data - Recommended Breaker Size
15 Amps
MBVC1201AA-1 Performance - Maximum Air Flow
1200 CFM
MBVC1201AA-1 General Information - Motor Type
ECM
MBVC1201AA-1 General Information - Mount Type
Multi-Position
MBVC1201AA-1 General Information - Electric Heat
Available
MBVC1201AA-1 General Information - TXV Installed
No
MBVC1201AA-1 General Information - Installation Location
Indoor
MBVC1201AA-1 General Information - Installation Available
Yes
MBVC1201AA-1 Overview Product Category
Forced Air Blower
MBVC1201AA-1 Certifications - ETL Listed
Yes
MBVC1201AA-1 Certifications - AHRI Certified
Yes
MBVC1201AA-1 Dimensions - Cabinet Width
17 1/2 Inches
MBVC1201AA-1 Dimensions - Product Depth
21 Inches
MBVC1201AA-1 Dimensions - Product Width
17 1/2 Inches
MBVC1201AA-1 Dimensions - Product Height
26 Inches
MBVC1201AA-1 Dimensions - Product Weight
67 Pounds
MBVC1201AA-1 Dimensions - Shipping Weight
77 Pounds
CHPTA3630B4 Performance - Capacity
3.0 Tons
CHPTA3630B4 Performance - Cooling BTU
36000
CHPTA3630B4 Performance - Nominal Minimum Cooling Capacity
36000 BTU
CHPTA3630B4 General Information - TXV Installed
Yes
CHPTA3630B4 General Information - Casing
Cased
CHPTA3630B4 General Information - Style
A Coil
CHPTA3630B4 General Information - Configuration
Horizontal
CHPTA3630B4 General Information - Installation Available
Yes
CHPTA3630B4 General Information - Refrigerant Type
R-410A
CHPTA3630B4 General Information - Product Line
CHPTA
CHPTA3630B4 General Information - Product Category
Evaporator Coil
CHPTA3630B4 Certifications - ETL Listed
Yes
CHPTA3630B4 Certifications - AHRI Certified
Yes
CHPTA3630B4 Certifications - ISO Certified
Yes
CHPTA3630B4 Warranty Information - Warranty
10 Years
CHPTA3630B4 Warranty Information - Parts Warranty
10 Limited Years
CHPTA3630B4 Dimensions - Cabinet Width
17 1/2 Inches
CHPTA3630B4 Dimensions - Product Depth
21 Inches
CHPTA3630B4 Dimensions - Product Width
30 Inches
CHPTA3630B4 Dimensions - Product Height
17 1/2 Inches
CHPTA3630B4 Dimensions - Product Weight
51 Pounds
CHPTA3630B4 Dimensions - Shipping Weight
66 Pounds
CHPTA3630B4 Dimensions - Suction Connection Size
7/8 Inch
CHPTA3630B4 Dimensions - Liquid Connection Size
3/8 Inch
Bundle Overview - SEER2
15.0
Bundle Overview - Cooling Capacity
30000 BTU
Bundle Overview - EER2
11.7
Bundle Overview - Nominal Cooling Capacity
30000 BTU
Bundle Overview - Maximum Air Flow
1200 CFM
Bundle Overview - Capacity
2.5 Tons
Bundle Overview - Blower Motor Type
ECM Variable-Speed
Bundle Overview - Configuration
Upflow/Downflow
Bundle Overview - Coil Width
17.5 Inches
Bundle Overview - ETL Listed
Yes
Bundle Overview - AHRI Certified
Yes
Bundle Overview - AHRI Reference Number
208791560
Bundle Overview - Product Category
Air Conditioner & Air Handler Package
Bundle Overview - DOE Regional Compliance
Nationwide
Bundle Overview - Product Weight
248 Pounds
Bundle Overview - Shipping Weight
323 Pounds
