Goodman - 2.5 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 14.5 SEER2

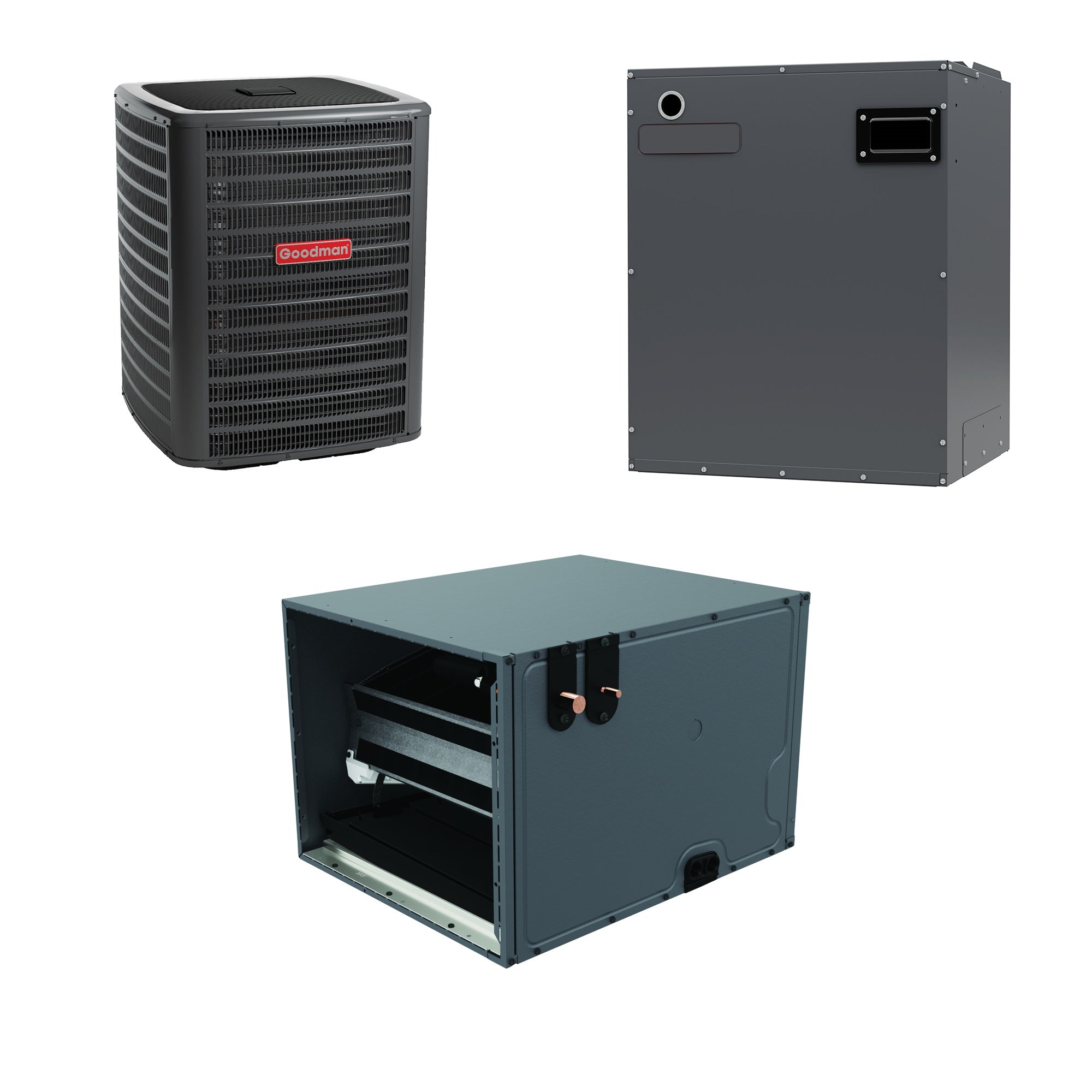

The Goodman GSXN403010 MBVC1201AA-1 CHPTA3026B4 Bundle System

The Goodman GSXN403010 MBVC1201AA-1 CHPTA3026B4 central air conditioning bundle is designed for maximum efficiency and energy savings. This system includes a GSXN403010 air conditioner, an MBVC1201AA-1 modular blower, and a CHPTA3026B4 cased coil. The components work together to ensure optimal airflow and temperature control in your home. This bundle is perfect for those looking to update their HVAC system with energy-efficient solutions.

• Energy-efficient compressor provides consistent cooling.
• Durable galvanized-steel cabinet with powder-paint finish.
• Variable-speed ECM motor for energy savings.
• Factory-installed filter drier ensures clean refrigerant flow.

Product Highlights

The system uses advanced technology to provide efficient cooling, reduce energy costs, and ensure long-lasting durability.

Product Information

Standard Information

• System Type: Air Conditioner + Variable Speed Air Handler
• Refrigerant Type: R-410A
• Compressor Stages: Single Stage
• Energy Efficiency Ratio (EER2): 11.7
• Seasonal Energy Efficiency Ratio (SEER2): 14.5

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton air conditioner designed for efficient cooling. It utilizes an energy-efficient compressor and features a heavy-gauge galvanized-steel cabinet with a powder-paint finish for durability and protection.

• Cooling Capacity: 30,000 BTU
• Maximum Decibel Level: 72 dB
• Product Dimensions: 29 inches depth, 29 inches width, 39.5 inches height
• Product Weight: 156 pounds

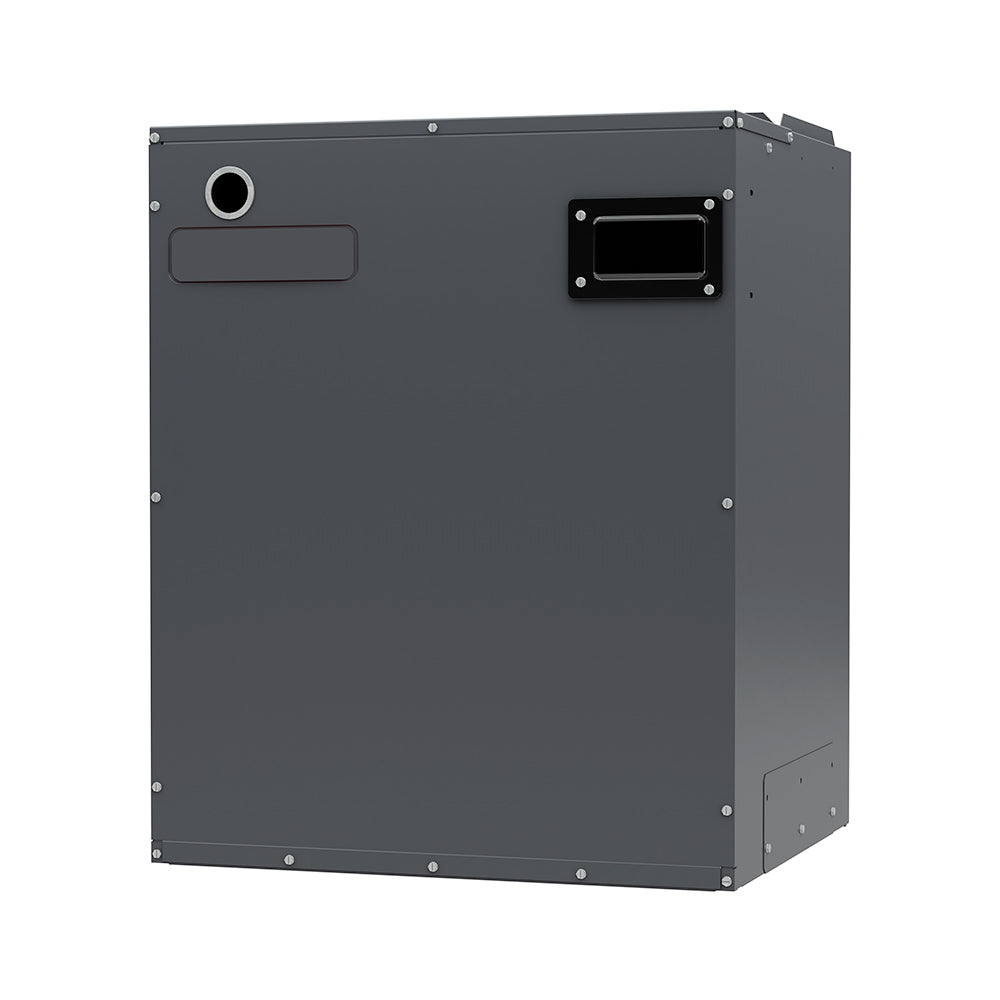

The MBVC1201AA-1 Air Handler

The MBVC1201AA-1 is a modular blower with a variable-speed ECM motor. This unit is designed for energy-efficient circulation and can be easily configured for different airflow applications.

• Maximum Air Flow: 1200 CFM
• Product Dimensions: 21 inches depth, 17.5 inches width, 26 inches height
• Product Weight: 67 pounds
• Compatible with ComfortBridge™ communicating controls

The CHPTA3026B4 Cased Evaporator Coil

The CHPTA3026B4 features an all-aluminum coil and is optimized for use with R-410A refrigerant. It includes a factory-installed thermostatic expansion valve and is designed for horizontal airflow applications.

• Cooling Capacity: 30,000 BTU
• Product Dimensions: 21 inches depth, 26 inches width, 17.5 inches height
• Product Weight: 46 pounds
• Foil-faced insulation for condensate management
