Goodman - 2.5 Ton Cooling - Air Conditioner + Coil System - 14.3 SEER2 - 21" Coil Width - For Upflow/Downflow Installation
Goodman - 2.5 Ton Cooling - Air Conditioner + Coil System - 14.3 SEER2 - 21" Coil Width - For Upflow/Downflow Installation
Goodman - 2.5 Ton Cooling - Air Conditioner + Coil System - 14.3 SEER2 - 21" Coil Width - For Upflow/Downflow Installation

Goodman - 2.5 Ton Cooling - Air Conditioner + Coil System - 14.3 SEER2 - 21" Coil Width - For Upflow/Downflow Installation

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 CAPTA3026C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$2,402.00
$2,402.00
Bundle Includes
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal Quantity: 1
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow Quantity: 1
Manuals:

Specification Highlights

Product Category
Air Conditioner & Coil Package
Operating Mode
Cooling
Coil Width
21 Inches

View More

LTL Delivery

This product weighs 232 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

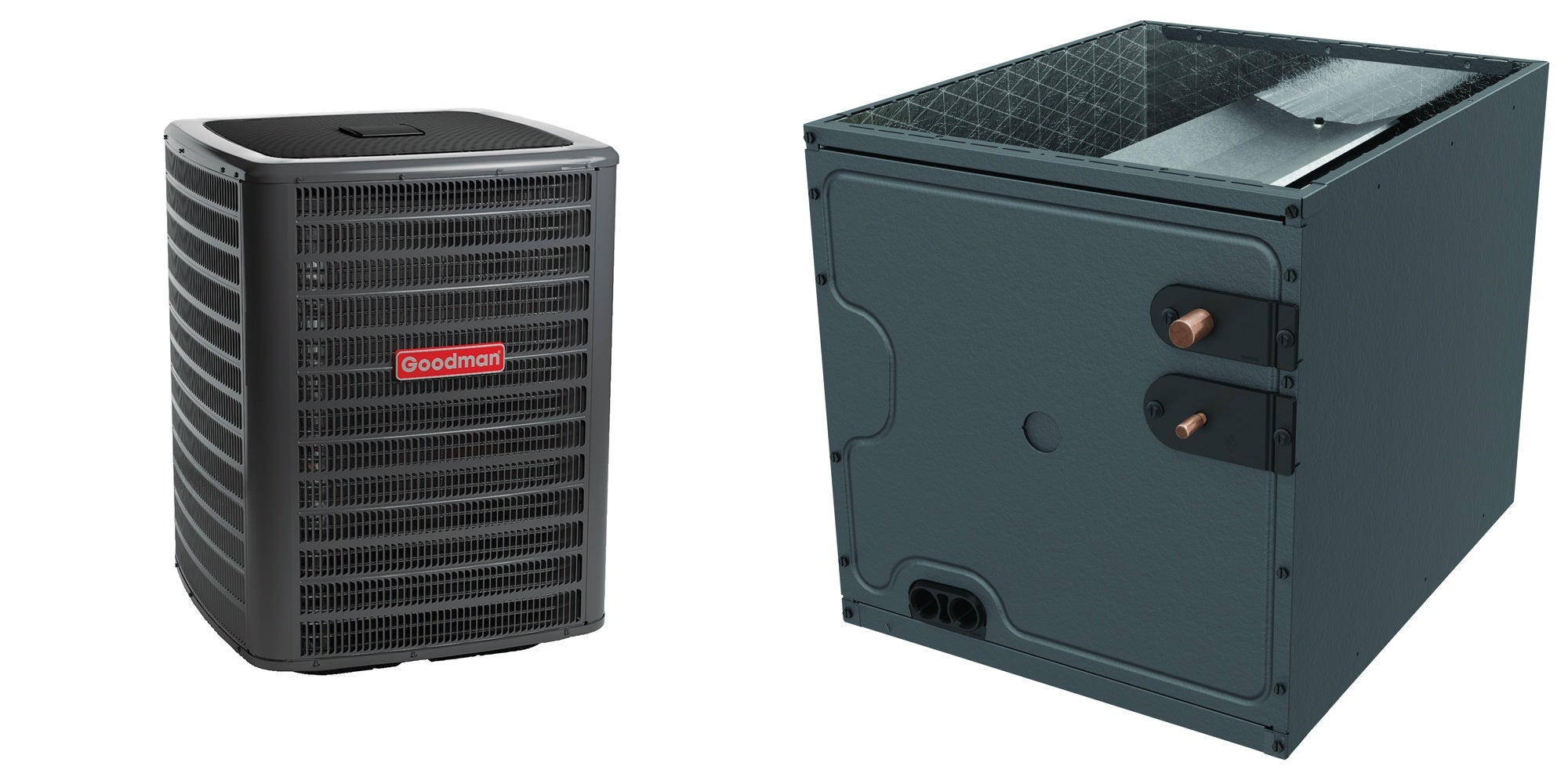

The Goodman GSXN403010 CAPTA3026C4 bundle includes an outdoor condenser and an evaporator coil to complete your central air conditioning system. This set features the Goodman GSXN4 air conditioner with an advanced condenser coil design for efficient and reliable cooling. The CAPTA3026C4 evaporator coil fits directly onto your existing 21-inch furnace or air handler cabinet.

Product Highlights

This system employs a galvanized steel construction paired with an all-aluminum evaporator coil design to ensure durability and efficiency. It utilizes an energy-efficient compressor, and its condenser coil is designed with aluminum fins and copper tubing for enhanced heat transfer.

Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner features a robust construction with a heavy-gauge galvanized steel cabinet. This cabinet is finished with an architectural gray powder-paint finish, which is 500-hour salt-spray approved. The condenser coil utilizes copper tubing and aluminum fins for optimal efficiency, and a factory-installed filter drier removes moisture and traps impurities to prevent corrosion, freezing, and blockages.

  • Energy-efficient compressor for reliable refrigerant flow
  • Heavy-gauge galvanized steel cabinet
  • Copper tube and enhanced aluminum fin coil
  • Factory-installed filter drier

Goodman CAPTA3026C4 Evaporator Coil

The CAPTA3026C4 evaporator coil is designed with an all-aluminum coil featuring sine fins and grooved tubes to maximize surface area for efficient heat transfer. The coil comes with a factory-installed internal thermostatic expansion valve to streamline installation. It also includes foil-faced insulation to inhibit condensate formation and a rust-resistant thermoplastic drain pan.

  • All-aluminum coil with sine fins and grooved tubes
  • Internal thermostatic expansion valve
  • Secure, insulated cabinet to prevent air leakage
  • Foil-faced insulation and thermoplastic drain pan for condensate management
Specifications
Overview
Product Category
Air Conditioner & Coil Package
Operating Mode
Cooling
Coil Width
21 Inches
Configuration
Upflow/Downflow
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
2.5 Tons
Cooling Capacity
30000 BTU
Nominal Cooling Capacity
30000 BTU
SEER2
14.3
EER2
11.7
Product Weight
248 Pounds
Shipping Weight
242 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208786160
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39.5 Inches
Product Width
29 Inches
Product Depth
29 Inches
General Information
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Installation Location
Outdoor
Compressor Stages
Single Stage
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Available
Yes
Maximum Sound Level
72 dB
Energy Star Listed
No
ISO Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME
General Information
Evaporator Coil
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
TXV Installed
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Nominal Minimum Cooling Capacity
30000 BTU
Cabinet Width
21 Inches
Product Height
26 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
52 Pounds
Shipping Weight
62 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
