Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GMVC960804CN CHPTA3026C4
Availability: Out Of Stock
Free Shipping
$5,338.00
$5,338.00

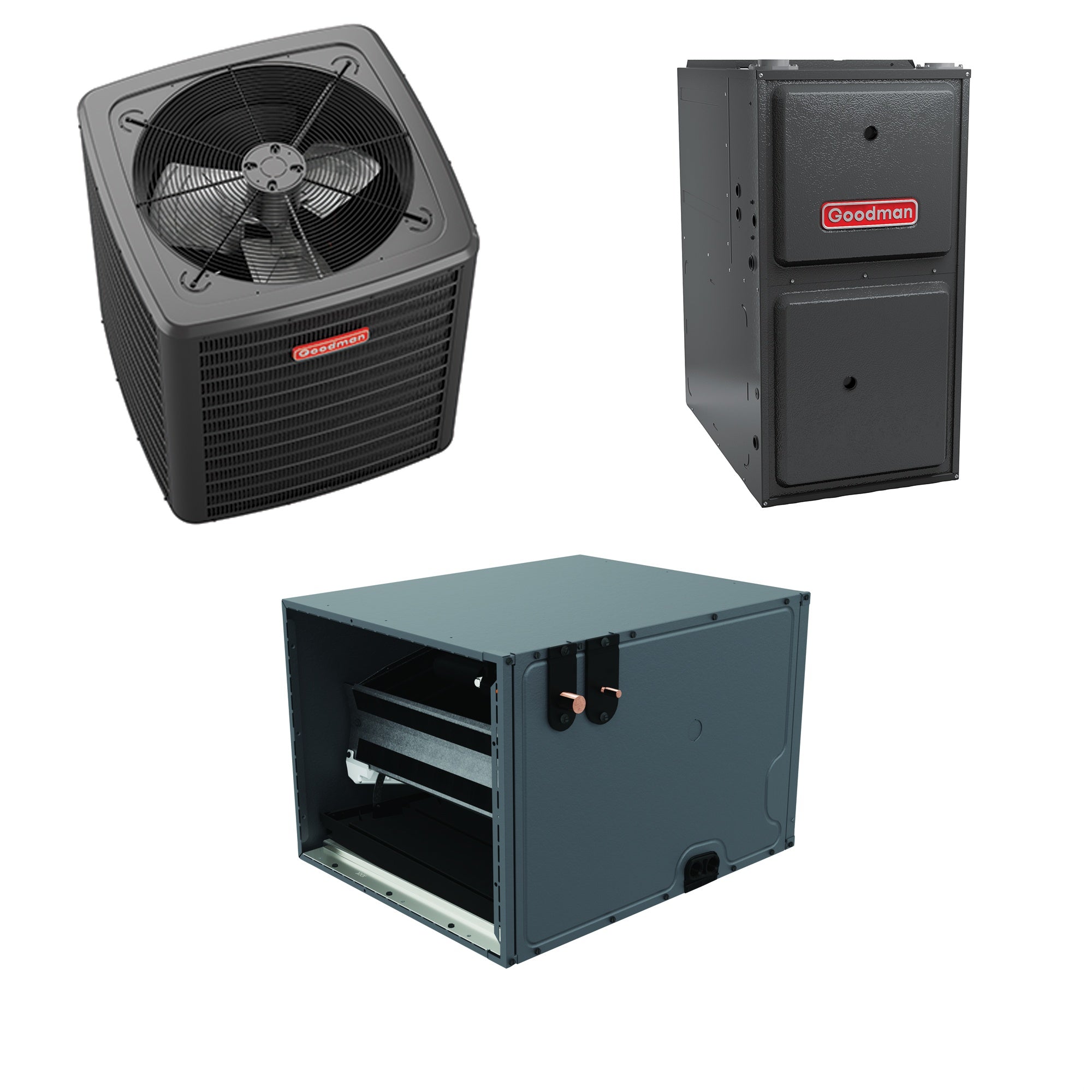

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC960804CN GMVC96 96% AFUE - 80,000 BTU - Horizontal/Upflow - Variable Speed - Furnace Quantity: 1
Goodman CHPTA3026C4 Evaporator Coil, 2.5 tons, Horizontal, R-410A TXV Quantity: 1

Specification Highlights

Product Category
Hybrid Fuel Split Systems
Brand
Goodman
Item Number
146952

View More

LTL Delivery

This product weighs 392 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Features

The Goodman GSZB403010 GMVC960804CN CHPTA3026C4 heat pump and furnace kit is a comprehensive HVAC system solution. This bundle includes the GSZB4 air conditioner, GMVC96 furnace, and CHPTA cased evaporator coil. Together, these components provide reliable heating and cooling suitable for a wide range of climates. Each part of this system is designed for easy installation, longevity, and efficient performance, offering both immediate and long-term value.

The Goodman GSZB403010 Heat Pump

Goodman GSZB403010 Heat Pump is integral for efficient cooling and heating. It features a single-stage compressor designed to balance performance and cost-effectiveness. The condenser coil uses aluminum fins and copper tubing to maximize heat transfer. Additionally, the included suction-line accumulator prevents compressor damage from liquid refrigerant surges.

  • Single-stage compressor
  • Aluminum fin and copper tube coil
  • Factory-installed suction-line accumulator
  • High and low-pressure safety switches

The GMVC960804CN Gas Furnace

The GMVC960804CN gas furnace by Goodman ensures robust heating performance. It operates with a dual-diameter tubular heat exchanger made from aluminized steel. This furnace is both quiet and efficient, featuring low sound levels from its blower and gas valve. It also offers versatile venting options for installation in diverse settings.

  • Dual-diameter tubular heat exchanger
  • Aluminized steel construction
  • Quiet operation
  • Multiple venting options

The CHPTA3026C4 Cased Evaporator Coil

The Goodman CHPTA3026C4 evaporator coil is designed for high efficiency. Its all-aluminum coil design, along with internal thermostatic expansion valve (TXV), provides optimal refrigerant flow and heat transfer. The UV-resistant, thermoplastic drain pan ensures durability and effective condensate management.

  • All-aluminum coil design
  • Internal TXV for optimal refrigerant flow
  • UV-resistant thermoplastic drain pan
  • Horizontal installation configuration
Overview
Product Category
Hybrid Fuel Split Systems
Brand
Goodman
Item Number
146952
Free Shipping
1
Free Lift Gate
1
AFUE
96%
Heating BTU
80000
Cooling Capacity
30000 BTU
SEER2
14.3
EER2
11.5
HSPF2
7.5
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Compressor Stages
Single Stage
Dimensions
365 lb weight, 29 in width, 29 in depth, 39.5 in height
AHRI Certified
Yes
ETL Listed
Yes
ISO Certified
Yes
Energy Star Listed
No
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
Heat Exchanger Warranty
20 Years
