Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow

Features

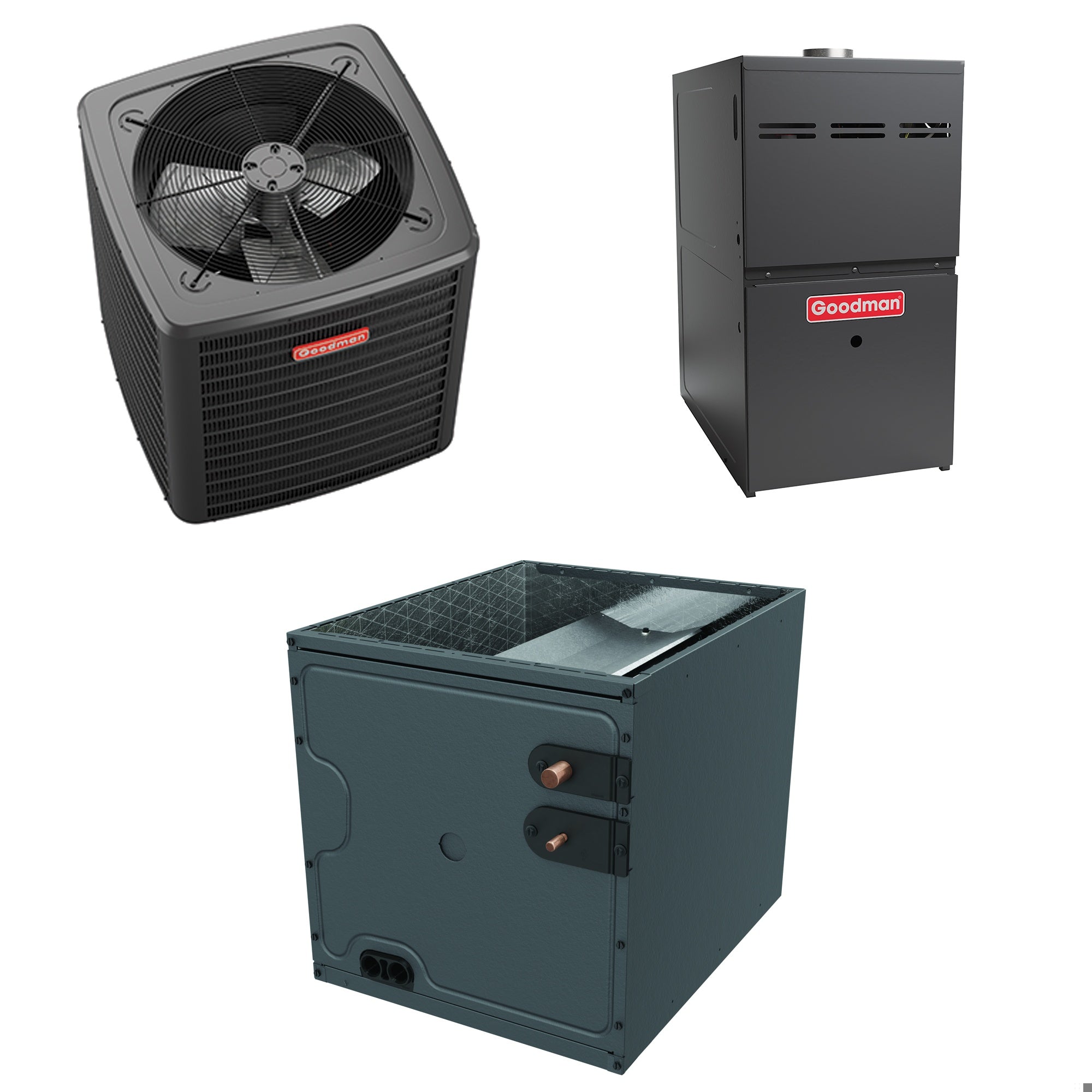

The Goodman GSZB403010 GM9S800804BN CAPTA3626B4 Bundle System includes a heat pump, a gas furnace, and an evaporator coil. This setup is designed for efficiency, durability, and ease of installation.

Lets breakdown the components:

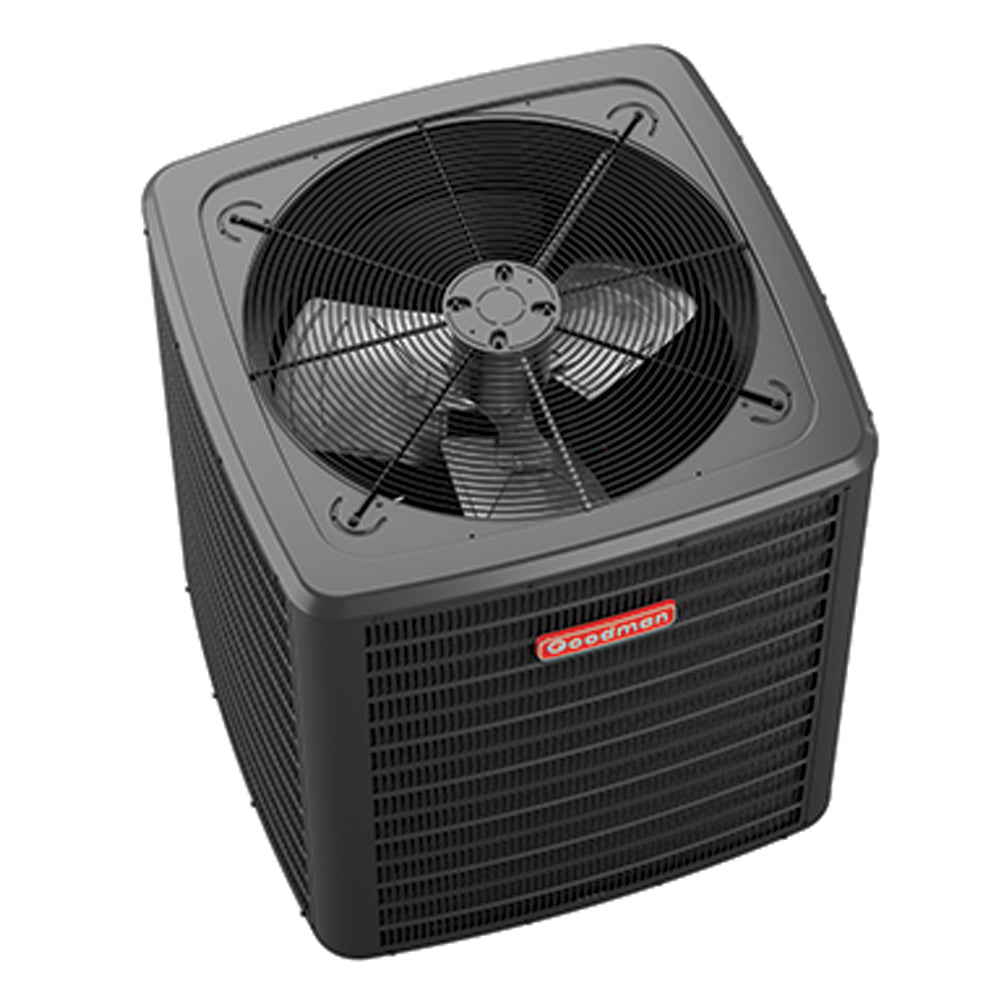

The Goodman GSZB403010 Heat Pump

The Goodman GSZB403010 is a heat pump designed for both heating and cooling. This unit utilizes an energy-efficient compressor and Smartshift™ technology for a reliable, quiet defrost cycle.

• Operating mode: Heating and Cooling
• Refrigerant: R-410A
• Compressor: Single Stage
• Maximum sound level: 75 dB

Key features include copper tube/aluminum fin coils for enhanced heat transfer and a factory-installed suction-line accumulator to protect the compressor.

The Goodman GM9S800804BN Gas Furnace

The Goodman GM9S800804BN is a gas furnace with an 80% AFUE rating. It employs a multi-speed ECM motor for efficient air distribution and features a self-diagnostic control board for simple troubleshooting.

• Heating Capacity: 80,000 BTU
• Blower Motor Type: ECM Multi-Speed
• Vent Type: Chimney Vent
• Configuration: Upflow/Horizontal

This furnace is designed with aluminized steel heat exchangers for durability and efficiency.

The Goodman CAPTA3626B4 Evaporator Coil

The Goodman CAPTA3626B4 is a 3-ton evaporator coil designed to work in conjunction with the heat pump and furnace. It features an all-aluminum design and an internal thermostatic expansion valve to manage refrigerant flow.

• Capacity: 3 Tons
• Configuration: Upflow/Downflow
• Refrigerant: R-410A
• Cabinet Width: 17.5 inches

The evaporator coil includes a rust-resistant thermoplastic drain pan and foil-faced insulation to reduce condensate formation.
