Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GCVC800803BX CHPTA3026B4
Availability: Out Of Stock
Free Shipping
$4,704.00
$4,704.00
Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800803BX GCVC80 80% AFUE - 80,000 BTU - Downflow/Horizontal - Furnace Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1

Specification Highlights

Cooling Capacity
2.5 Tons
Heating Capacity
80,000 BTU
SEER2
14.3

View More

LTL Delivery

This product weighs 359 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

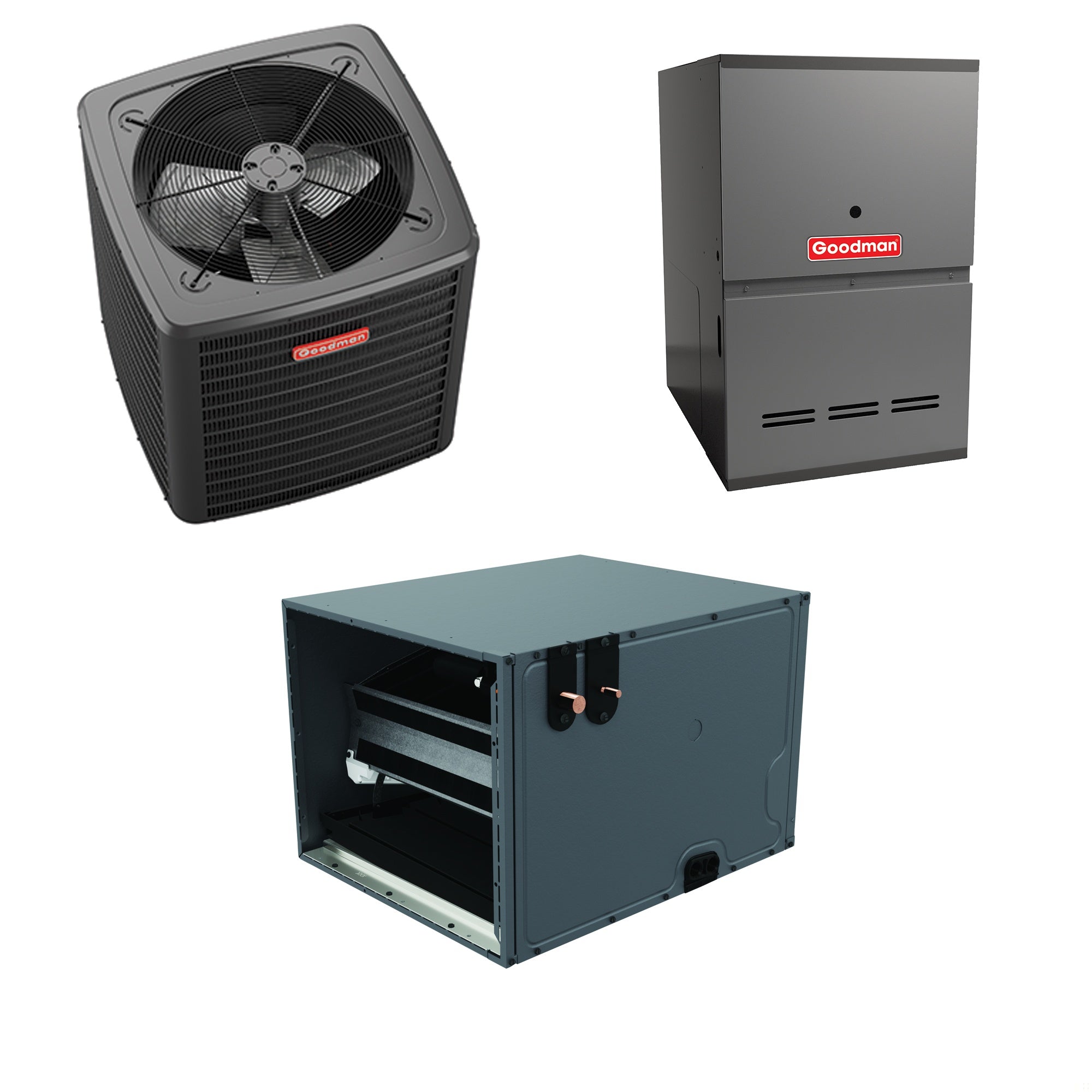

The Goodman GSZB403010 GCVC800803BX CHPTA3026B4 Bundle System

The Goodman GSZB403010 GCVC800803BX CHPTA3026B4 bundle system is a comprehensive HVAC solution designed for various regions. This bundle includes three primary components: the GSZB4 air conditioner, the GCVC80 furnace, and the CHPTA evaporator coil. Each component is crafted with long-term durability and easy installation in mind.

  • Includes heat pump, furnace, and cased evaporator coil
  • Focuses on durability and ease-of-installation
  • Designed for diverse climates
  • Provides efficient heating and cooling

Product Highlights

This system offers both heating and cooling with an emphasis on efficiency and quiet comfort. The GCVC80 furnace features a heavy-duty tubular heat exchanger and a variable speed ECM motor, while the GSZB4 air conditioner uses copper tubing with enhanced aluminum fins for optimal heat transfer.

The Goodman GSZB403010 Air Conditioner

The Goodman GSZB403010 is a heat pump condenser designed for efficient heating and cooling. It features an energy-efficient compressor and aluminum fin coil. The unit is equipped with Smartshift™ technology for smooth defrost transitions.

  • Heat pump condenser
  • Single stage compressor
  • Smartshift™ technology
  • 14.3 SEER2 and 7.5 HSPF2

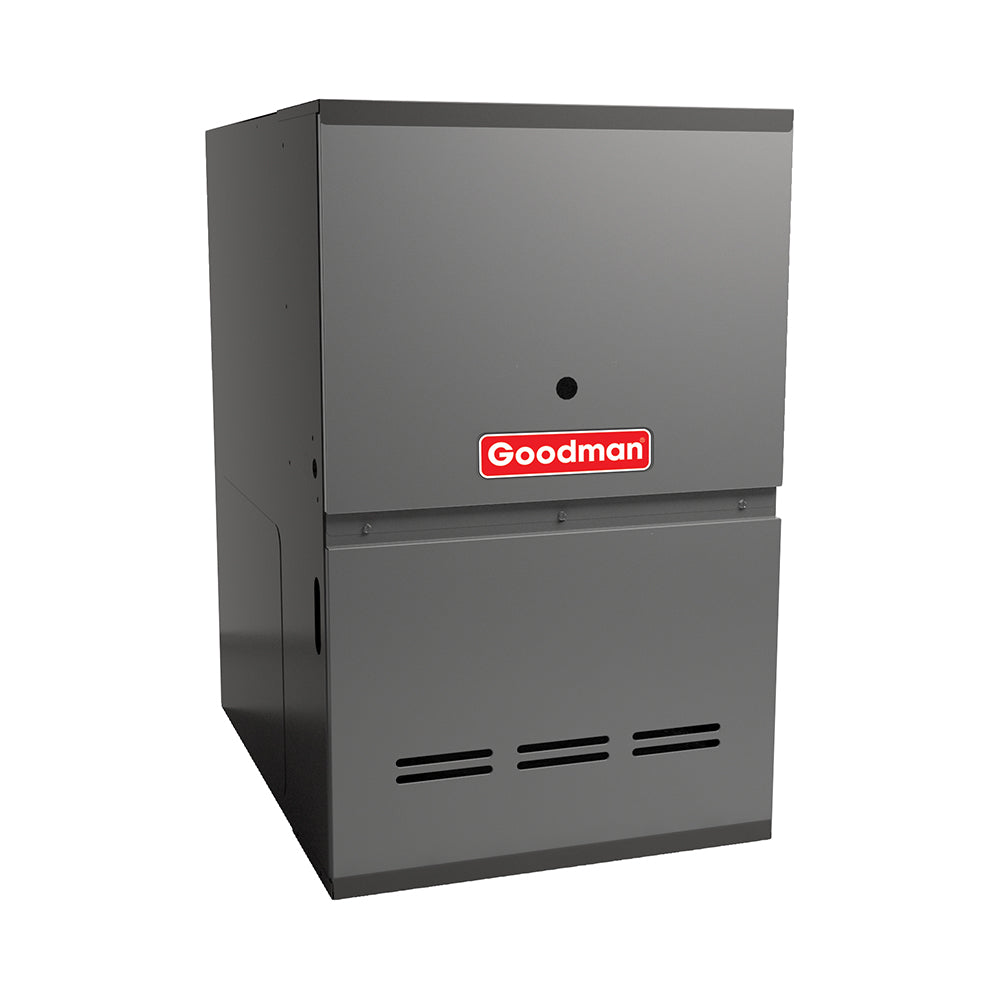

The GCVC800803BX Gas Furnace

The GCVC800803BX furnace by Goodman is a two-stage gas furnace with an 80% AFUE rating. It features a variable speed ECM motor and ComfortBridge™ technology for customized indoor comfort. The heat exchanger is made of aluminized steel for better heat transfer.

  • 80,000 BTU two-stage gas furnace
  • 80% AFUE rating
  • ComfortBridge™ technology
  • Variable speed ECM motor

The CHPTA3026B4 Cased Evaporator Coil

The CHPTA3026B4 evaporator coil by Goodman is designed for horizontal installation. It is cased and features an all-aluminum coil for efficient heat transfer. The coil includes a factory-installed TXV for optimal refrigerant flow.

  • 2.5 Ton horizontal A coil
  • All-aluminum construction
  • Factory-installed TXV
  • 17.5 inches wide

Product Information

Standard Information

  • Brand: Goodman
  • Model: GSZB403010, GCVC800803BX, CHPTA3026B4
  • Category: Hybrid Fuel Split Systems
  • Cooling Capacity: 2.5 Tons
  • Heating Capacity: 80,000 BTU
  • SEER2: 14.3
  • AFUE: 80%
Overview
Cooling Capacity
2.5 Tons
Heating Capacity
80,000 BTU
SEER2
14.3
AFUE
80%
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Liquid Connection Size
3/8 Inch
Suction Connection Size
3/4 Inch
Product Height
39.5 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
175 Pounds
Shipping Weight
360 Pounds
Compressor Stages
Single Stage
Installation Location
Outdoor
Refrigerant Type
R-410A
Certifications ETL Listed
Yes
Certifications AHRI Certified
Yes
ISO Certified
Yes
Maximum Air Flow
1200 CFM
Maximum Sound Level
75 dB
Minimum Circuit Ampacity
18.6 Amps
Recommended Breaker Size
30 Amps
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
AHRI Reference Number
210318810
Line Set Required
Varies by installation
