Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

Brand: GOODMAN
SKU: GSZB403010 GMVC800804CN CHPTA3026C4
Availability: Out Of Stock
Free Shipping
$4,712.00
$4,712.00
Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC800804CN Gas Furnace 80% AFUE 80000 BTU Two-Stage Variable-Speed Quantity: 1
Goodman CHPTA3026C4 Evaporator Coil, 2.5 tons, Horizontal, R-410A TXV Quantity: 1

Specification Highlights

AFUE
80 %
EER2
11.5
HSPF2
7.5

View More

LTL Delivery

This product weighs 371 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Features

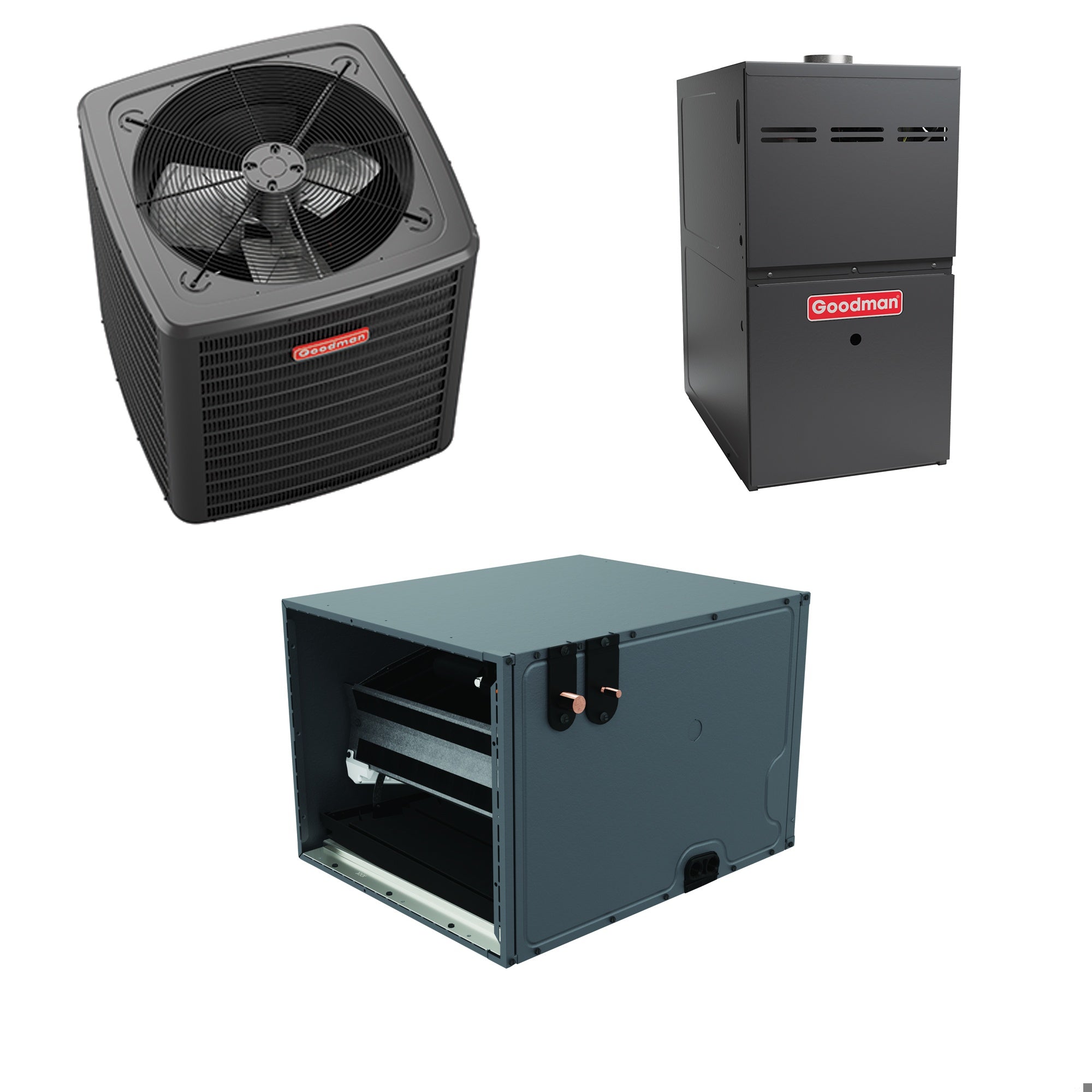

The Goodman GSZB403010 GMVC800804CN CHPTA3026C4 bundle is a comprehensive HVAC solution for your home. This bundle includes a GSZB4 heat pump, GMVC80 furnace, and a cased CHPTA evaporator coil, offering efficient heating and cooling for various climates. Designed for easy installation and durability, this system provides both upfront and long-term value.

Bundle Overview

This bundle includes:

  • Goodman GSZB 2.5 Ton Heat Pump
  • Goodman GMVC80 80,000 BTU Gas Furnace
  • Goodman CHPTA 2.5 Ton Horizontal A Coil

Goodman GSZB403010 Heat Pump

The Goodman GSZB403010 heat pump is a crucial component of this system. It features a single-stage compressor, R-410A refrigerant, and Smartshift™ technology for efficient heating and cooling transitions.

  • 2.5 Tons Cooling Capacity
  • 14.3 SEER2
  • 75 dB Maximum Sound Level
  • Installation Location: Outdoor

Goodman GMVC800804CN Gas Furnace

The GMVC800804CN gas furnace provides consistent heating with its variable-speed ECM motor and ComfortBridge™ technology, continuously monitoring system performance for customized indoor comfort.

  • 80,000 BTU Heating Capacity
  • 80% AFUE
  • Two-Stage Modulating/Staging
  • Ultra Low NOx Emissions: No

Goodman CHPTA3026C4 Evaporator Coil

The CHPTA3026C4 includes an all-aluminum coil design that maximizes heat transfer. This cased coil also features a factory-installed thermostatic expansion valve for ideal refrigerant flow.

  • 2.5 Tons Cooling Capacity
  • 21 Inches Width
  • Horizontal Configuration
  • 10-Year Parts Warranty
Overview
AFUE
80 %
EER2
11.5
HSPF2
7.5
Nominal Cooling Capacity
30000 BTU
Cooling Capacity
2.5 Tons
Heating Capacity
80000 BTU
Maximum Air Flow
1600 CFM
Compressor Stages
Single Stage
Blower Motor Type
ECM Variable-Speed
Warranty
10 Years
Installation Location
Outdoor
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18.6 Amps
Recommended Breaker Size
30 Amps
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
175 Pounds
Shipping Weight
190 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Energy Star Listed
No
