Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GMVM970803BN CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,058.00
$5,058.00

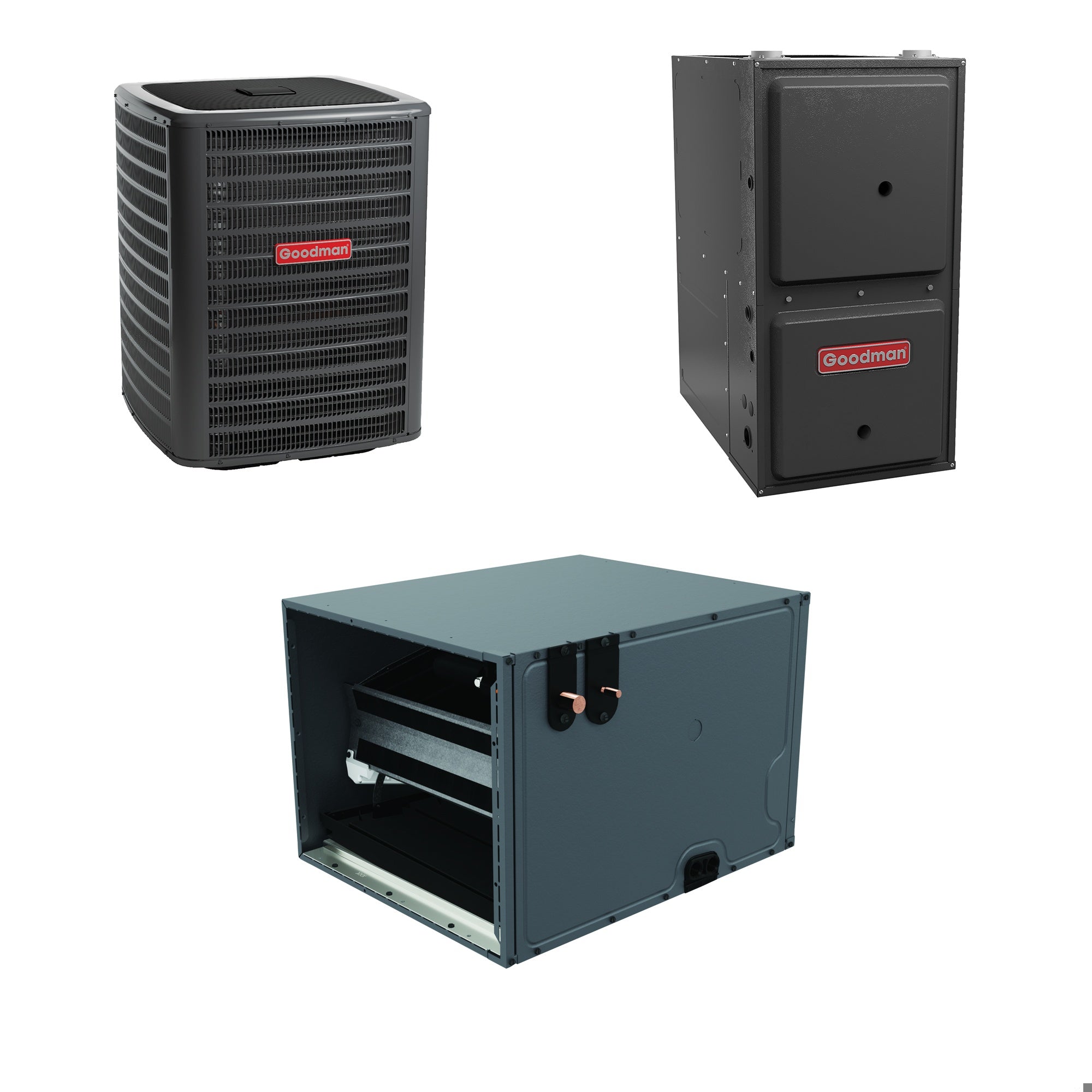

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVM970803BN 97% Modulating Variable-Speed ECM Gas Furnace 80000 Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

Type
Gas Furnace
Product Line
GMVM97
Product Category
Furnace

View More

LTL Delivery

This product weighs 375 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

A Goodman central air and furnace kit is the perfect way to update your homes HVAC system. This kit contains a GSXN4 air conditioner, a GMVM97 furnace, and a cased CHPTA evaporator coil, making it ideal for most parts of the country. Each of these components is designed with a focus on ease-of-installation and durability, providing both upfront and long-term value. This system is perfect for areas that use an average amount of cooling but want a multi-speed furnace for colder winters. If youre looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXN403010 GMVM970803BN CHPTA3630B4 air conditioner and furnace kit fits the bill.

Product Highlights

Goodmans evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes to maximize surface area and optimize heat transfer for efficient comfort.

  • All-Aluminum Coil
  • Factory-Installed Internal Thermostatic Expansion Valve
  • Condensate Management
  • Advanced Heat Exchanger Design
  • Secondary Heat Exchanger
  • Quiet Comfort

Product Information

Standard Information

  • Type: Condenser
  • Refrigerant Type: R-410A
  • Installation Location: Outdoor
  • Compressor Stages: Single Stage
  • DOE Regional Compliance: Nationwide
  • Capacity: 2.5 Tons
  • Cooling BTU: 30000

The Goodman GSXN403010 GMVM970803BN CHPTA3630B4 Bundle System

The Goodman GSXN403010 GMVM970803BN CHPTA3630B4 bundle includes a GSXN4 air conditioner, a GMVM97 furnace, and a CHPTA evaporator coil. These components work together to provide efficient heating and cooling for your home. The air conditioner uses an energy-efficient compressor and a condenser coil with aluminum fins and copper tubing to maximize efficiency. The furnace features a dual-diameter tubular heat exchanger design for improved heat transfer and durability. The evaporator coil includes a thermostatic expansion valve for ideal refrigerant flow. Together, these components offer a complete, reliable HVAC solution.

The Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner is designed for high efficiency. It features an energy-efficient compressor, aluminum fin and copper tubing condenser coil, and a factory-installed filter drier. The cabinet is built from heavy-gauge galvanized steel with a durable powder-paint finish.

  • Energy-Efficient Compressor
  • All-Aluminum Fin and Copper Tubing Coil
  • Factory-Installed Filter Drier
  • Heavy-Gauge Galvanized-Steel Cabinet
  • 72 dB Maximum Sound Level

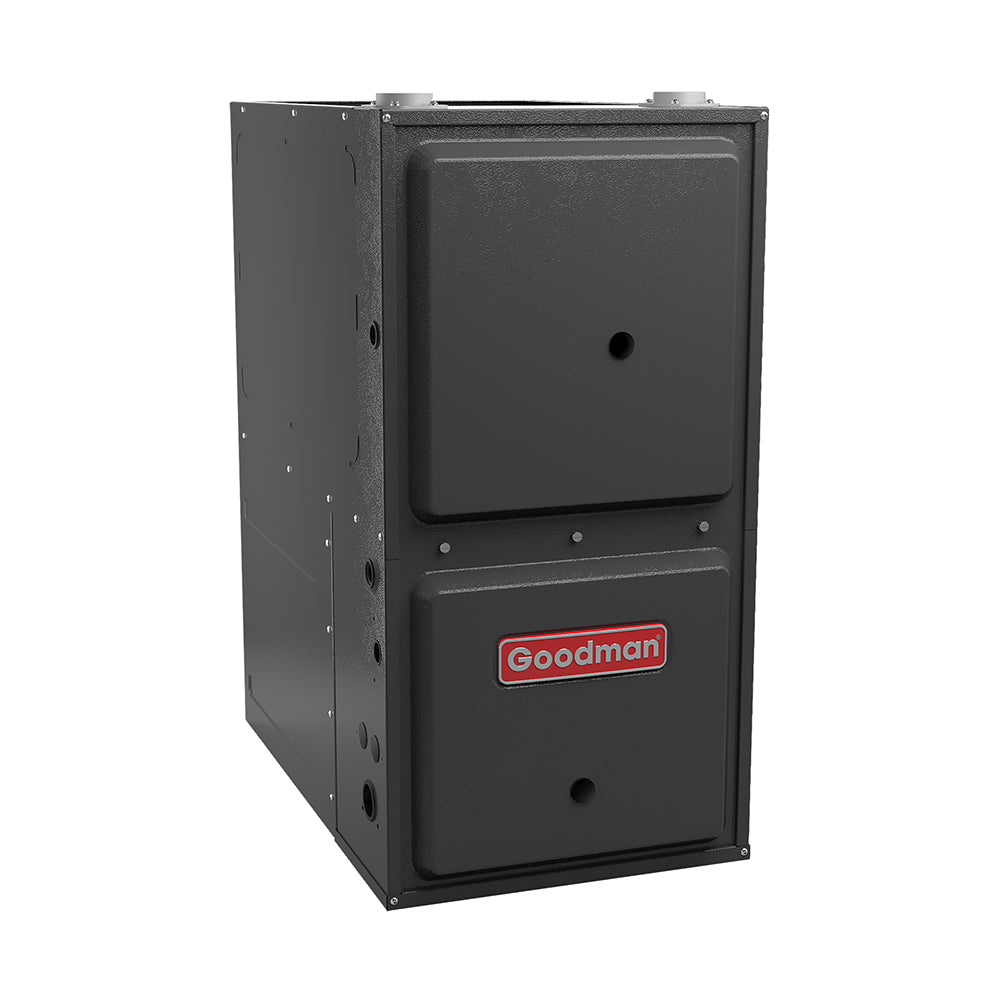

The GMVM970803BN Gas Furnace

The GMVM970803BN gas furnace offers exceptional heating performance. It features a dual-diameter tubular heat exchanger, a secondary stainless steel heat exchanger, and is compatible with Goodmans ComfortBridge™ controls for diagnostics and troubleshooting. The blower operates at low sound levels and offers multiple venting options for flexible installation.

  • Dual-Diameter Tubular Heat Exchanger
  • Secondary Stainless Steel Heat Exchanger
  • ComfortBridge™ Compatible
  • Auto-Comfort Mode
  • 80000 BTU Heating Capacity

The CHPTA3630B4 Cased Evaporator Coil

The CHPTA3630B4 cased evaporator coil is designed for efficient cooling. It includes an all-aluminum design, a factory-installed thermostatic expansion valve, and foil-faced insulation for condensate management. The thermoplastic drain pan is UV-resistant and has secondary drain connections for safety.

  • All-Aluminum Design
  • Thermostatic Expansion Valve
  • Foil-Faced Insulation
  • UV-Resistant Thermoplastic Drain Pan
  • 36000 BTU Cooling Capacity
Specifications
Overview
Type
Gas Furnace
Product Line
GMVM97
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Direct Vent
Modulating/Staging
Modulating
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
AFUE
97 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
77600 BTU
Low Fire Input
40000 BTU
Low Fire Output
38800 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.8 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
121 Pounds
Shipping Weight
121 Pounds
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7424265
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
TXV Installed
Yes
Capacity
3.0 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
51 Pounds
Shipping Weight
66 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Modulating
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration
Horizontal
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
AFUE
97 %
Capacity
2.5 Tons
Cooling Capacity
28200 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
80000
Maximum Air Flow
1200 CFM
SEER2
15
EER2
11.7
Product Weight
328 Pounds
Shipping Weight
367 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791826
