Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal

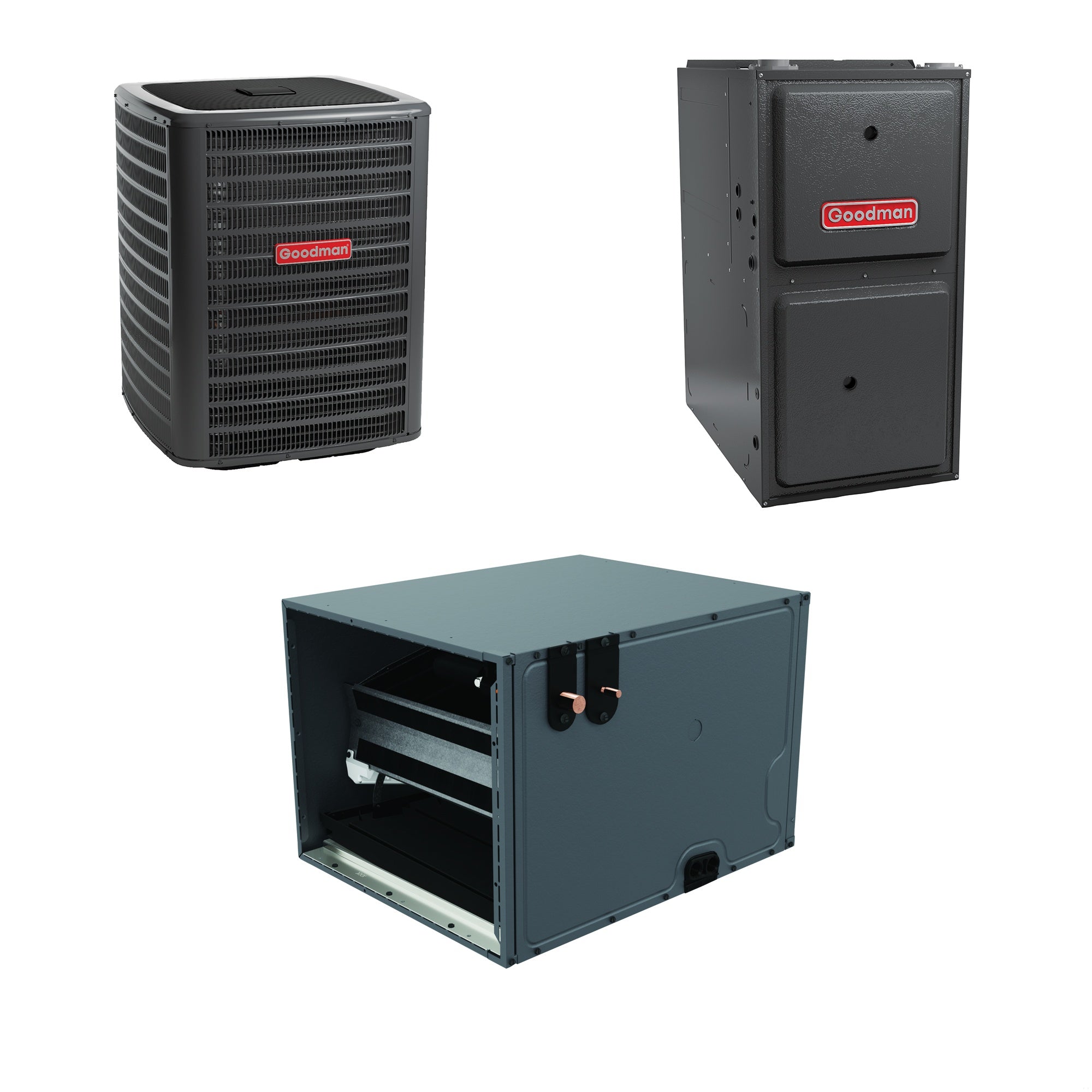

The Goodman GSXN403010 GMVC960804CN CHPTA3630C4 Bundle System

Goodmans central air and furnace kit is designed to efficiently update your homes HVAC system. The kit includes a GSXN4 air conditioner, a GMVC96 furnace, and a cased CHPTA evaporator coil. This combination is suitable for regions with moderate cooling needs and long, cold winters. Each component prioritizes ease of installation and durability, ensuring both immediate and long-term value. The Goodman GSXN403010 GMVC960804CN CHPTA3630C4 air conditioner and furnace kit offers a comprehensive comfort solution backed by renowned craftsmanship.

• All-Aluminum Coil
• Internal Thermostatic Expansion Valve
• Condensate Management
• Advanced Heat Exchanger Design
• Secondary Heat Exchanger
• Quiet Comfort
• Venting Options
• ComfortBridge Compatible
• Auto-Comfort
• Easy Integration
• Energy-Efficient Compressor
• Copper Tube/Enhanced Aluminum Fin Coil
• Factory-Installed Filter Drier
• Heavy-Gauge Galvanized-Steel Cabinet
• Extended Warranty

Product Highlights

This bundled HVAC system includes a 2.5-ton GSXN4 air conditioner, an 80k BTU GMVC96 variable-speed furnace, and a CHPTA evaporator coil. These components come together to ensure optimal performance, energy efficiency, and durability.

Product Information

Standard Information

• Product Category: Furnace & Air Conditioner Package
• Operating Mode: Heating and Cooling
• Modulating/Staging: Two Stage
• Blower Motor Type: ECM Variable-Speed
• Coil Width: 21 Inches
• Configuration: Horizontal
• DOE Regional Compliance: Nationwide (Except CA)
• Subscription Eligible: No

Performance

• AFUE: 96%
• Capacity: 2.5 Tons
• Cooling Capacity: 28200 BTU
• Nominal Cooling Capacity: 30000 BTU
• Heating BTU: 80000
• Maximum Air Flow: 1600 CFM
• SEER2: 15
• EER2: 11.7

Dimensions

• Product Weight: 352 Pounds
• Shipping Weight: 391 Pounds
• Product Dimensions: Length, Width, Height

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN4-2.5 ton air conditioner provides reliable cooling with a 14.3 SEER2 rating. Its designed for single-stage operation and uses R-410A refrigerant for efficient and environmentally friendly cooling.

• Type: Condenser
• Product Line: GSXN4
• Operating Mode: Cooling
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Compressor Stages: Single Stage
• DOE Regional Compliance: Nationwide
• Installation Available: Yes
• Capacity: 2.5 Tons
• Cooling BTU: 30000
• Cooling Capacity: 30000 BTU
• Maximum Sound Level: 72 dB
• SEER2: 14.3
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 15.5 Amps
• Recommended Breaker Size: 25 Amps
• Product Dimensions: Height: 39.5 Inches, Width: 29 Inches, Depth: 29 Inches
• Product Weight: 156 Pounds
• Shipping Weight: 180 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Warranty: Parts Warranty: Limited* 10 Years, Compressor Warranty: LIFETIME Years

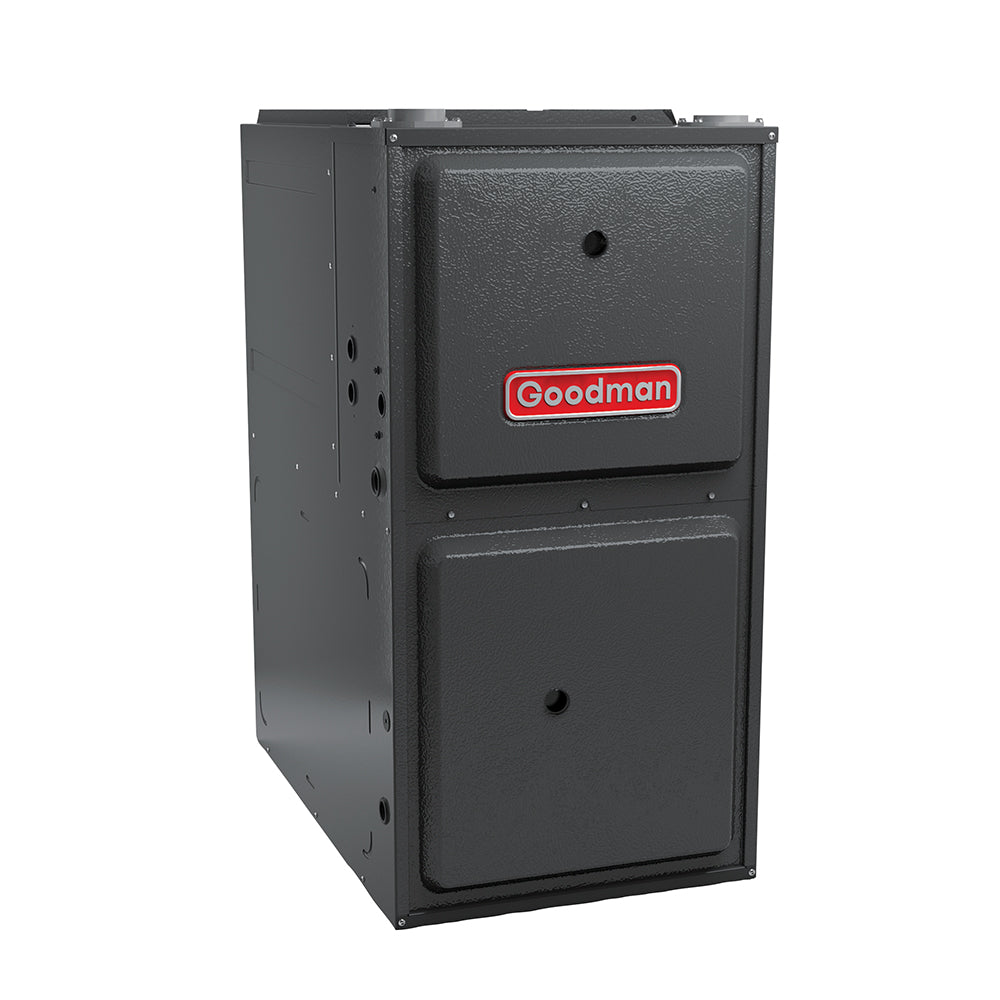

The GMVC960804CN Gas Furnace

The Goodman GMVC96 is an 80,000 BTU variable-speed upflow gas furnace. It features a high-efficiency design with an AFUE of 96%, dual-diameter heat exchanger, and compatibility with ComfortBridge communicating controls.

• Type: Gas Furnace
• Product Line: GMVC96
• Product Category: Furnace
• Fuel Type: Natural Gas
• Vent Type: Direct Vent
• Modulating/Staging: Two Stage
• Blower Motor Type: ECM Variable-Speed
• Configuration: Upflow/Horizontal
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• Installation Available: Yes
• AFUE: 96%
• Heating BTU: 80000
• High Fire Input: 80000 BTU
• High Fire Output: 76800 BTU
• Low Fire Input: 56000 BTU
• Low Fire Output: 53760 BTU
• Maximum Air Flow: 1600 CFM
• Ultra Low NOx Emissions: No
• Low NOx Emissions: Yes
• Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 10.6 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 or 3 Inches
• Product Dimensions: Height: 34.5 Inches, Width: 21 Inches, Depth: 28.75 Inches
• Product Weight: 141 Pounds
• Shipping Weight: 141 Pounds
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 7368835
• Warranty: Parts Warranty: 5 Years, Heat Exchanger Warranty: 20 Years

The CHPTA3630C4 Cased Evaporator Coil

The Goodman CHPTA is a 3.0 ton horizontal A coil that comes with a pre-installed thermostatic expansion valve (TXV). This cased evaporator is 21 inches wide and designed to work in tandem with Goodman air conditioners and furnaces for optimal performance and efficiency.

• Type: Evaporator Coil
• Product Line: CHPTA
• Product Category: Evaporator Coil
• Refrigerant Type: R-410A
• Casing: Cased
• Style: A Coil
• Configuration: Horizontal
• Installation Available: Yes
• TXV Installed: Yes
• Capacity: 3.0 Tons
• Cooling BTU: 36000
• Nominal Minimum Cooling Capacity
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Dimensions: Height: 21 Inches, Width: 30 Inches, Depth: 21 Inches
• Product Weight: 55 Pounds
• Shipping Weight: 70 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Warranty: 10 Years
