Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal

Features

The Goodman GSXN403010 GCVC960804CN CHPTA3630C4 central air and furnace kit is designed to update your homes HVAC system efficiently. This kit includes the GSXN4 air conditioner, GCVC96 furnace, and CHPTA evaporator coil, making it suitable for areas with moderate cooling requirements and cold winters. Designed for easy installation and long-term durability, the Goodman air conditioner and furnace kit ensures upfront and long-term value.

• All-Aluminum Coil for efficient heat transfer
• Internal Thermostatic Expansion Valve for streamlined installation
• Condensate Management with foil-faced insulation
• Advanced Heat Exchanger Design with dual-diameter tubular design
• Secondary Heat Exchanger for additional heat production
• Quiet Comfort with low sound level components
• Various Venting Options for easy installation
• ComfortBridge™ Compatible for streamlined maintenance
• Auto-Comfort mode for efficient cooling
• Easy Integration with humidifiers and electronic air cleaners

Bundle Highlights

The Goodman GSXN4 air conditioner, GCVC96 furnace, and CHPTA evaporator coil combine to provide a comprehensive HVAC solution. Each component is designed to complement the others, resulting in an efficient and reliable system.

Product Information

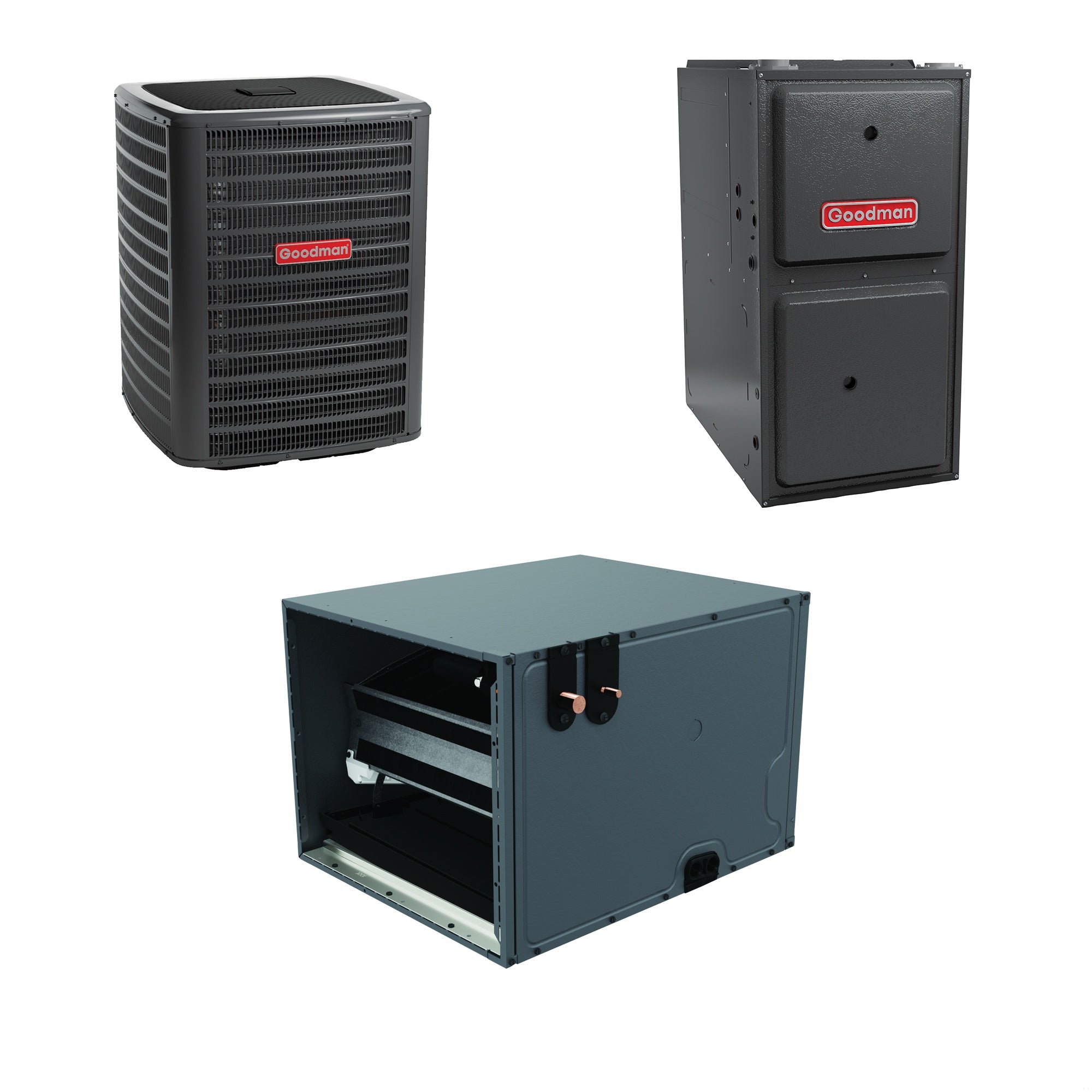

The Goodman GSXN403010 GCVC960804CN CHPTA3630C4 Bundle System

This bundle includes a GSXN403010 air conditioner, GCVC960804CN gas furnace, and CHPTA3630C4 cased evaporator coil. It is designed to provide efficient cooling and heating for your home.

• Brand: Goodman
• MPN: GSXN403010, GCVC960804CN, CHPTA3630C4

The Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner by Goodman is built to provide efficient cooling with a capacity of 2.5 tons and 30,000 BTU. It uses a single-stage compressor and R-410A refrigerant.

• Energy-efficient compressor for reliable performance
• Copper Tube/Enhanced Aluminum Fin Coil for maximum efficiency
• Factory-Installed Filter Drier to remove moisture and impurities
• Heavy-Gauge Galvanized-Steel Cabinet for durability

The GCVC960804CN Gas Furnace

The GCVC960804CN gas furnace from Goodman offers a capacity of 80,000 BTU/Hr with 96% AFUE. It has a two-stage blower motor and can operate in downflow or horizontal configurations.

• Advanced Heat Exchanger Design for efficient heat transfer
• Secondary Heat Exchanger for additional heat
• Quiet Comfort with low sound levels
• ComfortBridge™ Compatible for easy maintenance

The CHPTA3630C4 Cased Evaporator Coil

The CHPTA3630C4 is a 3.0-ton horizontal A coil with a factory-installed TXV. It is designed to enhance the overall efficiency and comfort of the HVAC system.

• All-Aluminum Design for efficient heat transfer
• Internal Thermostatic Expansion Valve for ideal refrigerant flow
• Foil-Faced Insulation to inhibit condensate formation
• UV-Resistant DecaBDE-Free Thermoplastic Drain Pan for safety
