Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GMVC800804CX CAPTA3626C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,211.00
$4,211.00

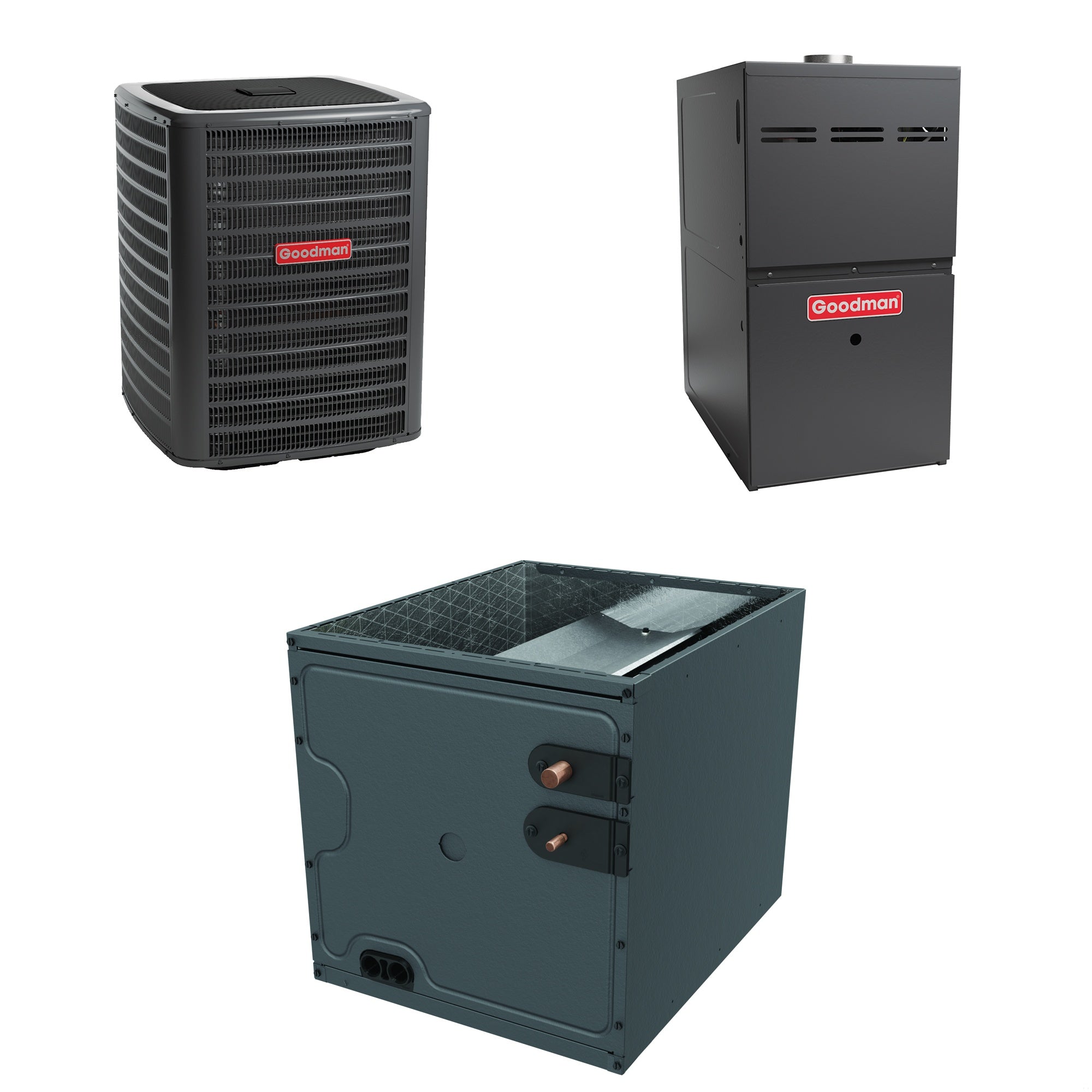

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage (GMVC800804CX) Quantity: 1
Goodman CAPTA3626C4 Evaporator Coil, 3 Ton, Upflow/Downflow Quantity: 1
Manuals:

Specification Highlights

SEER2
15
Capacity
2.5 Tons
AFUE
80 %

View More

LTL Delivery

This product weighs 355 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSXN403010 GMVC800804CX CAPTA3626C4 Bundle System

This Goodman bundle features the GSXN4 air conditioner, the GMVC80 furnace, and the CAPTA cased evaporator coil. Each component is crafted for ease of installation and durability, providing both immediate and long-term value. This system is ideal for regions with moderate cooling needs and long, cold winters.

  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Condensate Management
  • Advanced Heat Exchanger Design
  • Variable Speed ECM Motor
  • ComfortBridge Technology

Product Highlights

The Goodman GSXN403010 GMVC800804CX CAPTA3626C4 bundle includes an air conditioner, furnace, and cased evaporator coil, providing a complete comfort solution with superior craftsmanship.

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton air conditioner with a 15 SEER2 rating, designed for efficient cooling.

  • Energy-Efficient Compressor
  • Copper Tube/Enhanced Aluminum Fin Coil
  • Factory-Installed Filter Drier
  • Heavy-Gauge Galvanized-Steel Cabinet

Product Information

Standard Information

  • Product Line: GSXN4
  • Cooling Capacity: 30000 BTU
  • Maximum Sound Level: 72 dB

The GMVC800804CX Gas Furnace

The GMVC800804CX is an 80,000 BTU furnace with an 80% AFUE rating, featuring a variable-speed ECM motor.

  • Advanced Heat Exchanger Design
  • Quiet Comfort
  • ComfortBridge Technology
  • Heavy-Duty Tubular Heat Exchanger

Product Information

Standard Information

  • Product Line: GMVC80
  • Heating BTU: 80000
  • Maximum Air Flow: 1600 CFM

The CAPTA3626C4 Cased Evaporator Coil

The CAPTA3626C4 is a 3-ton upflow/downflow evaporator coil with a TXV included.

  • All-Aluminum Design
  • Factory-Installed Internal Thermostatic Expansion Valve
  • Foil-Faced Insulation
  • Rust-Resistant Thermoplastic Drain Pan

Product Information

Standard Information

  • Product Line: CAPT
  • Cooling BTU: 36000
  • Cabinet Width: 21 Inches
Specifications
Overview
SEER2
15
Capacity
2.5 Tons
AFUE
80 %
Configuration
Upflow
Heating BTU
80000
Cooling Capacity
28400 BTU
Maximum Air Flow
1600 CFM
EER2
11.7
DOE Regional Compliance
Nationwide
Product Line
GSXN4
Compressor Stages
Single Stage
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
R-410A
Refrigerant Type
Voltage
208/230 Volts
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Product Line
GMVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Low NOx Emissions
Yes
Voltage
115 Volts
Maximum Air Flow
1600 CFM
DOE Regional Compliance
Nationwide (Except CA)
Low NOx Emissions
Yes
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
118 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Lifetime Years
Heat Exchanger Warranty
AFUE
80 %
Heating BTU
80000
Low Fire Input
56000 BTU
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Output
44800 BTU
Ultra Low NOx Emissions
No
Parts Warranty
10 Years
Product Line
CAPT
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
26 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
57 Pounds
Shipping Weight
67 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
