Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GMVC800805CX CHPTA3630C4
Availability: Out Of Stock
$3,991.89
$3,991.89

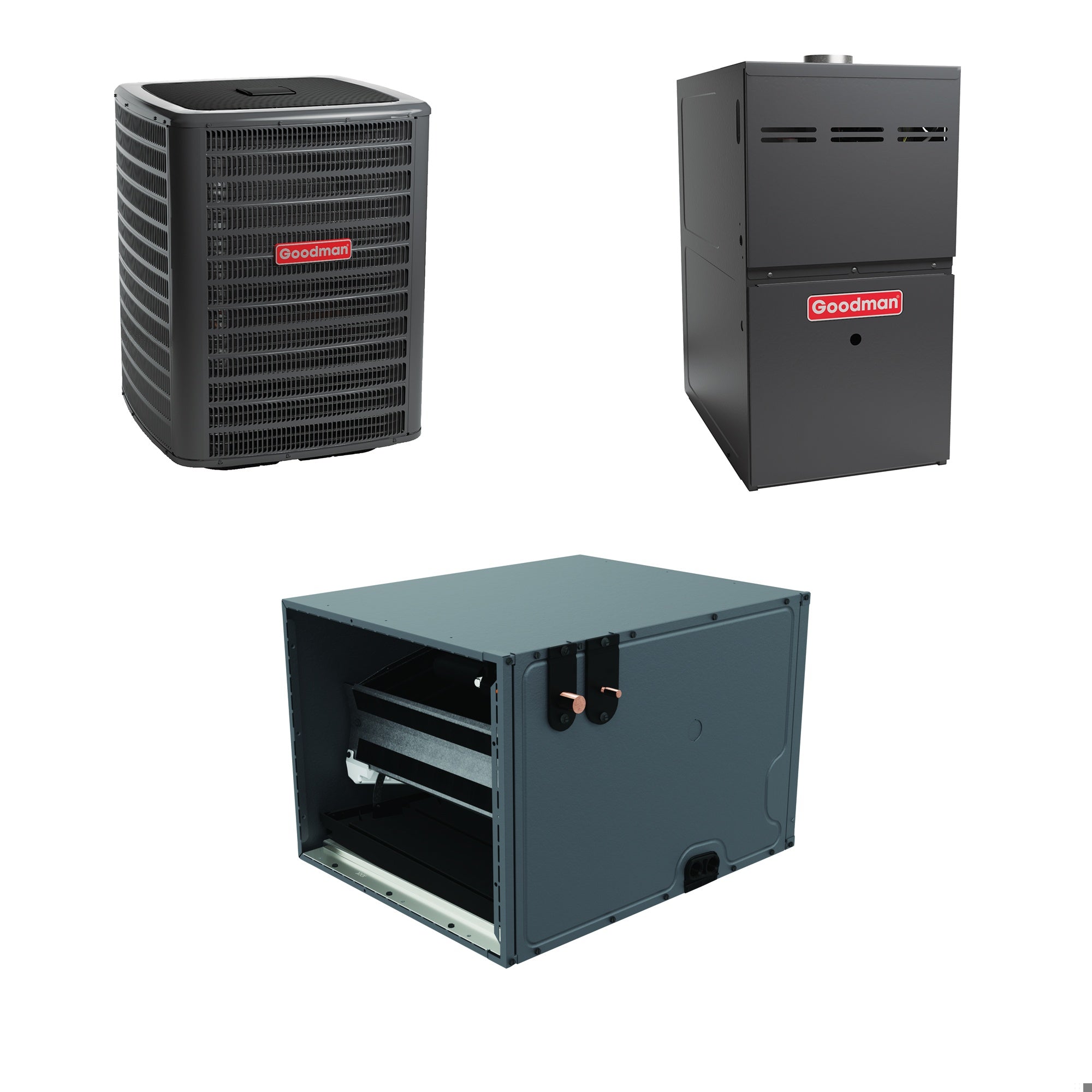

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - Cooling Only - R-410A Quantity: 1
Goodman GMVC800805CX GMVC8 Series 80.00% AFUE 80000 BTU Horizontal/Upflow Variable Speed Furnace Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Brand
Goodman
MPN
GSXN403010 GMVC800805CX CHPTA3630C4
Categories
Air Conditioner Systems, Central Air Conditioners, Gas Electric Split Systems

View More

LTL Delivery

This product weighs 200 lbs each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSXN403010 GMVC800805CX CHPTA3630C4 bundle system provides an efficient solution for your home’s heating and cooling needs. This bundle consists of the GSXN4 air conditioner, GMVC80 furnace, and the CHPTA evaporator coil. Each component is designed for durability and ease of installation, offering value both upfront and over the long term. Ideal for regions with moderate cooling needs but requiring a multi-speed furnace for cold winters, this system is built to deliver consistent comfort year-round.

  • Energy-efficient compressor
  • All-aluminum evaporator coil
  • Factory-installed thermostatic expansion valve
  • Variable speed ECM motor
  • ComfortBridge™ technology
  • 10-year limited parts warranty upon registration

Product Highlights

The Goodman GSXN403010 GMVC800805CX CHPTA3630C4 air conditioner and furnace bundle is a complete comfort solution for your home, ensuring efficient heating and cooling with reliable components.

Product Information

Standard Information

  • Brand: Goodman
  • MPN: GSXN403010 GMVC800805CX CHPTA3630C4
  • Categories: Air Conditioner Systems, Central Air Conditioners, Gas Electric Split Systems

The Goodman GSXN403010 GMVC800805CX CHPTA3630C4 Bundle System

This HVAC bundle combines a GSXN4 air conditioner, a GMVC80 furnace, and a cased CHPTA evaporator coil. The system is designed for regions with average cooling demands and long, cold winters.

  • All components focus on installation ease and durability
  • Provides upfront and long-term value
  • Optimal for comfort and consistent performance

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN4 air conditioner features an energy-efficient compressor and an all-aluminum evaporator coil.

  • Enhanced heat transfer with aluminum fins and copper tubing
  • Factory-installed filter drier
  • Quiet operation at 72 dB
  • Galvanized steel cabinet for durability

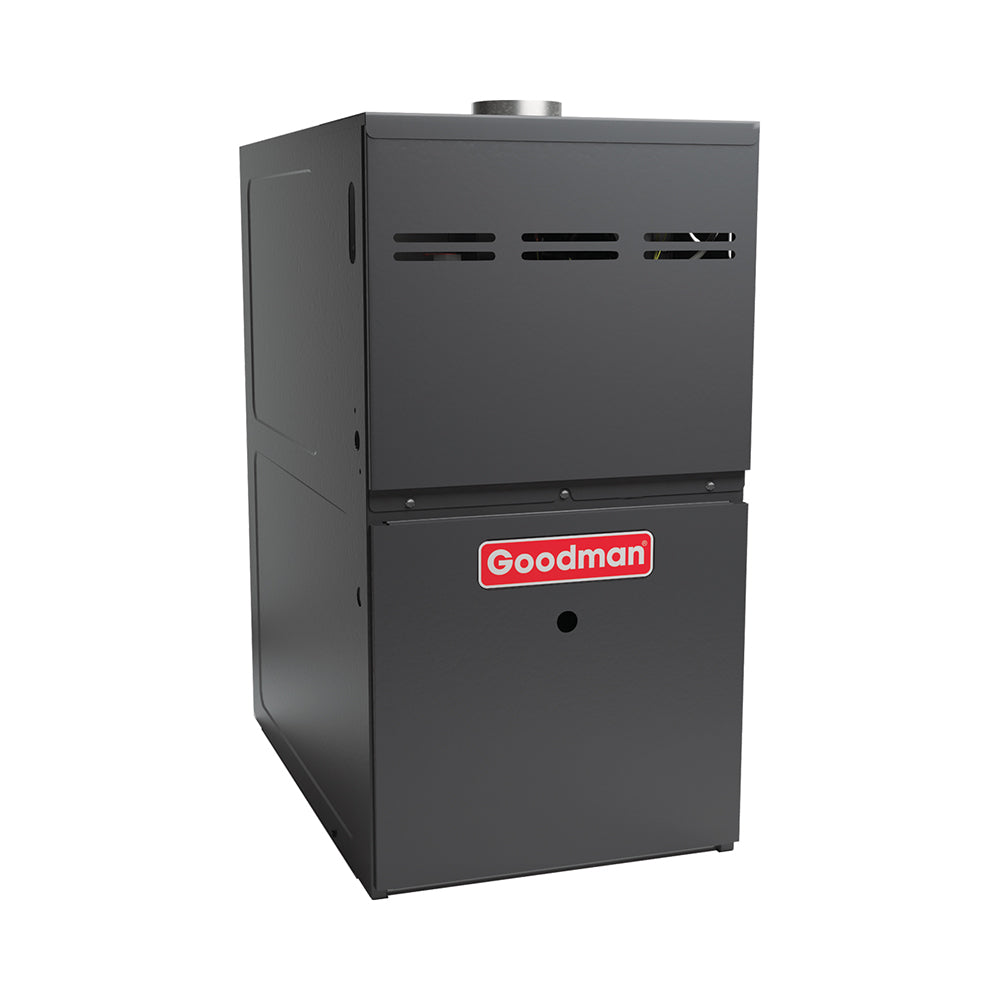

The GMVC800805CX Gas Furnace

The GMVC80 gas furnace uses a variable speed ECM motor and features a heavy-duty tubular heat exchanger.

  • Two-stage modulating operation
  • ComfortBridge™ monitoring technology
  • Ultra-low NOx emissions
  • Quiet operation and consistent heating

The CHPTA3630C4 Cased Evaporator Coil

The CHPTA evaporator coil comes with an all-aluminum design and a factory-installed thermostatic expansion valve.

  • Foil-faced insulation for condensate inhibition
  • UV-resistant thermoplastic drain pan
  • Optimized refrigerant flow
  • Easy installation with horizontal configuration
Specifications
Overview
Brand
Goodman
MPN
GSXN403010 GMVC800805CX CHPTA3630C4
Categories
Air Conditioner Systems, Central Air Conditioners, Gas Electric Split Systems
Energy Efficiency Rating (SEER2)
15
Heating Capacity (BTU/Hr)
80000
Cooling Capacity (Tons)
2.5
Cooling BTU
30000
Heating AFUE
80%
Maximum Air Flow (CFM)
2000
Compressor Stages
Single Stage
Installation Location
Outdoor
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Product Height (Inches)
39.5
Product Width (Inches)
29
Product Depth (Inches)
29
Product Weight (Pounds)
156
Shipping Weight (Pounds)
180
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Warranty Information - Parts
Limited 10 Years
Warranty Information - Compressor
Lifetime Years
Type
Gas Furnace
Product Line
GMVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Low NOx Emissions
Yes
Cabinet Width (Inches)
21
Product Width (Inches)
21
Product Depth (Inches)
28
Product Height (Inches)
33.5
Flue Connection Size (Inches)
4
Product Weight (Pounds)
121
Shipping Weight (Pounds)
121
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Electrical Data - Voltage
115 Volts
Electrical Data - Phase
1
Electrical Data - Frequency
60 Hz
Electrical Data - Minimum Circuit Ampacity
10.6 Amps
Electrical Data - Recommended Breaker Size
15 Amps
Gas Conversion Kit
Available
Modulating/Staging
Two Stage
Heating BTU
80000
Low Fire Input
56000 BTU
High Fire Input
80000 BTU
Low Fire Output
44800 BTU
High Fire Output
64000 BTU
Maximum Air Flow (CFM)
2000
Ultra Low NOx Emissions
No
Warranty Information - Parts
10 Years
Warranty Information - Heat Exchanger
Lifetime Years
General Information - Type
Evaporator Coil
Product Line
CHPTA
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
TXV Installed
Yes
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions - Cabinet Width (Inches)
21
Dimensions - Product Width (Inches)
30
Dimensions - Product Depth (Inches)
21
Dimensions - Product Height (Inches)
21
Dimensions - Product Weight (Pounds)
55
Dimensions - Shipping Weight (Pounds)
70
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Warranty Information - Parts
10 Limited Years
