GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GCVC800805CX CHPTA3630C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,301.00
$4,301.00

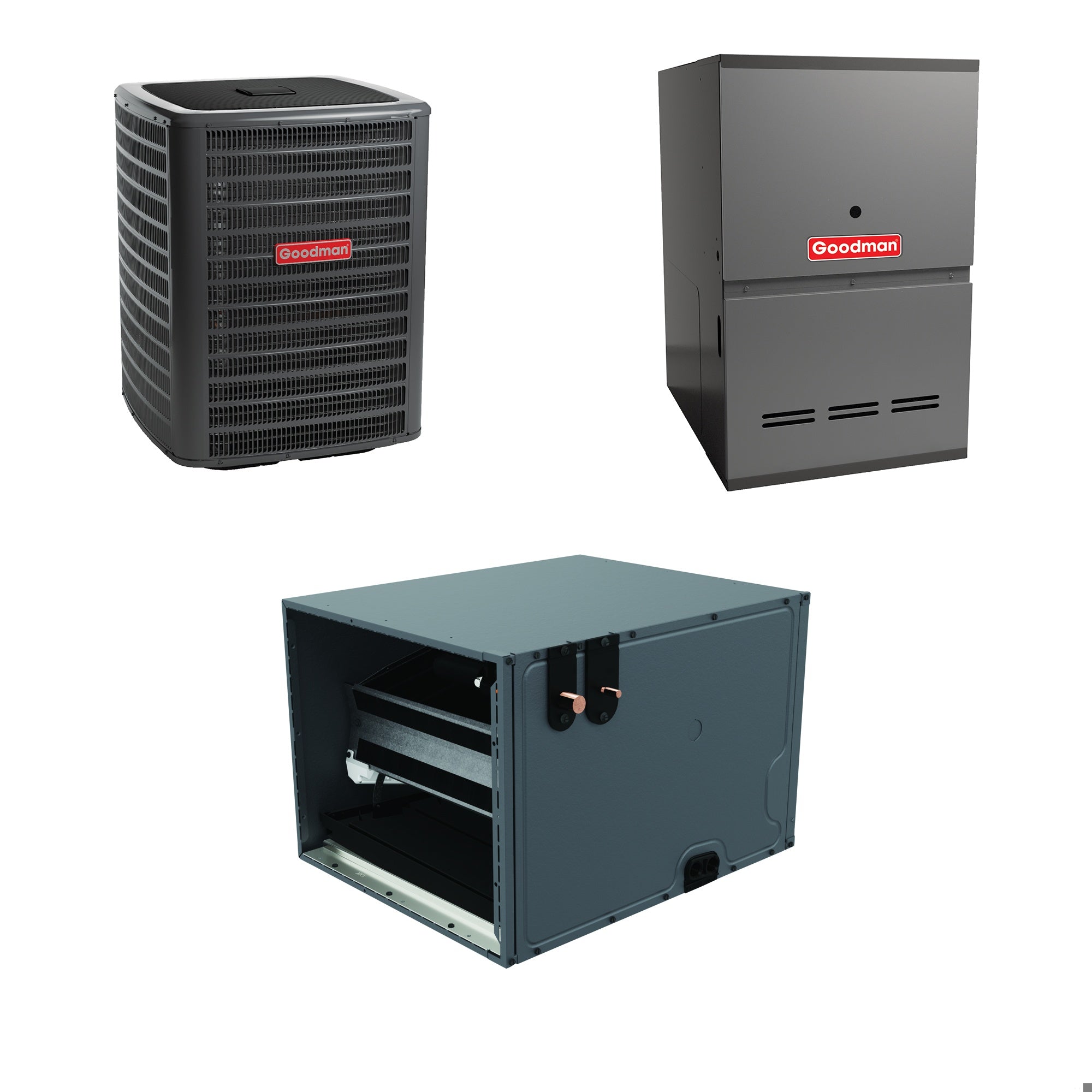

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800805CX Gas Furnace Variable Speed ECM Two Stage Downflow Horizontal 100000 BTUH Low NOx ComfortBridge Technology compatible Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1
Manuals:

Specification Highlights

SEER2
15
Capacity (Tons)
2.5
AFUE
80 %

View More

LTL Delivery

This product weighs 375 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSXN403010 GCVC800805CX CHPTA3630C4 bundle system is a comprehensive HVAC solution. This bundle includes a Goodman GSXN4 air conditioner, a GCVC80 gas furnace, and a CHPTA evaporator coil. Each component is precision-engineered for optimal performance and durability, making it an excellent choice for homes requiring efficient cooling and heating.

The Goodman GSXN403010 GCVC800805CX CHPTA3630C4 Bundle System

The air conditioner provides 2.5 tons of cooling capacity. It features aluminum fins and copper tubing in the condenser coil, ensuring superior heat transfer and energy efficiency. The included gas furnace has an 80,000 BTU heating capacity and operates at 80% AFUE, making it suitable for maintaining warmth during colder months. The cased evaporator coil is designed for horizontal installation and has a cooling capacity of 36,000 BTU, ensuring efficient refrigerant flow and heat transfer.

  • Combination of air conditioner, furnace, and evaporator coil
  • Advanced heat exchanger design
  • Variable-speed ECM motor
  • Energy-efficient compressor
  • Galvanized-steel cabinet

The Goodman GSXN4 Air Conditioner

The Goodman GSXN4 air conditioner has a 2.5-ton cooling capacity and a 14.3 SEER2 rating. It features a single-stage compressor and uses R-410A refrigerant. The units condenser coil has aluminum fins and copper tubing for maximum efficiency.

  • 14.3 SEER2 energy efficiency
  • Single-stage compressor
  • R-410A refrigerant
  • Factory-installed filter drier

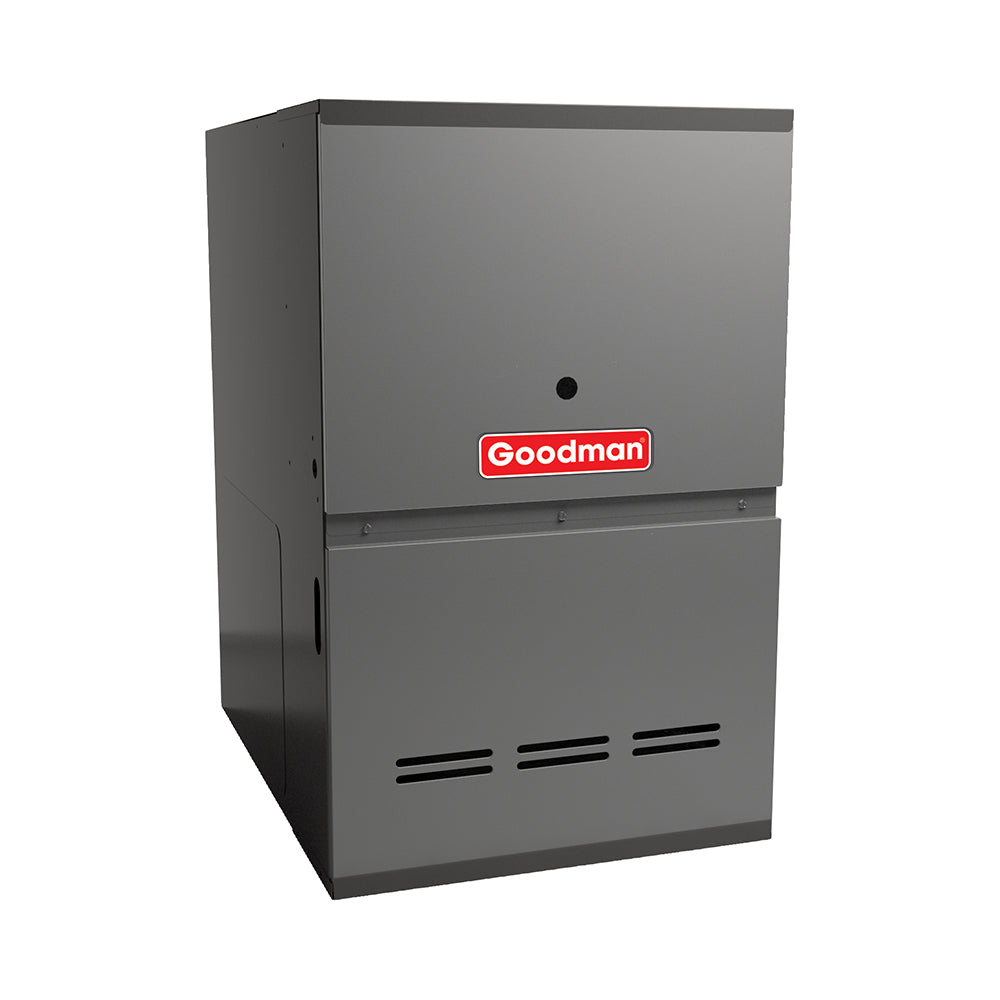

The GCVC80 Gas Furnace

The GCVC80 furnace operates at 80% AFUE and has a heating capacity of 80,000 BTU. It features a two-stage gas valve and a variable-speed ECM blower motor. The furnace includes ComfortBridge™ technology for monitoring system performance and ensuring indoor comfort.

  • 80% AFUE efficiency
  • 80,000 BTU heating capacity
  • Two-stage gas valve
  • Variable-speed ECM motor

The CHPTA Evaporator Coil

The CHPTA cased evaporator coil has a 3.0-ton cooling capacity and is designed for horizontal installation. It includes an internal thermostatic expansion valve and features foil-faced insulation to reduce condensate formation.

  • 3.0-ton cooling capacity
  • Internal thermostatic expansion valve
  • Foil-faced insulation
  • UV-resistant drain pan
Specifications
Overview
SEER2
15
Capacity (Tons)
2.5
AFUE
80 %
Cooling Capacity
28400 BTU
Maximum Air Flow
2000 CFM
Product Weight
336 Pounds
Shipping Weight
375 Pounds
Type
Gas Furnace
Product Line
GCVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Variable-Speed
Gas Conversion Kit
Available
Modulating/Staging
Two Stage
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
125 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Reference Number
202274191
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Product Category
Furnace
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
AHRI Reference Number
202274191
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
55 Pounds
Shipping Weight
70 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Reference Number
202274191
