Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GCVC800803BX CHPTA3026B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,169.00
$4,169.00

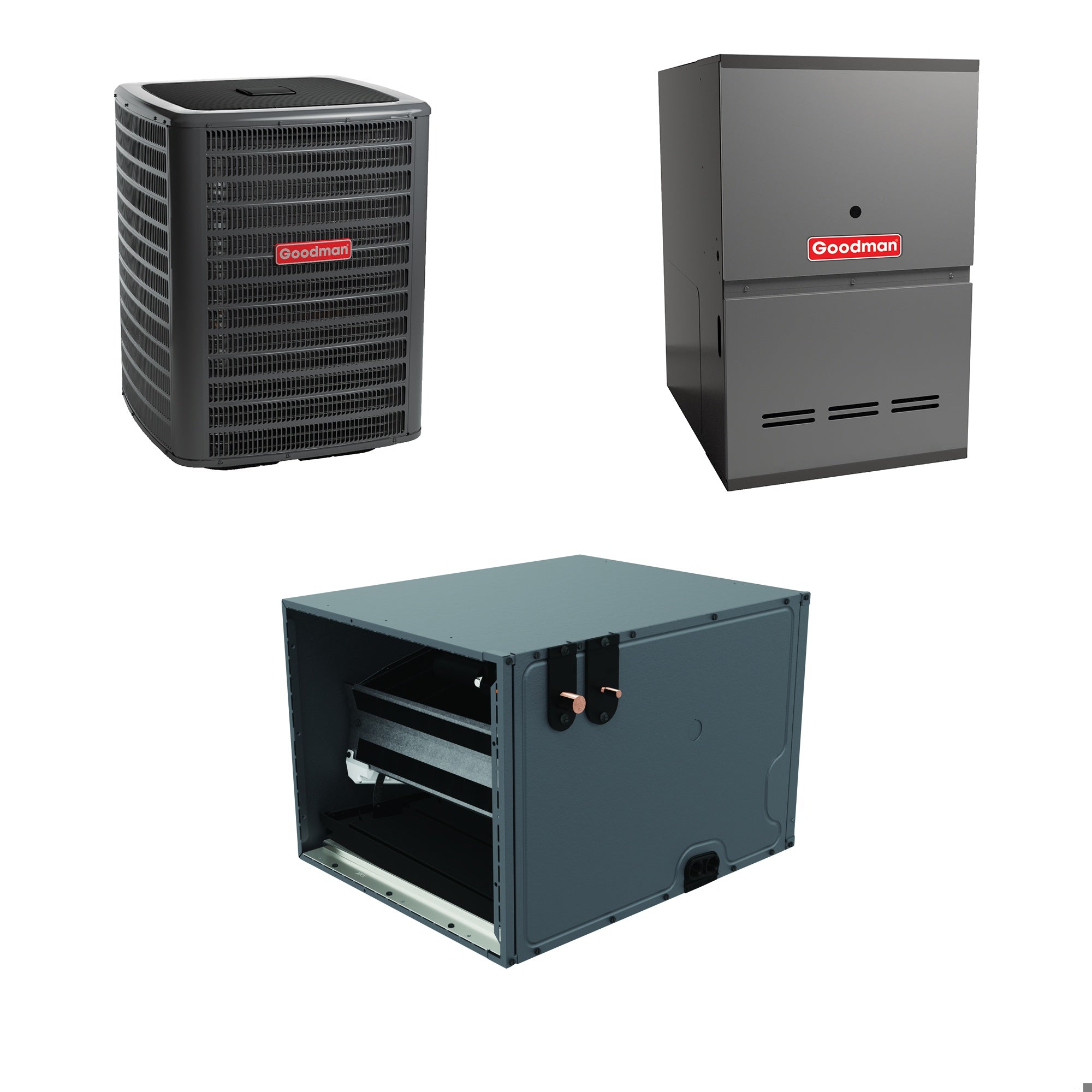

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800803BX GCVC80 80% AFUE - 80,000 BTU - Downflow/Horizontal - Furnace Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage

View More

LTL Delivery

This product weighs 350 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSXN403010 GCVC800803BX CHPTA3026B4 Bundle System is a comprehensive HVAC solution designed for efficient heating and cooling. This bundle includes a GSXN4 air conditioner, a GCVC80 furnace, and a cased CHPTA evaporator coil.

  • Efficient heating and cooling
  • Durable construction
  • Easy installation
  • Long-term value
  • Multi-speed furnace
  • Ideal for varied climates

Product Highlights

This system is designed to provide consistent comfort and is built to last, featuring advanced technology and reliable components.

Product Information

The Goodman GSXN403010 GCVC800803BX CHPTA3026B4 Bundle System

The GSXN403010 air conditioner provides 2.5 tons of cooling capacity with a SEER2 rating of 14.3, making it an efficient choice for any home. The GCVC800803BX furnace offers 80,000 BTU/Hr heating capacity with an 80% AFUE rating and variable speed motor for precise temperature control. The CHPTA3026B4 evaporator coil is cased and includes a TXV for optimal refrigerant flow.

  • Cooling Capacity: 2.5 tons
  • Heating Capacity: 80,000 BTU/Hr
  • SEER2: 14.3
  • AFUE: 80%
  • Variable Speed Motor: Yes
  • TXV Installed: Yes

Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner is designed for reliable cooling performance. It features an energy-efficient compressor, aluminum fin coil, and a factory-installed filter drier.

  • Energy-efficient compressor
  • Aluminum fin coil
  • Factory-installed filter drier
  • Single stage cooling

Goodman GCVC800803BX Gas Furnace

The GCVC800803BX furnace is built for efficient heating with its variable speed ECM motor, tubular heat exchanger, and ComfortBridge™ technology.

  • Variable speed ECM motor
  • Heavy-duty tubular heat exchanger
  • ComfortBridge™ technology
  • Quiet operation

Goodman CHPTA3026B4 Cased Evaporator Coil

The CHPTA3026B4 evaporator coil features an all-aluminum design and comes with a factory-installed TXV for efficient refrigerant flow.

  • All-aluminum coil
  • Factory-installed TXV
  • UV-resistant drain pan
  • Foil-faced insulation
Specifications
Overview
Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 inches
Configuration
Horizontal
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
AFUE
80%
Capacity
2.5 Tons
Cooling Capacity
28200 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
80000
Maximum Air Flow
1200 CFM
SEER2
14.5
EER2
11.7
Product Weight
311 pounds
Shipping Weight
350 pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791623
Type
Gas Furnace
Product Line
GCVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
AFUE
80%
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17.5 Inches
Product Height
33.5 Inches
Product Width
17.5 Inches
Product Depth
28 Inches
Shipping Weight
109 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202274190
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Type
Condenser
Product Line
GSXN4
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39.5 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Type
Evaporator Coil
Product Line
CHPTA
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Nominal Minimum Cooling Capacity
30000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17.5 Inches
Product Height
17.5 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
46 Pounds
Shipping Weight
61 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
