Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GM9S960805CN CAPTA3626C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,309.00
$4,309.00

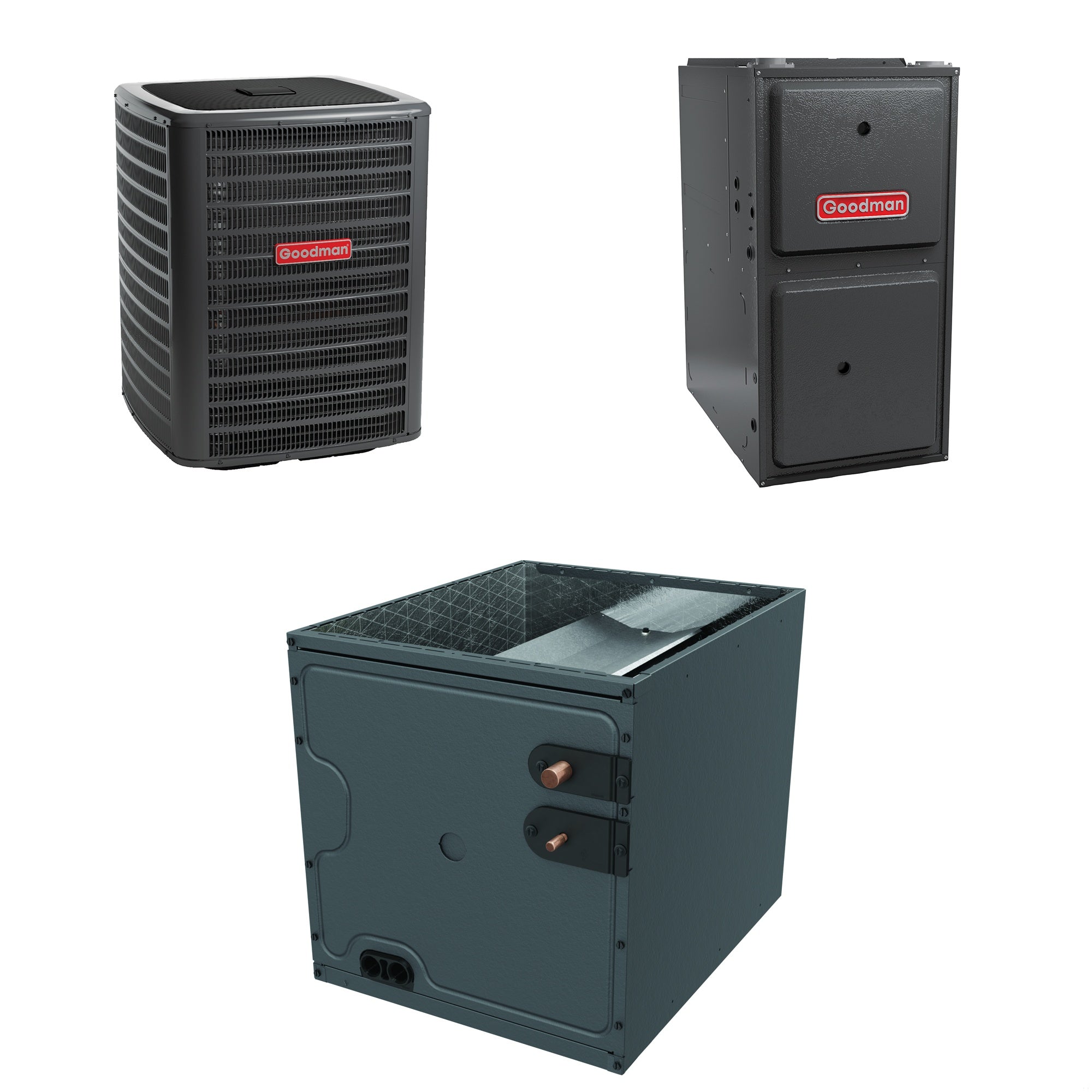

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GM9S960805CN GM9S96 96% AFUE - 80,000 BTU - Horizontal Left or Right/Upflow - ECM - Single-Stage Quantity: 1
Goodman CAPTA3626C4 Evaporator Coil, 3 Ton, Upflow/Downflow Quantity: 1
Manuals:

Specification Highlights

SEER2
14.5
AFUE
96 %
Capacity
2.5 Tons

View More

LTL Delivery

This product weighs 376 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSXN403010 GM9S960805CN CAPTA3626C4 bundle is an ideal HVAC solution for homes across the country. This system includes the GSXN403010 air conditioner, GM9S960805CN gas furnace, and the CAPTA3626C4 evaporator coil. Each component is carefully designed for durability, ease of installation, and efficient performance, providing long-term value.

Bundle Highlights

  • Includes GSXN403010 air conditioner, GM9S960805CN furnace, and CAPTA3626C4 evaporator coil
  • Combination selected for optimal cooling and heating performance
  • Designed for ease of installation and long-term reliability
  • 96% AFUE and 14.5 SEER2 efficiency ratings

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 air conditioner is designed to provide efficient cooling for your home. It includes an energy-efficient compressor that ensures optimal refrigerant flow and temperature regulation. The condenser coil, made from aluminum fins and copper tubing, maximizes heat transfer for effective cooling.

  • Energy-efficient compressor
  • Heavy-gauge galvanized-steel cabinet
  • Factory-installed filter drier
  • Aluminum fin and copper tube condenser coil

Product uses R-410A refrigerant and is rated at 14.3 SEER2.

Goodman GM9S960805CN Gas Furnace

The GM9S960805CN furnace delivers reliable heating with its aluminized-steel tubular heat exchanger. The multi-speed ECM blower motor ensures consistent air circulation, and the furnaces quiet operation makes it a comfortable choice for any home.

  • Aluminized-steel tubular heat exchanger
  • Multi-speed ECM blower motor
  • Direct vent for safety
  • Available humidifier and electronic air cleaner integration

It operates at 96% AFUE and has a high fire output of 76,880 BTU.

Goodman CAPTA3626C4 Evaporator Coil

The CAPTA3626C4 evaporator coil features an all-aluminum design that enhances heat transfer. It also includes a factory-installed thermostatic expansion valve (TXV) that ensures ideal refrigerant flow. The cased coil is insulated with foil-faced insulation to prevent condensate formation.

  • All-aluminum design
  • Factory-installed TXV
  • Foil-faced insulation
  • Rust-resistant thermoplastic drain pan

This component is compatible with R-410A refrigerant and is rated at 36,000 BTU.

Specifications
Overview
SEER2
14.5
AFUE
96 %
Capacity
2.5 Tons
Cooling Capacity
28400 BTU
Heating BTU
80000
Cooling Capacity
30000 BTU
Maximum Air Flow
2000 CFM
EER2
11.7
Energy Star Listed
No
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Compressor Warranty
Lifetime
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Refrigerant Type
R-410A
Operating Mode
Cooling
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
Maximum Sound Level
72 dB
Product Line
GM9S96
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Direct Vent
Blower Motor Type
ECM Multi-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
Modulating/Staging
Single Stage
Ultra Low NOx Emissions
No
Certification
AHRI Reference Number 207349296
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
16.93 Amps
Recommended Breaker Size
20 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
High Fire Input
80000 BTU
High Fire Output
76880 BTU
Maximum Air Flow
2000 CFM
Low NOx Emissions
Yes
Energy Star Listed
Yes
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Cabinet Width
21 Inches
Product Height
26 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
57 Pounds
Shipping Weight
67 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
AHRI Reference Number
208791664
