Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Horizontal

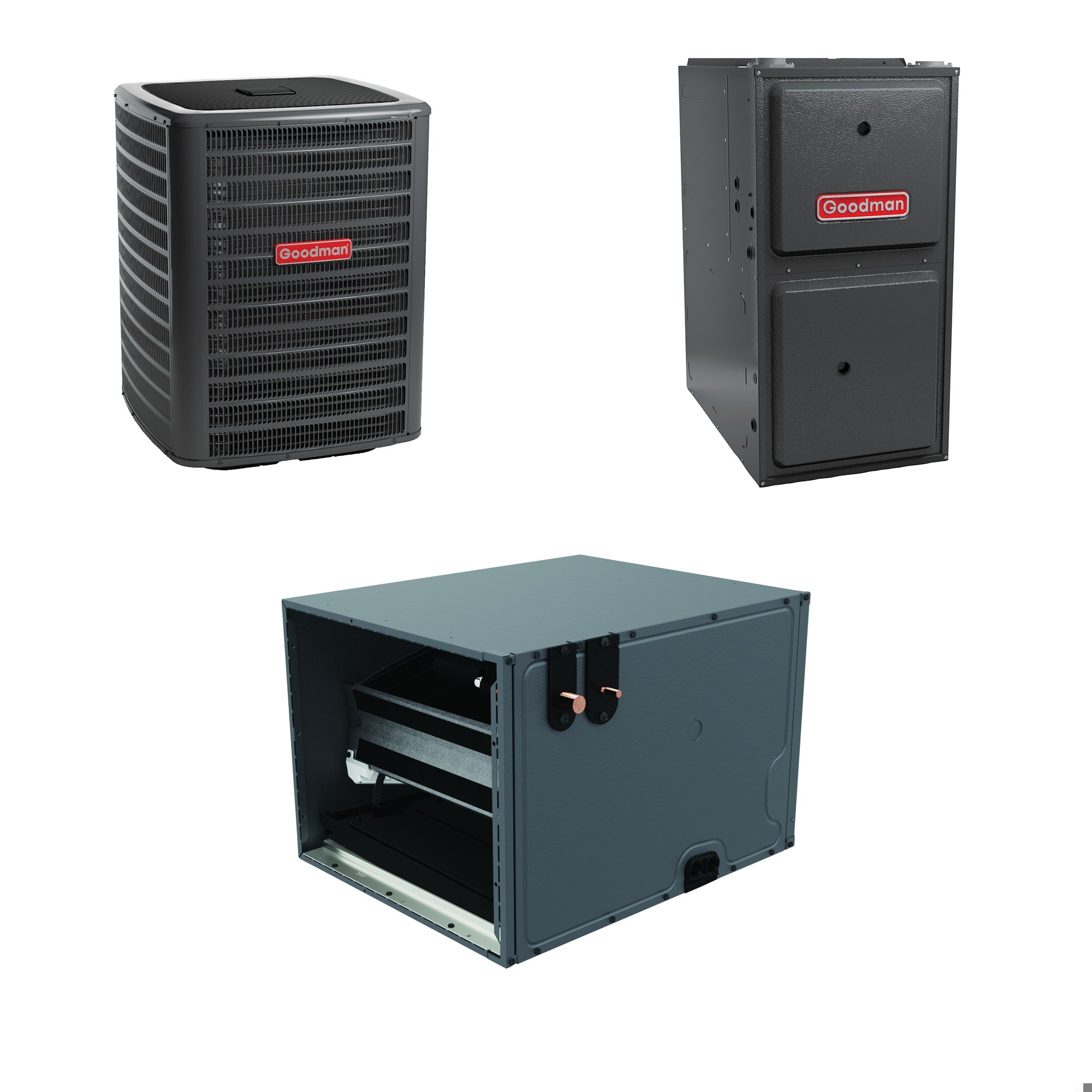

The Goodman GSXN403010 GM9S960804CN CHPTA3026C4 Bundle System

The Goodman GSXN403010 GM9S960804CN CHPTA3026C4 bundle system offers a comprehensive HVAC solution for residential settings. This bundle includes the GSXN4 air conditioner, the GM9S96 gas furnace, and the CHPTA cased evaporator coil, providing an efficient and reliable system for both heating and cooling. Designed with installation ease and durability in mind, this system ensures long-term comfort and performance.

• 14.5 SEER2 rating
• 96% AFUE efficiency
• 2.5-ton cooling capacity
• 80k BTU/hr heating capacity
• Horizontal configuration

Product Highlights

This bundle includes a multi-speed furnace, making it an ideal choice for regions with cold winters and moderate cooling needs. The system also features a factory-installed internal thermostatic expansion valve in the evaporator coil, an advanced heat exchanger design in the furnace, and an energy-efficient compressor in the air conditioner.

Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner is a key component of this bundle, offering reliable and efficient cooling performance. It features a 2.5-ton cooling capacity and a 14.3 SEER2 rating, ensuring energy-efficient operation.

• Energy-efficient compressor
• Aluminum fin and copper tube condenser coil
• Factory-installed filter drier
• Heavy-gauge galvanized-steel cabinet

Key Features

The GSXN403010 air conditioner includes an energy-efficient compressor that ensures optimal refrigerant flow. The condenser coil is designed with aluminum fins and copper tubing to maximize heat transfer. Additionally, the factory-installed filter drier removes moisture and impurities, preventing corrosion and blockages.

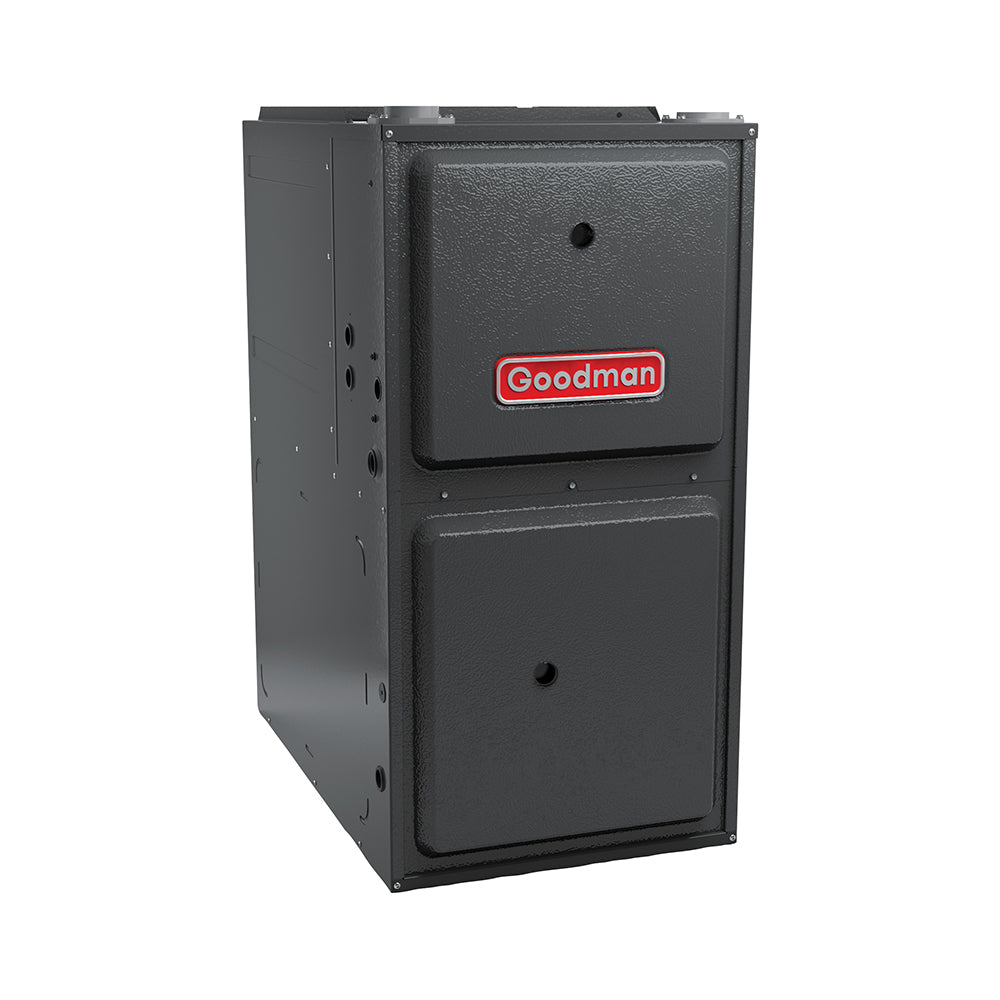

Goodman GM9S960804CN Gas Furnace

The GM9S960804CN gas furnace provides reliable heating with an efficiency of 96% AFUE. It offers an 80k BTU/hr heating capacity and features an advanced aluminized-steel tubular heat exchanger design for efficient heat transfer.

• Advanced heat exchanger design
• Secondary stainless steel heat exchanger
• Quiet operation
• Multiple venting options

Key Features

The GM9S960804CN furnace employs an aluminized-steel heat exchanger and a secondary stainless steel heat exchanger to enhance heat transfer and longevity. The blower, motor, and gas valve are selected for low sound levels, ensuring quiet operation. Multiple venting options allow flexibility in installation.

Goodman CHPTA3026C4 Cased Evaporator Coil

The CHPTA3026C4 evaporator coil is designed to provide efficient cooling when paired with the GSXN403010 air conditioner. It features a 2.5-ton capacity and includes a factory-installed internal thermostatic expansion valve.

• All-aluminum coil design
• Internal thermostatic expansion valve
• Foil-faced insulation
• Thermoplastic drain pan with secondary connections

Key Features

The CHPTA3026C4 coil utilizes an all-aluminum design with fins and grooved tubes to maximize heat transfer. The internal thermostatic expansion valve maintains ideal refrigerant flow, while the foil-faced insulation and UV-resistant thermoplastic drain pan manage condensate effectively.
