Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GM9S800804BX CAPTA3626B4
Availability: Out Of Stock
$2,686.49
$2,686.49
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - Cooling Only - R-410A Quantity: 1
Goodman GM9S800804BX 80% AFUE GM9S80 Low NOx Gas Furnace, Multi-Speed ECM, Single-Stage, Upflow/Horizontal, 80000 BTU Quantity: 1
Goodman CAPTA3626B4 Evaporator Coil, 3 Tons, Upflow/Downflow, R-410A Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Single Stage

View More

LTL Delivery

This product weighs 183 lbs each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

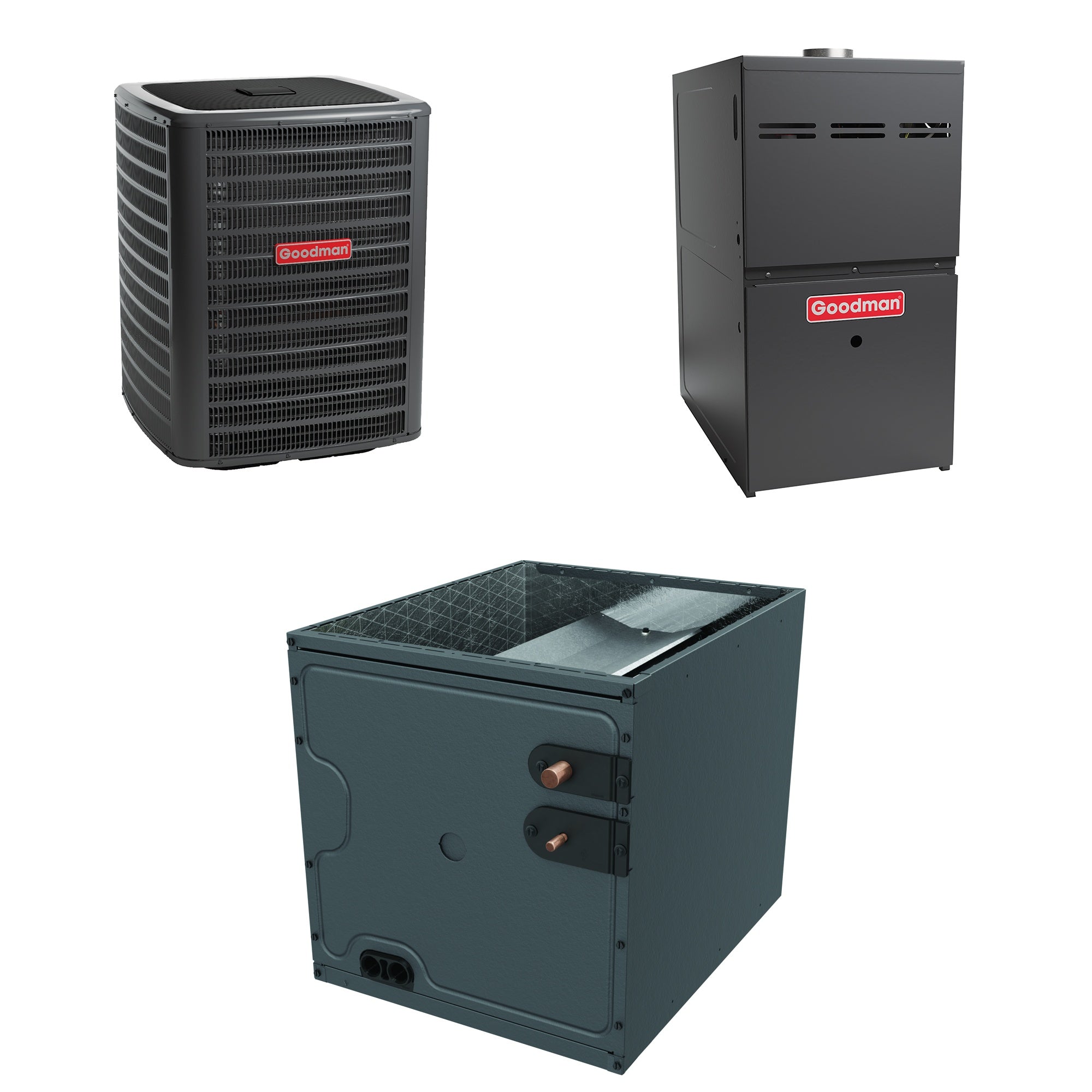

The Goodman GSXN403010 GM9S800804BX CAPTA3626B4 Bundle System

The Goodman GSXN403010 GM9S800804BX CAPTA3626B4 bundle system is a comprehensive HVAC solution designed to upgrade your homes heating and cooling efficiency. This setup includes the GSXN4 air conditioner, the GM9S80 furnace, and the CAPTA cased evaporator coil, all focusing on durability and ease of installation. These components are ideal for areas requiring moderate cooling and robust heating, providing an efficient, long-lasting solution backed by superior craftsmanship.

  • All-Aluminum Coil for enhanced durability
  • Factory-Installed Internal Thermostatic Expansion Valve
  • Energy-Efficient Compressor
  • Galvanized-Steel Cabinet for protection
  • Multi-Speed ECM Motor for efficiency
  • Extended Warranty up to 10 years

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 air conditioner is engineered to deliver efficient cooling. With a SEER2 rating of 14.3 and a cooling capacity of 2.5 tons, it offers reliable performance. The copper tube and enhanced aluminum fin coil maximize heat transfer, while the factory-installed filter drier ensures longevity.

  • SEER2 Rating: 14.3
  • Cooling Capacity: 2.5 Tons
  • Energy-Efficient Compressor
  • Galvanized-Steel Cabinet
  • Factory-Installed Filter Drier
  • Quiet Comfort Operation

Goodman GM9S800804BX Gas Furnace

The Goodman GM9S800804BX furnace provides 80,000 BTU/hr heating with an AFUE rating of 80%. Featuring a multi-speed ECM blower motor and advanced aluminized-steel tubular heat exchanger, it ensures efficient and quiet operation. The self-diagnostic control board and extended warranty add to its reliability.

  • Heating Capacity: 80,000 BTU/hr
  • AFUE Rating: 80%
  • Aluminized-Steel Tubular Heat Exchanger
  • Multi-Speed ECM Motor
  • Self-Diagnostic Control Board
  • Quiet Operation

Goodman CAPTA3626B4 Cased Evaporator Coil

The Goodman CAPTA3626B4 cased evaporator coil, with a cooling capacity of 3 tons, ensures effective heat transfer. Its all-aluminum construction, factory-installed thermostatic expansion valve, and condensate management system make it a reliable component of the bundle system.

  • Cooling Capacity: 3 Tons
  • All-Aluminum Coil
  • Factory-Installed Thermostatic Expansion Valve
  • Condensate Management System
  • Upflow/Downflow Configuration
  • Durable Construction
Specifications
Overview
Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Single Stage
Blower Motor Type
ECM Multi-Speed
Coil Width
17.5 Inches
Configuration
Upflow
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
AFUE
80 %
Capacity
2.5 Tons
Cooling Capacity
28400 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
80000
Maximum Air Flow
1600 CFM
SEER2
14.5
EER2
11.7
Product Weight
330 Pounds
Shipping Weight
364 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791679
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
General Information
Gas Furnace
Product Line
GM9S80
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Single Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
AFUE
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Maximum Air Flow
1600 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.45 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 3/8 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Product Weight
120 Pounds
Shipping Weight
120 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207254786
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Evaporator Coil
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
Installation Available
Yes
TXV Installed
Yes
Capacity
3 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
54 Pounds
Shipping Weight
64 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
