Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Upflow

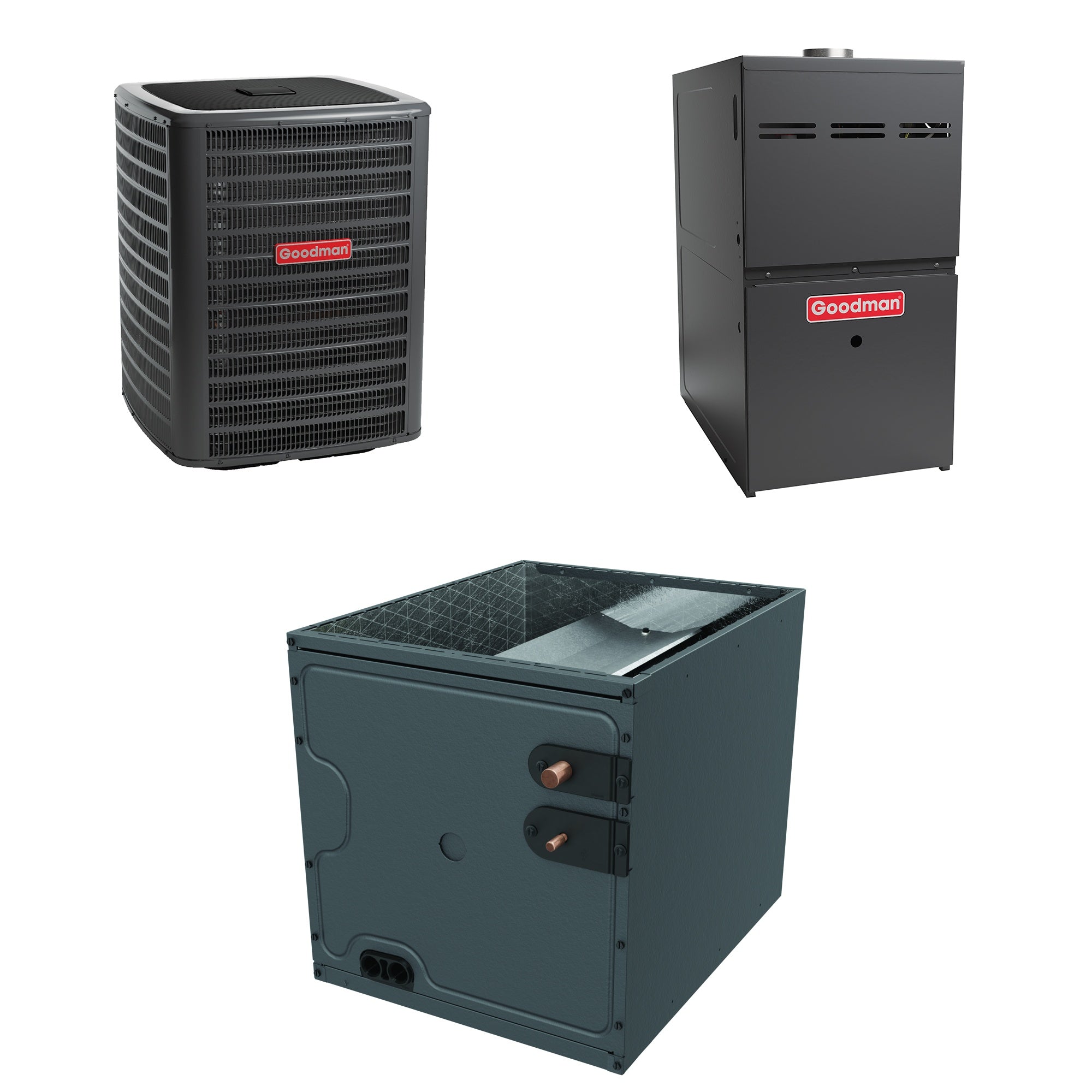

The Goodman GSXN403010 GM9S800804BN CAPTA3626B4 Bundle System

The Goodman GSXN403010 GM9S800804BN CAPTA3626B4 is a complete HVAC solution. This bundle includes the GSXN4 air conditioner, GM9S80 furnace, and CAPTA cased evaporator coil. Designed for areas requiring moderate cooling and multi-speed furnace functionality, this system prioritizes ease of installation and durability.

Product Features

• Factory-installed internal thermostatic expansion valve
• Energy-efficient compressor
• Aluminum fins and copper tubing on the condenser coil
• Multi-speed ECM motor for precise temperature control
• Self-diagnostic control board for reliable operation

Product Information

Standard Information

• Weight: 330 lbs
• Cooling Capacity: 2.5 tons
• Heating Capacity: 80000 BTU
• SEER2: 14.5

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a part of the GSXN4 series, offering 2.5 tons of cooling capacity and an efficiency rating of 14.3 SEER2. Utilizing R-410A refrigerant, it has a single-stage compressor and features a heavy-gauge galvanized-steel cabinet for long-lasting durability. It includes a filter drier to remove moisture and impurities.

• Cooling BTU: 30000
• Product Weight: 156 lbs
• Maximum Sound Level: 72 dB
• Minimum Circuit Ampacity: 15.5 Amps

The GM9S800804BN Gas Furnace

The Goodman GM9S800804BN is an 80k BTU gas furnace with 80% AFUE. It features a single-stage blower motor, an aluminized-steel heat exchanger, and operates quietly. The unit is also equipped with a self-diagnostic control board for continuous monitoring and easy troubleshooting.

• Heating BTU: 80000
• Product Weight: 120 lbs
• Cabinet Width: 17.5 inches
• Flue Connection Size: 4 inches

The CAPTA3626B4 Cased Evaporator Coil

The Goodman CAPTA3626B4 is a 3-ton cased evaporator coil designed for upflow/downflow configurations. Featuring an all-aluminum coil design, it includes a factory-installed internal thermostatic expansion valve (TXV). The unit is built for efficient condensate management and features rust-resistant components.

• Cooling BTU: 36000
• Product Weight: 54 lbs
• Cabinet Width: 17.5 inches
• Suction Connection Size: 7/8 inch
