Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GM9S800804BN CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$3,480.00
$3,480.00

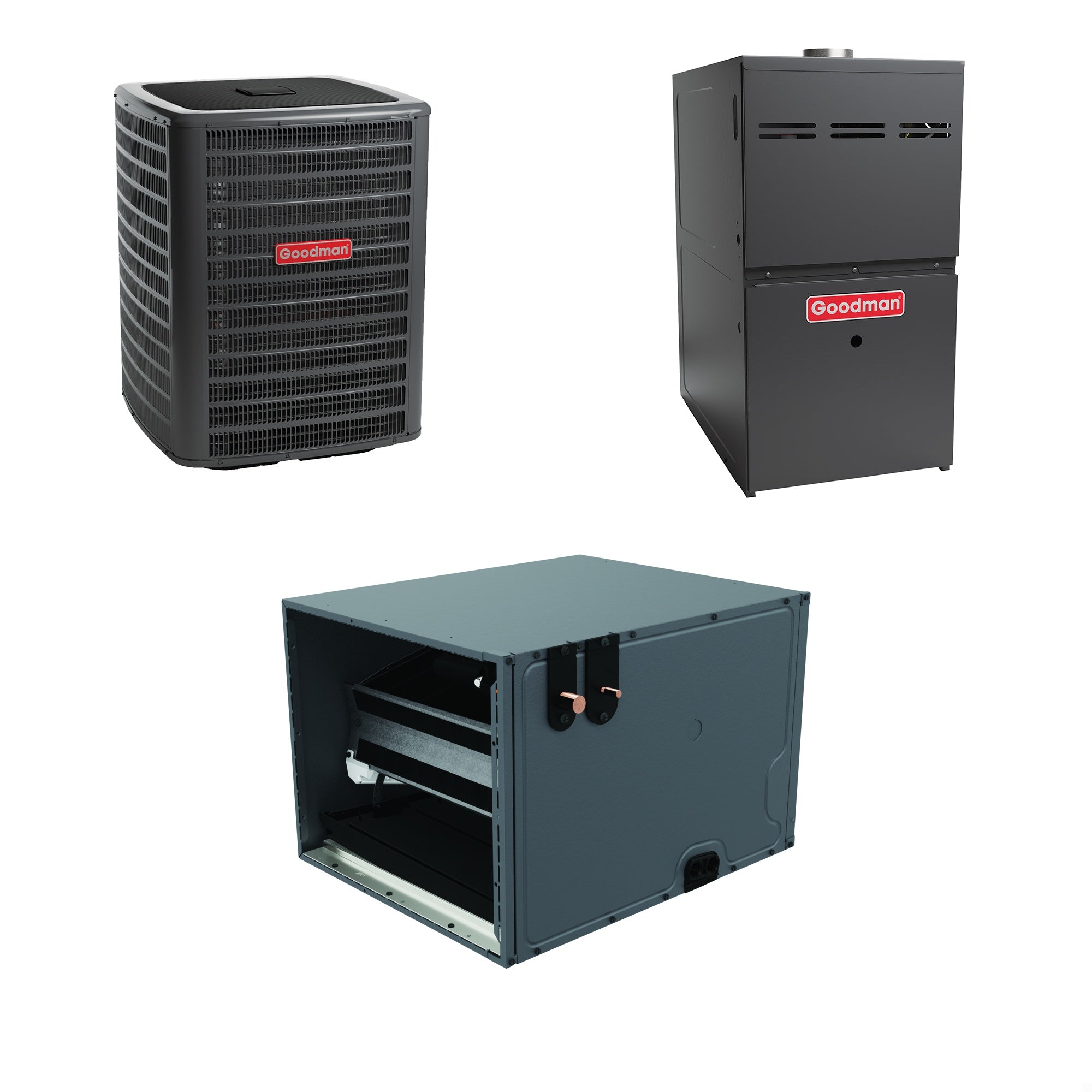

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GM9S800804BN GM9S80 Series 80% AFUE - 80,000 BTU - Horizontal Left or Right/Upflow - ECM - Single-Stage Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1

Specification Highlights

SEER2
14.5
AFUE
80%
EER2
11.7

View More

LTL Delivery

This product weighs 352 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Features

The Goodman GSXN403010 GM9S800804BN CHPTA3630B4 central air and furnace kit is a comprehensive HVAC solution designed to provide reliable heating and cooling for your home. This kit includes a GSXN4 air conditioner, a GM9S80 furnace, and a CHPTA cased evaporator coil. Each component in this system is engineered for durability, efficiency, and ease of installation, making it a suitable choice for diverse climate conditions.

  • All-aluminum coil design for efficient heat transfer.
  • Factory-installed internal thermostatic expansion valve.
  • Heavy-gauge galvanized-steel cabinet with a durable finish.
  • Multi-speed ECM motor for precise temperature control.
  • Energy-efficient compressor enhances performance.
  • 10-year limited parts warranty upon registration.

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 air conditioner is a 2.5-ton cooling unit that operates at a 14.3 SEER2 efficiency rating. It features an all-aluminum evaporator coil to maximize surface area and facilitate effective heat transfer.

  • 2.5 tons of cooling capacity.
  • 14.3 SEER2 efficiency rating.
  • Energy-efficient single-stage compressor.
  • All-aluminum coil for enhanced durability.
  • Factory-installed filter drier to remove moisture and impurities.
  • Heavy-gauge galvanized-steel cabinet with powder-paint finish.

Goodman GM9S800804BN Gas Furnace

The Goodman GM9S800804BN is an 80k BTU gas furnace operating at 80% AFUE. This furnace is designed with an aluminized-steel tubular heat exchanger and a multi-speed ECM motor for dependable and efficient heating.

  • 80,000 BTU heating capacity.
  • 80% AFUE efficiency rating.
  • Multi-speed ECM blower motor.
  • Aluminized-steel tubular heat exchanger.
  • Self-diagnostic control board for reliable operation.
  • Quiet operation with low sound levels.

Goodman CHPTA3630B4 Cased Evaporator Coil

The Goodman CHPTA3630B4 is a cased evaporator coil designed for horizontal installations. It features a factory-installed internal thermostatic expansion valve to streamline installation and maintain ideal refrigerant flow.

  • 3.0 tons cooling capacity.
  • Factory-installed internal thermostatic expansion valve.
  • Foil-faced insulation to inhibit condensate formation.
  • UV-resistant thermoplastic drain pan with secondary drain connections.
  • All-aluminum coil design enhances efficiency.
  • ETL and AHRI certified for quality and performance.
Overview
SEER2
14.5
AFUE
80%
EER2
11.7
Capacity
2.5 Tons
Cooling BTU
30000
Heating BTU
80000
Maximum Air Flow
1600 CFM
Operating Mode
Heating and Cooling
Blower Motor Type
ECM Multi-Speed
Compressor Stages
Single Stage
Installation Location
Outdoor
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Product Height
39.5 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
Refrigerant Type
R-410A
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited 10 Years
Compressor Warranty
LIFETIME Years
Type
Gas Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Configuration
Upflow/Horizontal
Flue Connection Size
4 Inches
General Information
Product Line GM9S80
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Ultra Low NOx Emissions
No
Low NOx Emissions
No
Energy Star Listed
Yes
Modulating/Staging
Single Stage
Heat Exchanger Warranty
Lifetime Years
General Information
Product Line CHPTA
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Orientation
Horizontal
Installation Available
Yes
TXV Installed
Yes
Certifications
ETL, AHRI, ISO
Dimensional Information
17.5 Inch Cabinet Width, 30 Inch Width, 21 Inch Depth, 17.5 Inch Height
Product Weight
51 Pounds
Shipping Weight
66 Pounds
Parts Warranty
10 Limited Years
General Information
Cooling BTU 36000, Capacity 3.0 Tons
