Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GC9C800805CX CHPTA3026C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,687.00
$3,687.00

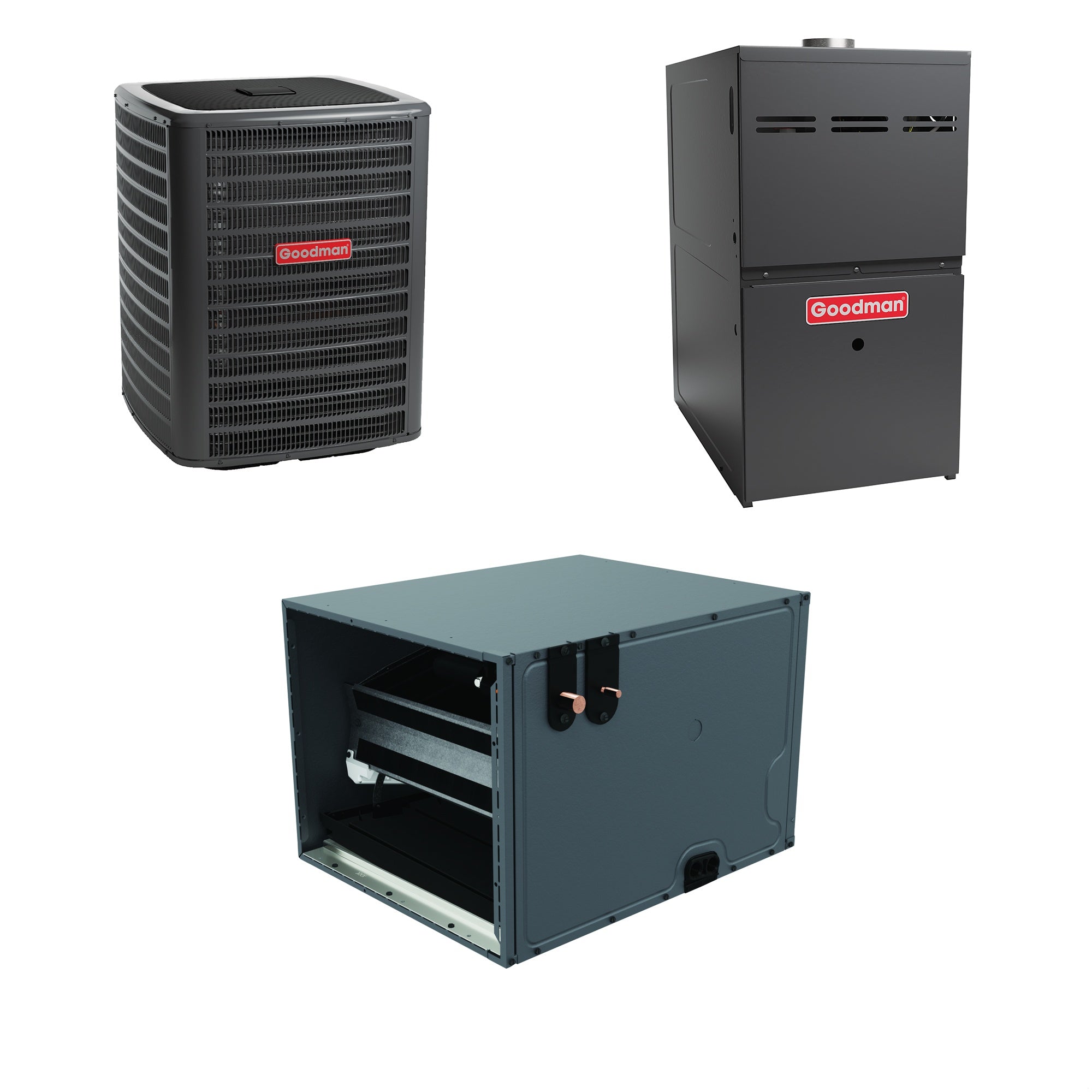

Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800805CX Furnace, 80% 80,000 Down/Horz 2-Stage, 9SPD ECM Quantity: 1
Goodman CHPTA3026C4 Evaporator Coil, 2.5 tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers

View More

LTL Delivery

This product weighs 373 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Overview

The Goodman GSXN403010 GC9C800805CX CHPTA3026C4 bundle is a comprehensive HVAC solution for your home. This bundle includes a 2.5 Ton GSXN4 air conditioner, an 80k BTU GC9C80 gas furnace, and a CHPTA cased evaporator coil. Each component has been designed to work seamlessly together for efficient performance and ease of installation.

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 Air Conditioner provides reliable cooling with its 2.5-ton capacity and 14.3 SEER2 efficiency rating. It features a single-stage compressor and uses R-410A refrigerant.

  • 2.5 Ton cooling capacity
  • 14.3 SEER2 efficiency
  • Single-stage compressor
  • R-410A refrigerant
  • Energy-efficient compressor
  • Factory-installed filter drier
  • Quiet operation

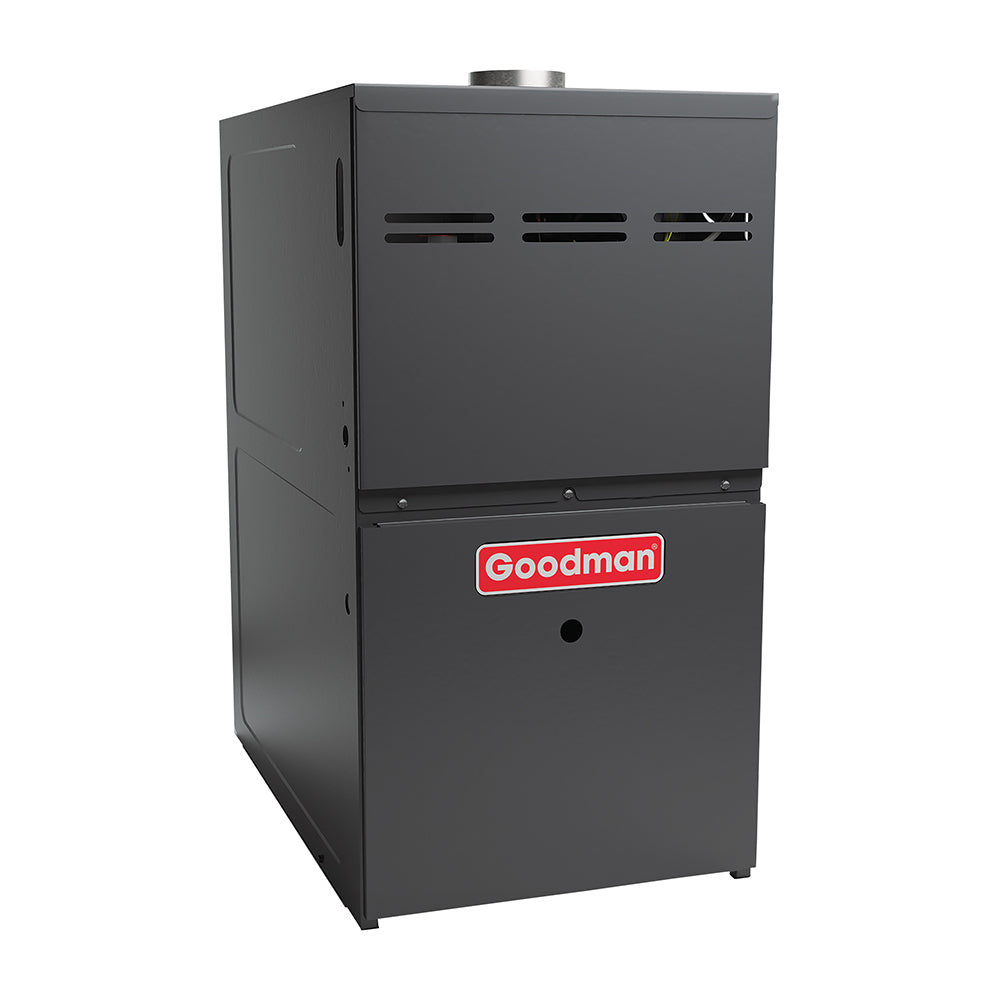

Goodman GC9C800805CX Gas Furnace

The GC9C80 gas furnace has an 80,000 BTU heating capacity with an 80% AFUE efficiency rating. It features a multi-speed ECM motor for precise temperature control and a quiet blower for minimal sound.

  • 80,000 BTU heating capacity
  • 80% AFUE efficiency
  • Multi-speed ECM motor
  • Quiet blower operation
  • Self-diagnostic control board
  • Durable aluminized steel heat exchanger

Goodman CHPTA3026C4 Cased Evaporator Coil

The CHPTA cased evaporator coil is designed to optimize heat transfer with its all-aluminum construction. It includes a factory-installed TXV for ideal refrigerant flow and foil-faced insulation for condensate management.

  • All-aluminum construction
  • Factory-installed TXV
  • Foil-faced insulation
  • UV-resistant thermoplastic drain pan

Product Highlights

This Goodman HVAC bundle includes all necessary components for a complete heating and cooling solution. The air conditioner, gas furnace, and evaporator coil are designed to provide efficient performance and durability, making it an ideal choice for homeowners looking to upgrade their HVAC system.

Specifications
Overview
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Product Depth
29 Inches
Product Width
29 Inches
Product Height
39 1/2 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Type
Gas Furnace
Product Line
GC9C80
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
AFUE
80%
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.32 Amps
Recommended Breaker Size
20 Amps
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
129 Pounds
Shipping Weight
129 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207254745
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Product Category
Furnace
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Nominal Minimum Cooling Capacity
30000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
49 Pounds
Shipping Weight
64 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
