Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GC9C800805CX CHPTA3630C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$3,709.00
$3,709.00
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800805CX Furnace, 80% 80,000 Down/Horz 2-Stage, 9SPD ECM Quantity: 1
Goodman CHPTA3630C4 Evaporator Coil 3 Ton Horizontal R-410A TXV Quantity: 1

Specification Highlights

AFUE
80 %
Capacity
2.5 Tons
Cooling Capacity
28400 BTU

View More

LTL Delivery

This product weighs 379 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

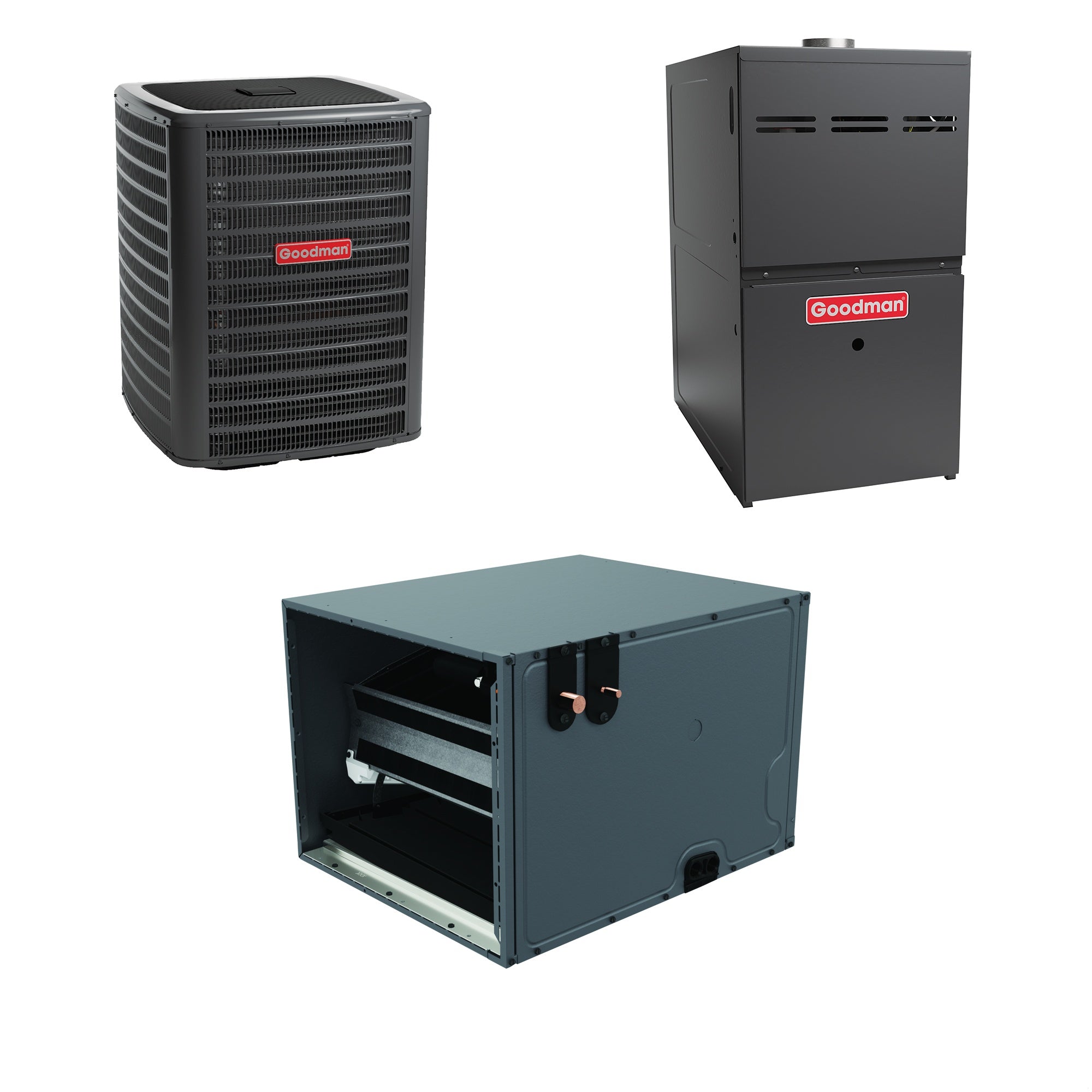

The Goodman GSXN403010 GC9C800805CX CHPTA3630C4 Bundle System

The Goodman GSXN403010 GC9C800805CX CHPTA3630C4 air conditioner and furnace bundle is a complete HVAC solution for your home. This bundle includes the Goodman GSXN4 air conditioner, the GC9C80 gas furnace, and the CHPTA evaporator coil. These components work together to deliver efficient and reliable heating and cooling for your space.

  • Includes air conditioner, furnace, and evaporator coil
  • Designed for ease of installation and durability
  • Offers both heating and cooling capabilities
  • Suitable for most regions

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton air conditioner that operates with a 14.3 SEER2 rating, utilizing R-410A refrigerant. Its coil is made of copper tubing paired with aluminum fins to maximize efficiency. The unit is equipped with a factory-installed filter drier to remove moisture and impurities, ensuring longevity and optimal performance. The heavy-gauge galvanized steel cabinet with a durable powder-paint finish protects the unit from harsh weather conditions.

  • 2.5-ton capacity
  • 14.3 SEER2 rating
  • Operates with R-410A refrigerant
  • Durable galvanized steel cabinet

Product Highlights

Features energy-efficient compressor and single-stage operation.

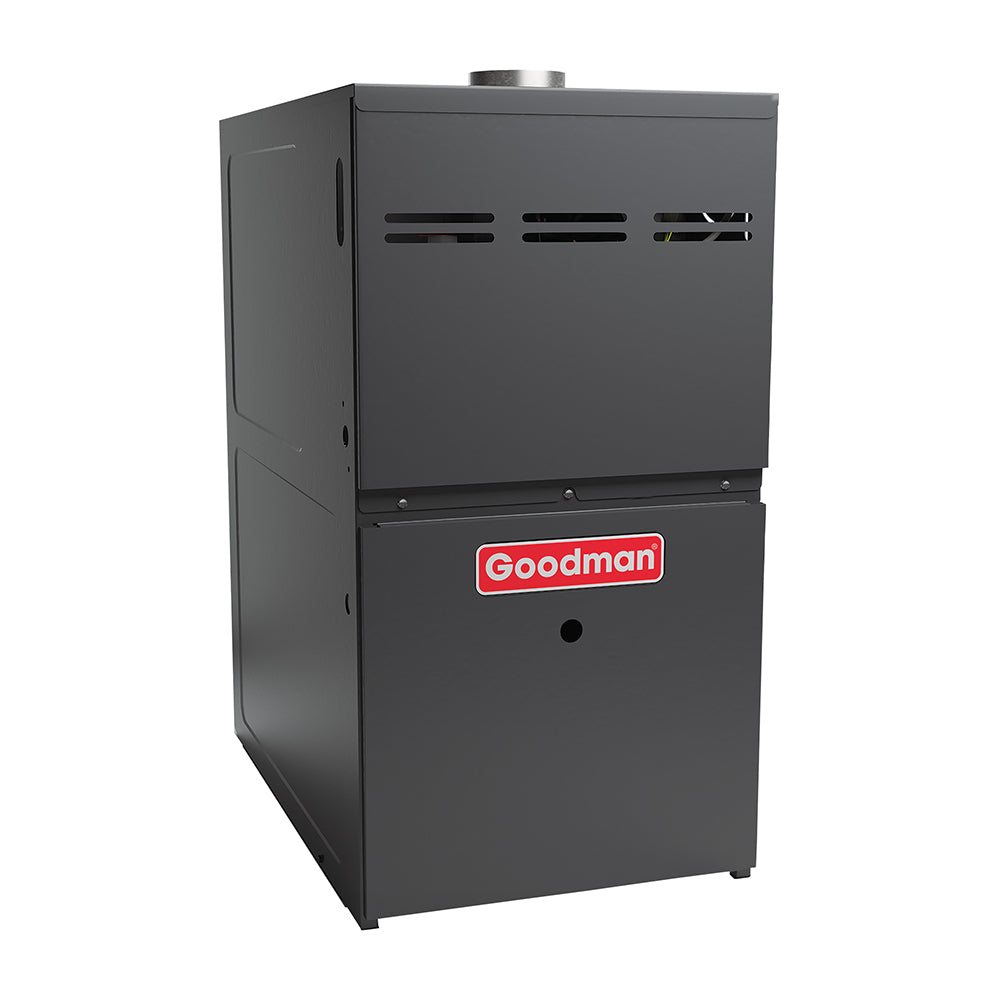

The GC9C800805CX Gas Furnace

The GC9C800805CX furnace from Goodman provides 80,000 BTU of heat with an 80% AFUE rating. It includes a tubular heat exchanger made from aluminized steel, ensuring efficient heat transfer and durability. The multi-speed ECM motor offers precise temperature control, reducing energy consumption. The furnace also features a self-diagnostic control board that continuously monitors system performance.

  • 80,000 BTU heating capacity
  • 80% AFUE rating
  • Includes multi-speed ECM motor
  • Self-diagnostic control board

Product Highlights

Ensures efficient heating with advanced heat exchanger and quiet operation.

The CHPTA3630C4 Cased Evaporator Coil

The CHPTA3630C4 is a horizontal cased evaporator coil with a 3-ton cooling capacity. This coil uses an all-aluminum design, including fins and grooved tubes to maximize surface area and heat transfer. It is equipped with a factory-installed thermostatic expansion valve for optimal refrigerant flow and efficiency. The coil is also insulated with foil-faced material to prevent condensate formation and features a UV-resistant thermoplastic drain pan.

  • 3-ton cooling capacity
  • All-aluminum design
  • Factory-installed thermostatic expansion valve
  • Foil-faced insulation

Product Highlights

Maximizes cooling efficiency with advanced design and materials.

Overview
AFUE
80 %
Capacity
2.5 Tons
Cooling Capacity
28400 BTU
EER2
12.0
Heating BTU
80000
Maximum Air Flow
2000 CFM
SEER2
14.5
Product Weight
340 Pounds
Shipping Weight
379 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Air Conditioning Condensers
GSXN4
Electrical Data Phase
1
Electrical Data Voltage
208/230 Volts
Performance Cooling BTU
30000
Product Depth
29 Inches
Product Width
29 Inches
Product Height
39 1/2 Inches
Product Weight
156 Pounds
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Frequency
60 Hz
Energy Star Listed
No
Warranty Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
Gas Furnace
GC9C80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Performance AFUE
80 %
Performance Heating BTU
80000
Low Fire Input
56000 BTU
High Fire Input
80000 BTU
Performance Low Fire Output
44800 BTU
Performance High Fire Output
64000 BTU
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
129 Pounds
Shipping Weight
129 Pounds
Multi-Speed ECM Motor
Yes
Warranty Heat Exchanger Warranty
Lifetime Years
Horizontal Evaporator Coil
CHPTA
Performance Capacity
3.0 Tons
Cooling BTU
36000
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
55 Pounds
Shipping Weight
70 Pounds
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cased
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
TXV Installed
Yes
Warranty Parts Warranty
10 Limited Years
