Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GC9C800804BX CAPTA3026B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,667.00
$3,667.00
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800804BX Downflow, Horizontal Left and Horizontal Right Two Stage Gas Furnace 80000 BTU Quantity: 1
Goodman CAPTA3026B4 CAPTA Series 2.5 Ton Upflow/Downflow Cased Coil Painted Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Air Conditioner Package
Cooling Capacity
2.5 Tons
Heating BTU
80000

View More

LTL Delivery

This product weighs 351 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

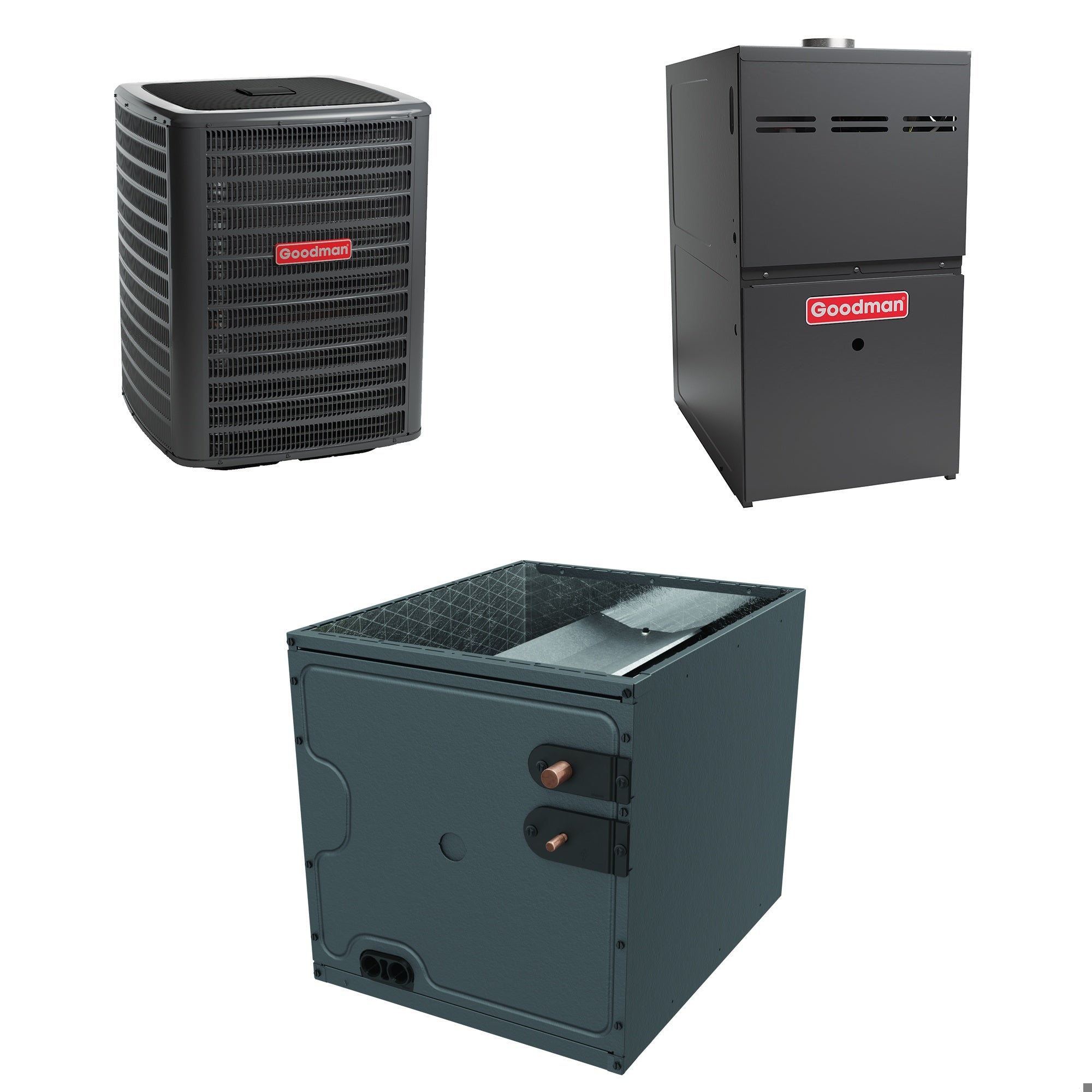

The Goodman GSXN403010 GC9C800804BX CAPTA3026B4 Bundle System

The Goodman GSXN403010 GC9C800804BX CAPTA3026B4 is a comprehensive HVAC solution designed to upgrade your homes heating and cooling system. This bundle includes a GSXN4 air conditioner, a GC9C80 furnace, and a cased CAPTA evaporator coil. It is designed to cater to regions with moderate cooling demands and harsh winters, offering a multi-speed furnace for enhanced comfort during colder months. Each component aims at ease of installation and durability, ensuring both immediate and long-term value for users.

  • Bundle includes air conditioner, furnace, and evaporator coil
  • Designed for areas with moderate cooling and harsh winters
  • Focus on ease of installation and durability
  • Provides upfront and long-term value

Features

The components in this bundle are designed to work seamlessly together, providing an efficient and reliable HVAC solution for your home. Individual sections below highlight the specific features of each component.

The Goodman GSXN403010 Air Conditioner

The GSXN403010 is a key component of the Goodman bundle, providing efficient cooling for your home.

  • Energy-efficient compressor for reliable refrigerant flow
  • All-aluminum evaporator coil with sine fins and grooved tubes to maximize heat transfer
  • Factory-installed filter drier to remove moisture and impurities
  • Heavy-gauge galvanized-steel cabinet with 500-hour salt-spray approval

Product Highlights

The Goodman GSXN403010 air conditioner offers efficient cooling performance combined with durability and ease of installation.

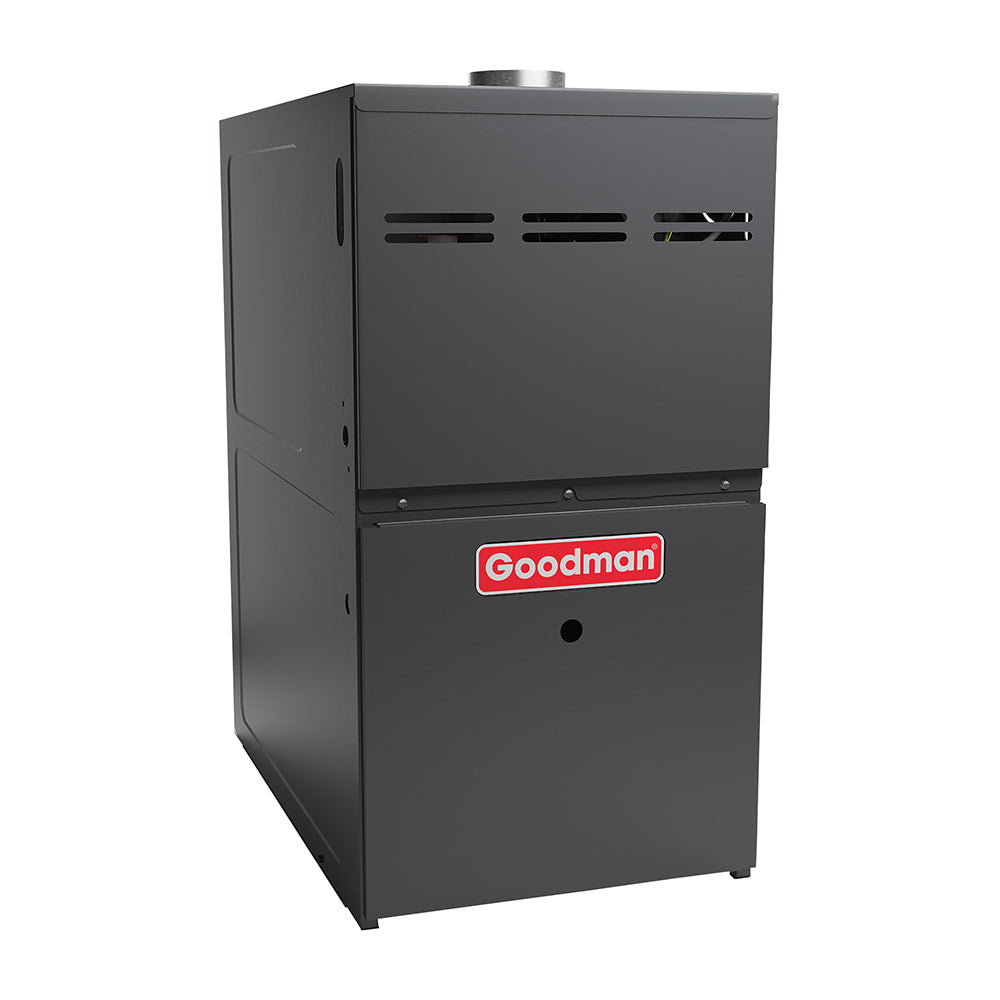

The GC9C800804BX Gas Furnace

The GC9C800804BX furnace is designed to provide reliable heating during the cold months.

  • Advanced tubular heat exchanger design with aluminized steel for efficient heat transfer
  • Multi-speed ECM blower motor for precise temperature control and reduced utility bills
  • Quiet operation with low sound levels from blower and gas valve
  • Self-diagnostic control board for quick troubleshooting

Product Highlights

The GC9C800804BX gas furnace ensures efficient heat transfer, quiet operation, and easy diagnostics, enhancing overall system reliability.

The CAPTA3026B4 Cased Evaporator Coil

The CAPTA3026B4 evaporator coil is a crucial element in the Goodman bundle, ensuring efficient cooling performance.

  • All-aluminum construction with sine fins and grooved tubes
  • Internal thermostatic expansion valve for optimized refrigerant flow
  • Foil-faced insulation to prevent condensate formation
  • Rust-resistant thermoplastic drain pan

Product Highlights

The CAPTA3026B4 cased evaporator coil is designed for durability, efficient cooling, and easy maintenance.

Specifications
Overview
Product Category
Furnace & Air Conditioner Package
Cooling Capacity
2.5 Tons
Heating BTU
80000
SEER2
14.3
EER2
11.7
AFUE
80 %
Maximum Air Flow
1600 CFM
Product Depth
29 Inches
Product Width
29 Inches
Product Height
39 1/2 Inches
Product Weight
327 Pounds
Shipping Weight
361 Pounds
Compressor Warranty
LIFETIME Years
Parts Warranty
Limited* 10 Years
AHRI Reference Number
208791870
Condenser Type
GSXN4
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
Cooling BTU
30000
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
AHRI Certified
Yes
Gas Furnace Type
GC9C80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Multi-Speed
Configuration
Downflow/Horizontal
Modulating/Staging
Two Stage
AFUE
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
1600 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.45 Amps
Recommended Breaker Size
15 Amps
Cabinet Width
17 1/2 Inches
Flue Connection Size
4 Inches
Product Height
33 3/8 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Product Weight
121 Pounds
Shipping Weight
121 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
207254744
Heat Exchanger Warranty
Lifetime Years
Evaporator Coil Type
CAPT
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
50 Pounds
Shipping Weight
60 Pounds
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
