Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GM9S960603BN CAPTA3626B4
Availability: Out Of Stock
Free Shipping
$4,500.00
$4,500.00

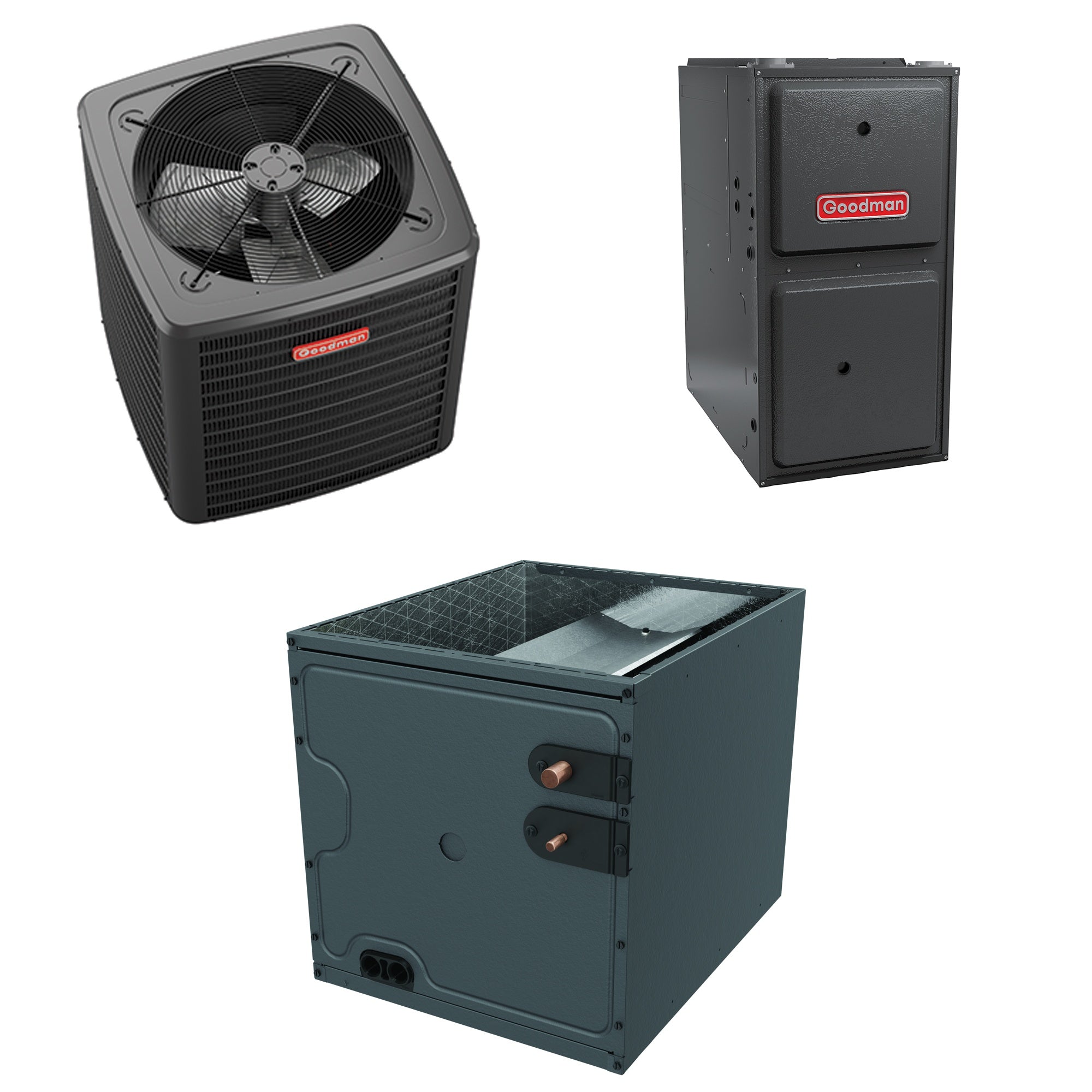

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GM9S960603BN GM9S96 96% AFUE - 60,000 BTU - Horizontal Left or Right/Upflow - ECM - Single-Stage Quantity: 1
Goodman CAPTA3626B4 Evaporator Coil, 3 Tons, Upflow/Downflow, R-410A Quantity: 1
Manuals:

Specification Highlights

Weight
347 Pounds
Length
29 Inches
Width
29 Inches

View More

LTL Delivery

This product weighs 354 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Overview

The Goodman GSZB403010 GM9S960603BN CAPTA3626B4 heat pump and furnace kit is designed to modernize your homes HVAC system effectively. This bundle includes a GSZB4 air conditioner, a GM9S96 furnace, and a cased CAPTA evaporator coil, making it suitable for various regions. All components focus on ease of installation and durability, ensuring both immediate and long-term value.

Features

  • Advanced Heat Exchanger Design
  • Quiet Comfort
  • Venting Options
  • Easy Integration
  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Condensate Management
  • Energy-Efficient Compressor
  • Smartshift Technology
  • Copper Tube and Enhanced Aluminum Fin Coil
  • Factory-Installed Suction-Line Accumulator
  • Factory-Installed Compressor Crankcase Heater
  • Factory-Installed High-Capacity Muffler
  • High and Low-Pressure Switches
  • Secure Cabinet
  • Heavy-Gauge Galvanized-Steel Cabinet
  • Extended Warranty

This unit is backed by Goodmans craftsmanship and offers a comprehensive comfort solution.

Goodman GSZB403010 Heat Pump

The Goodman GSZB403010 is a 2.5-ton heat pump with a 14.3 SEER2 efficiency rating. It uses R-410A refrigerant, and its single-stage compressor ensures efficient cooling and heating.

  • Capacity: 2.5 Tons
  • Cooling BTU: 30000
  • Heating Capacity: 30000 BTU
  • Max Sound Level: 75 dB

Goodman GM9S960603BN Gas Furnace

The GM9S960603BN is a 60k BTU gas furnace with a 96% AFUE rating. It uses a single-stage ECM multi-speed blower motor for efficient air circulation and quiet operation.

  • Heating BTU: 60000
  • High Fire Input: 60000 BTU
  • High Fire Output: 57660 BTU
  • Maximum Air Flow: 1200 CFM

Goodman CAPTA3626B4 Evaporator Coil

The CAPTA3626B4 is a 3-ton cased evaporator coil designed for upflow/downflow configurations. It includes a factory-installed TXV for optimal refrigerant flow.

  • Cooling BTU: 36000
  • Cabinet Width: 17.5 Inches
  • Product Height: 26 Inches
  • Product Weight: 54 Pounds
  • Shipping Weight: 64 Pounds
Specifications
Overview
Weight
347 Pounds
Length
29 Inches
Width
29 Inches
Height
39.5 Inches
Brand
Goodman
Cooling Capacity
30000 BTU
Heating Capacity
60000 BTU
SEER2
14.3
AFUE
96%
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18.6 Amps
Recommended Breaker Size
30 Amps
Max Sound Level
75 dB
Product Line
GSZB4
Compressor Stages
Single Stage
Refrigerant Type
R-410A
Operating Mode
Heating and Cooling
Installation Location
Outdoor
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Energy Star Listed
No
